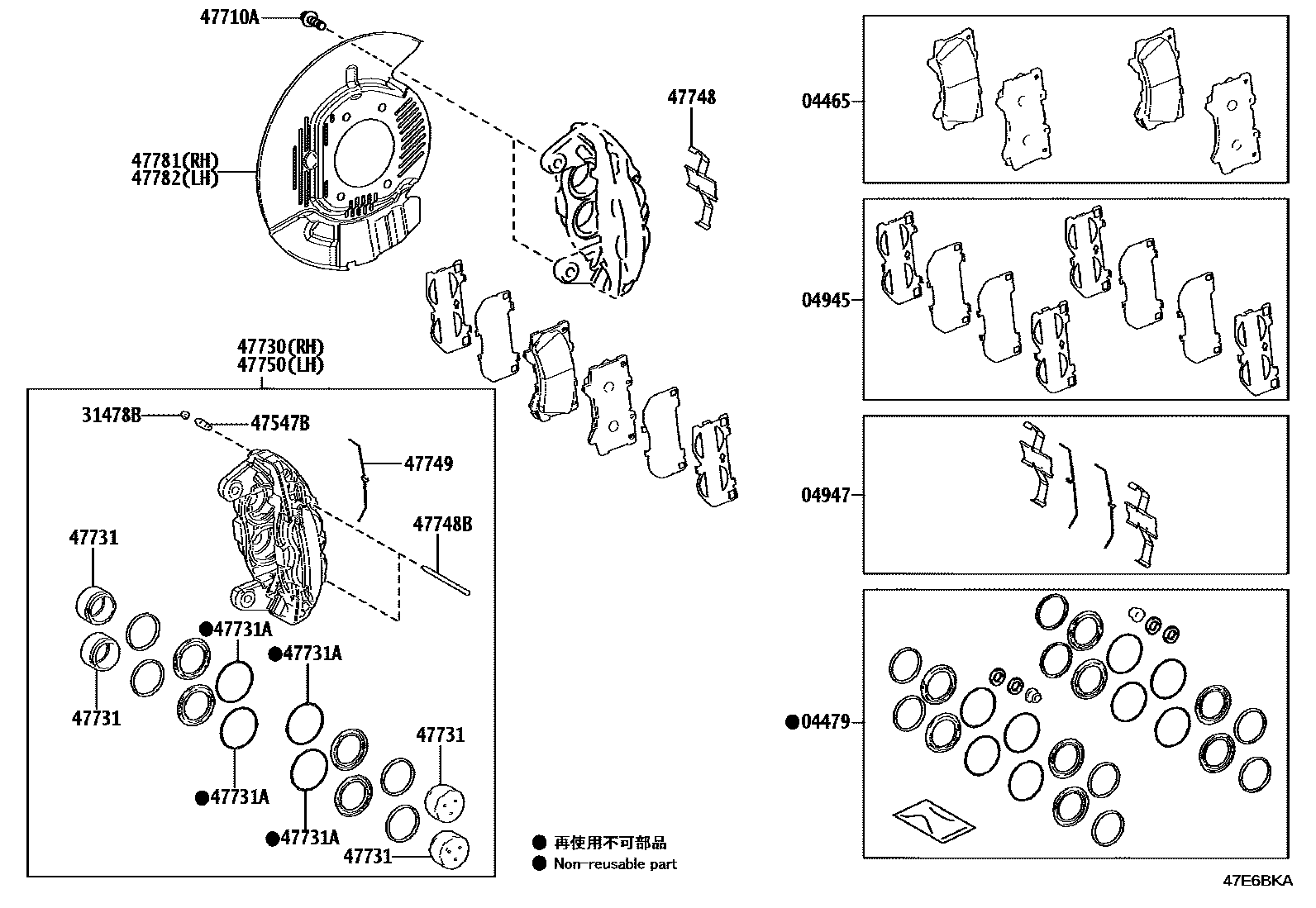

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60380iGDJ250,TRJ250202404

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60070iGDJ250202404

main04478-60100iTRJ250202404

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60100iGDJ250,TRJ250202404

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60150iGDJ250,TRJ250202404

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iGDJ250,TRJ250202404

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030×2iGDJ250,TRJ250202404

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14216×4iGDJ250,TRJ250202404

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60470iTRJ250202404

main47730-60480iGDJ250202404

47731PISTON, FRONT DISC BRAKE

main47731-60430×8iTRJ250202404

main47731-60440×8iGDJ250202404

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-53002×8iTRJ250202404

main90522-56003×8iGDJ250202404

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60440×2iGDJ250,TRJ250202404

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06024×4iGDJ250,TRJ250202404

47749CLIP, PIN HOLD

main47743-60280×2iGDJ250,TRJ250202404

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60470iTRJ250202404

main47750-60480iGDJ250202404

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60190iTRJ250202404

main47781-60200iGDJ250202404

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60210iTRJ250202404

main47782-60220iGDJ250202404

16 parts on this diagram · 1 diagram in section
