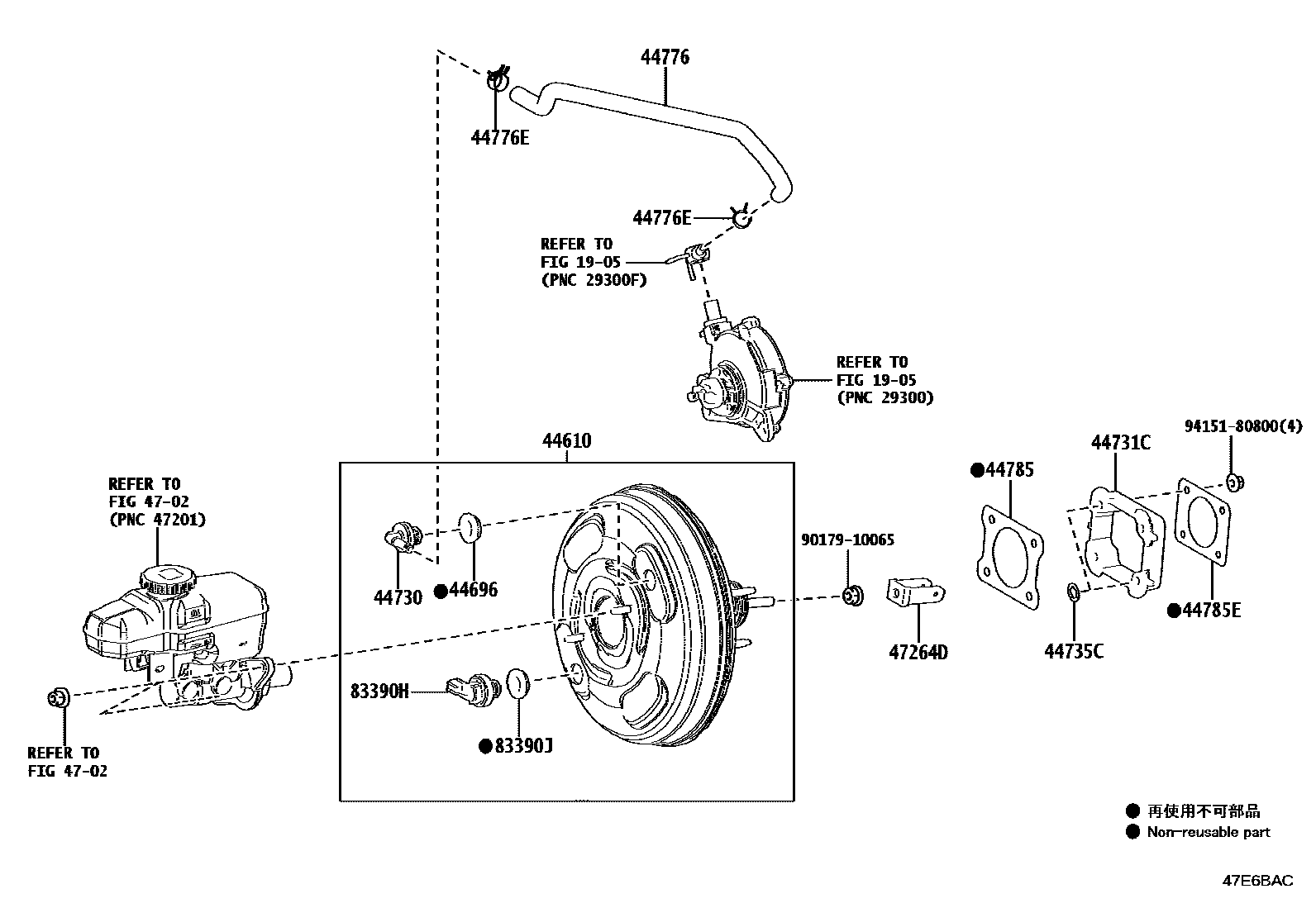

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-60A60iTRJ250202404

main44610-60A90iGDJ250202404

44696GROMMET, CHECK VALVE

main90480-24439iGDJ250202404

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iGDJ250,TRJ250202404

44731CBRACKET, BRAKE BOOSTER

main44731-60060iGDJ250,TRJ250202404

44735CRING, BOOSTER BRACKET STOPPER

main44735-30020iGDJ250,TRJ250202404

44776HOSE, BRAKE BOOSTER

main44776-60030iTRJ250202404

main44776-60050iGDJ250202404

44776ECLIP(FOR BRAKE BOOSTER HOSE)

main90467-16014iGDJ250,TRJ250202404

44785GASKET, BRAKE BOOSTER

main44785-12040iGDJ250,TRJ250202404

44785EGASKET, BRAKE BOOSTER, NO.2

main44785-47010iGDJ250,TRJ250202404

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-48020iGDJ250,TRJ250202404

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGDJ250202404

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iGDJ250202404

9017910065

main90179-10065

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
