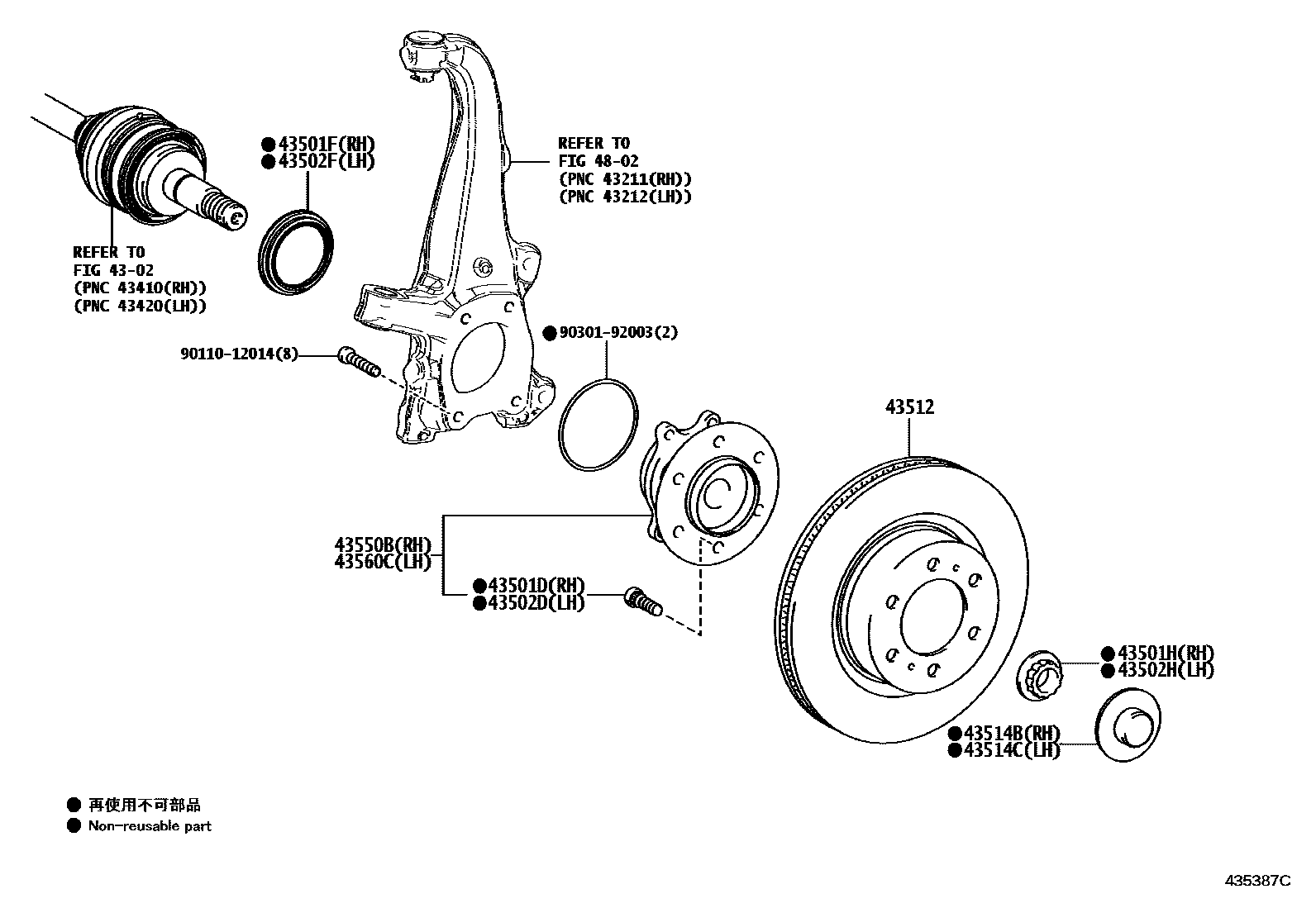

FRONT AXLE HUB

4302

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083iGDJ250,TRJ250202404

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90316-72002iGDJ250,TRJ250202404

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-28001iGDJ250,TRJ250202404

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083iGDJ250,TRJ250202404

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90316-72002iGDJ250,TRJ250202404

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-28001iGDJ250,TRJ250202404

43512DISC, FRONT

main43512-60281iTRJ250202404

main43512-60290iGDJ250202404

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-60030iGDJ250,TRJ250202404

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-60030iGDJ250,TRJ250202404

43550BHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, RH

main43550-60050iGDJ250,TRJ250202404

43560CHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, LH

main43550-60050iGDJ250,TRJ250202404

4802

9011012014

main90110-12014

9030192003

main90301-92003

15 parts on this diagram · 1 diagram in section
