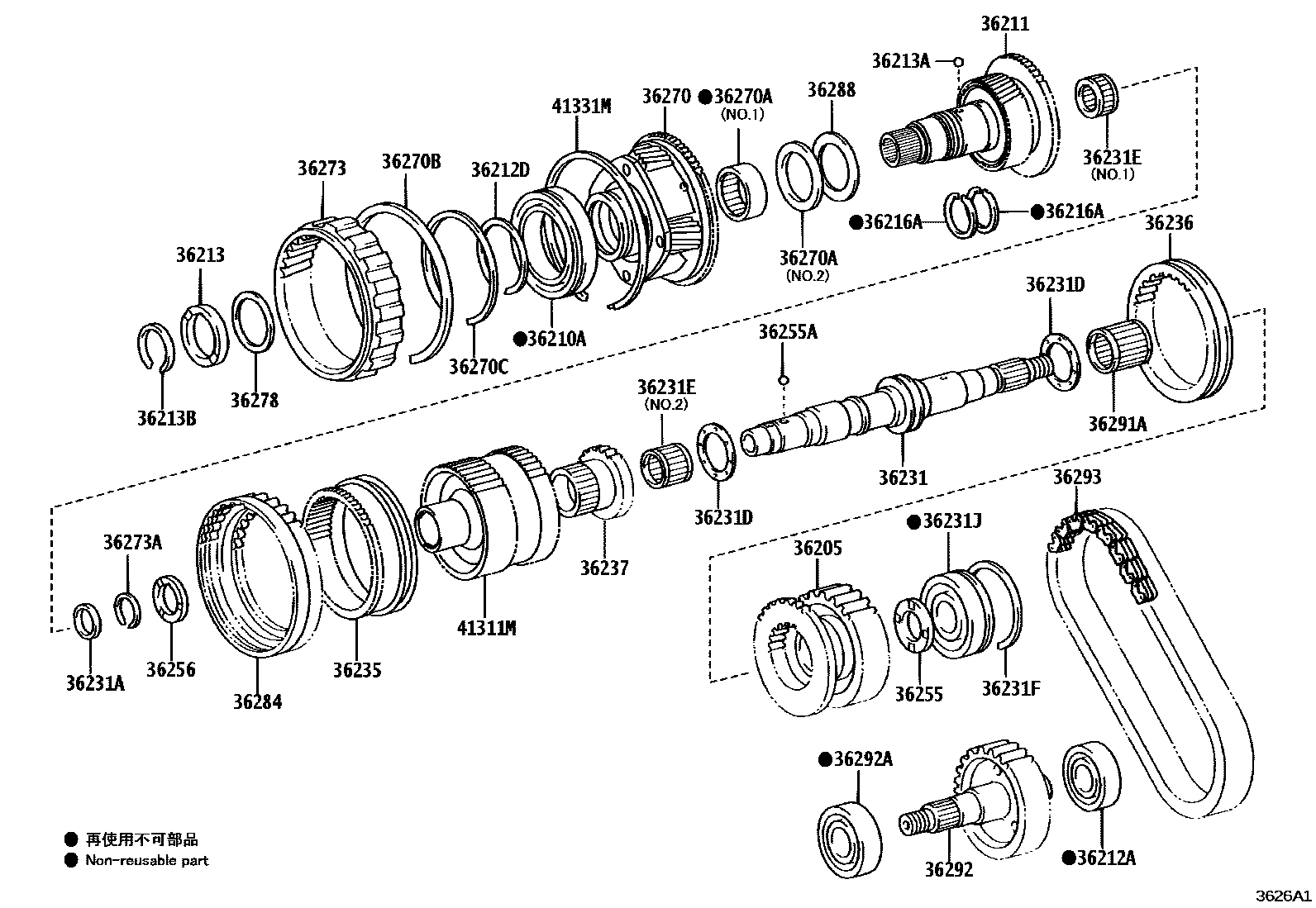

TRANSFER GEAR
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
36213STOPPER, TRANSFER INPUT GEAR
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36231SHAFT, TRANSFER OUTPUT, REAR
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
36231DWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
36270GEAR ASSY, TRANSFER LOW PLANETARY
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36273GEAR, TRANSFER LOW PLANETARY RING
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
36288RACE, TRANSFER THRUST BEARING, NO.1
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292SPROCKET, TRANSFER DRIVEN
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36293CHAIN, TRANSFER FRONT DRIVE
41311MCASE, CENTER DIFFERENTIAL
41331MRING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR)
36 parts on this diagram · 1 diagram in section
