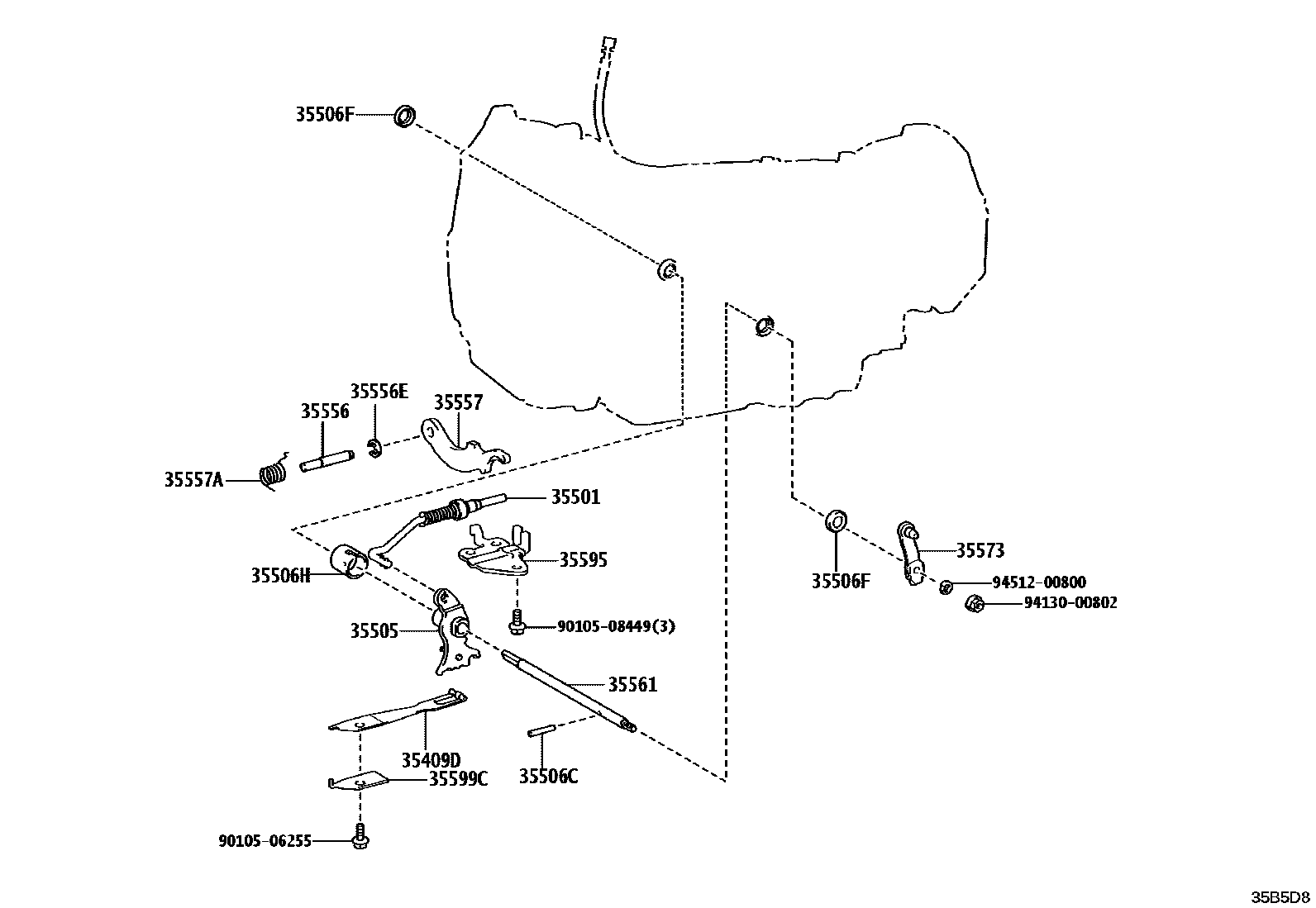

THROTTLE LINK & VALVE LEVER (ATM)

0001 1AL80F 0002 1AC60F

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-22050iGDJ250202404

35501ROD SUB-ASSY, PARKING LOCK

main35501-60060iGDJ250202404

main35501-71020iTRJ250202404

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-26040iTRJ250202404

main35505-60120iGDJ250202404

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGDJ250,TRJ250202404

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGDJ250,TRJ250202404

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGDJ250,TRJ250202404

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGDJ250,TRJ250202404

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGDJ250,TRJ250202404

35557PAWL, PARKING LOCK

main35557-60070iGDJ250202404

main35557-71010iTRJ250202404

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGDJ250,TRJ250202404

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGDJ250,TRJ250202404

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-35100iTRJ250202404

main35573-60050iGDJ250202404

35595BRACKET, PARKING LOCK PAWL

main35595-60060iGDJ250202404

main35595-71010iTRJ250202404

35599CCOVER, MANUAL DETENT SPRING

main35599-22050iGDJ250202404

9010506255

main90105-06255

9010508449

main90105-08449

9413000802

main94130-00802

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
