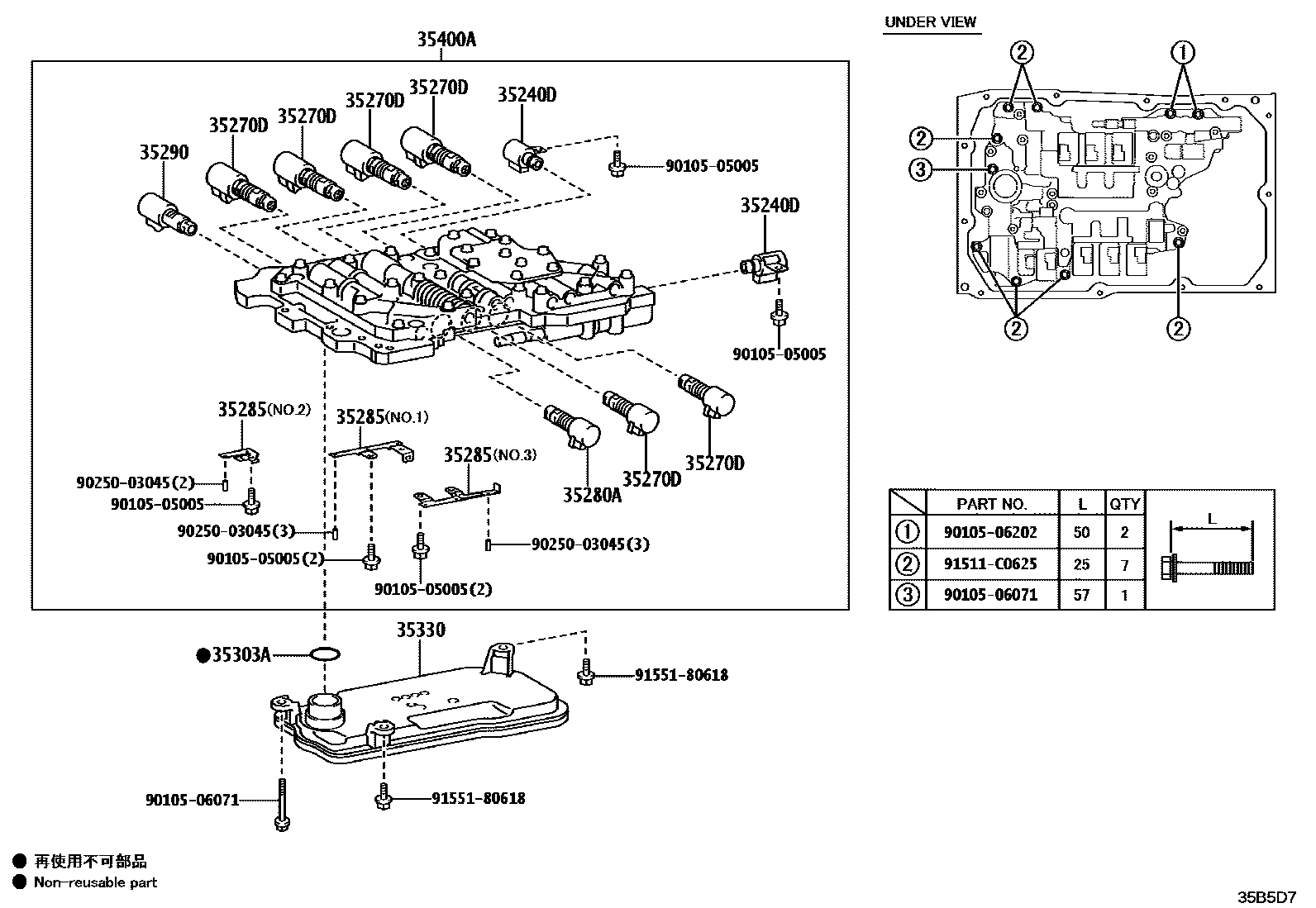

VALVE BODY & OIL STRAINER (ATM)

0001 1AL80F 0002 1AL80F 0003 1AC60F 0004 1AC60F

35240DVALVE, SOLENOID(SL)

main35240-60060iGDJ250202404

main35240-71010iTRJ250202404

35270DVALVE, SOLENOID(SL)

main35270-60090iGDJ250202404

35280AVALVE, SOLENOID(SLU)

main35280-60030iGDJ250202404

main35280-71020iTRJ250202404

35285PLATE, SOLENOID LOCK

main35285-60070iGDJ250202404

main35285-60080iGDJ250202404

main35285-60090iGDJ250202404

main35285-71010iTRJ250202404

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-60080iGDJ250202404

35303ARING, O (FOR OIL STRAINER)

main90301-27010iGDJ250,TRJ250202404

35330STRAINER ASSY, VALVE BODY OIL

main35330-60140iGDJ250202404

main35330-71010iTRJ250202404

35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID

main35400-60600iGDJ250202404

9010505005

main90105-05005

9010506071

main90105-06071

9010506202

main90105-06202

9025003045

main90250-03045

91511C0625

main91511-C0625

9155180618

main91551-80618

14 parts on this diagram · 4 diagrams in section
