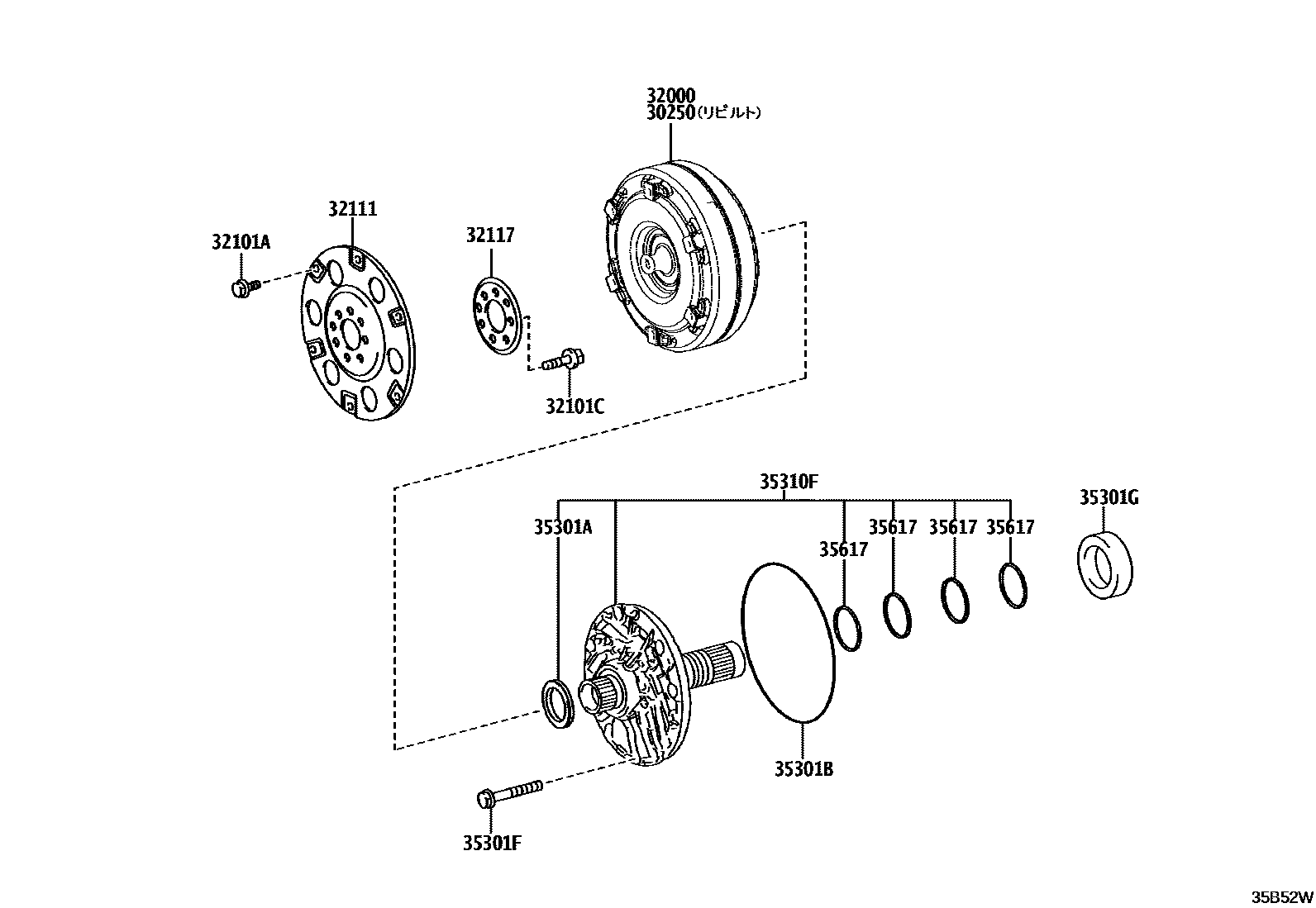

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AL80F 0002 1AC60F

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-60410iGDJ250202404

main30250-71050iTRJ250202404

32000CONVERTER ASSY, TORQUE

main32000-60410iGDJ250202404

main32000-71050iTRJ250202404

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTRJ250202404

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iGDJ250202404

main90105-10546iGDJ250202404

main90119-09026iTRJ250202404

main90119-09027iTRJ250202404

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTRJ250202404

main90105-13015iGDJ250202404

32111PLATE, PUMP IMPELLER DRIVE

main32111-71010iGDJ250202404

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTRJ250202404

main32117-60050iGDJ250202404

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-71010iTRJ250202404

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38101iTRJ250202404

main90311-43014iGDJ250202404

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGDJ250,TRJ250202404

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGDJ250,TRJ250202404

35301GBEARING,NEEDLE ROLLER

main90364-49008iGDJ250202404

35310FPUMP ASSY, FRONT OIL

main35310-60140iGDJ250202404

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030iTRJ250202404

main35617-60130iGDJ250202404

14 parts on this diagram · 2 diagrams in section
