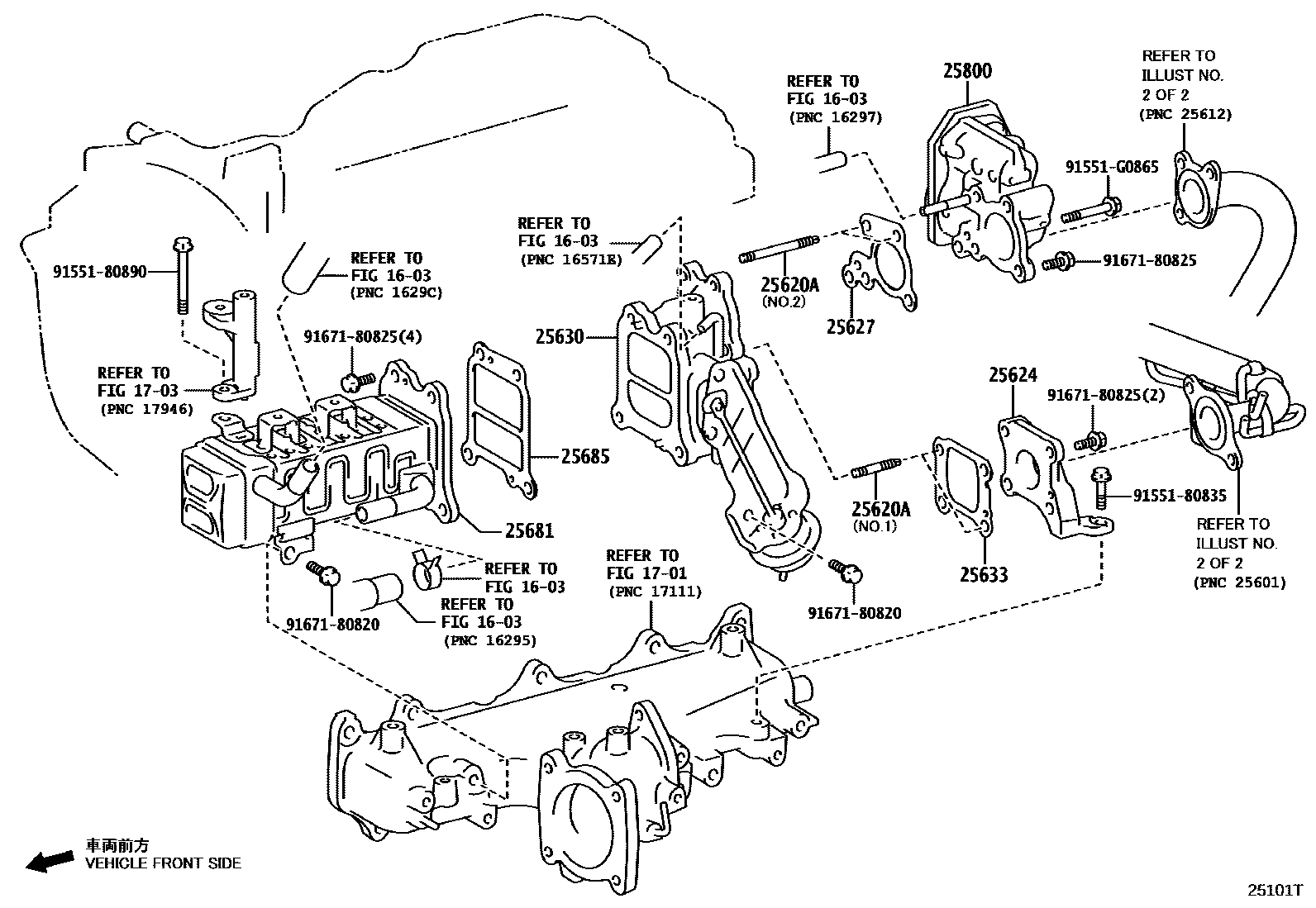

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

1703

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i1GDFTV..GDJ250¥80202404

main90126-08064i1GDFTV..GDJ250¥120202404

25624ADAPTER, EGR VALVE

main25624-11010i1GDFTV..GDJ250¥2,240202404

25627GASKET, EGR VALVE

main25627-11050i1GDFTV..GDJ250¥270202404

25630VALVE ASSY, EGR, NO.2

main25630-11012i1GDFTV..GDJ250¥31,900202404

25633GASKET, EGR VALVE

main25633-11010i1GDFTV..GDJ250¥410202404

25681COOLER, EGR, NO.1

main25681-35010i1GDFTV..GDJ250¥32,400202404

25685GASKET, EGR COOLER, NO.1

main25685-11010i1GDFTV..GDJ250¥410202404

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-11010i1GDFTV..GDJ250¥20,200202404

9155180835

main91551-80835¥80

9155180890

main91551-80890¥120

91551G0865

main91551-G0865¥100

9167180820

main91671-80820¥80

9167180825

main91671-80825¥80

16 parts on this diagram · 2 diagrams in section
