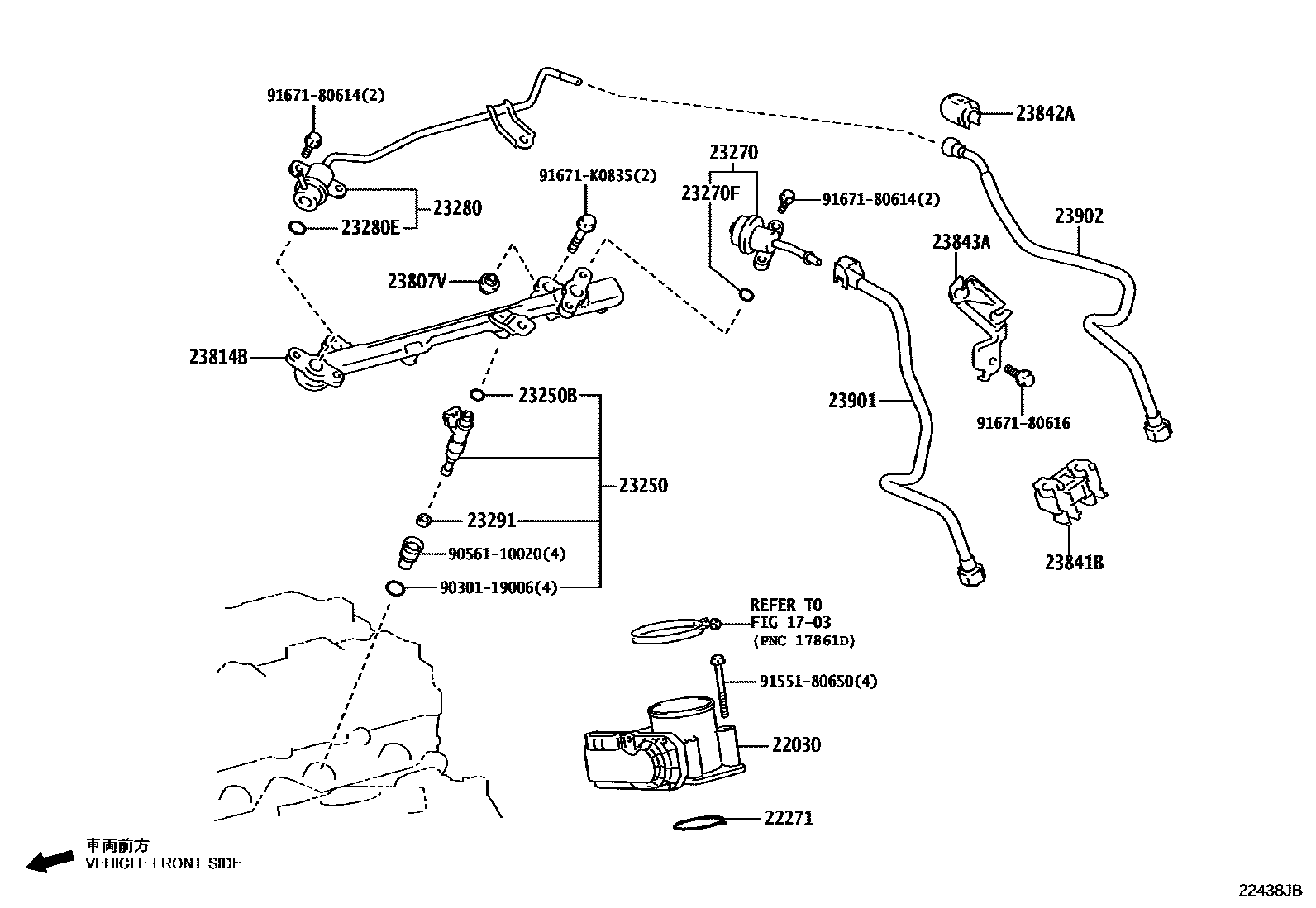

FUEL INJECTION SYSTEM

1703

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-75040i2TRFE..TRJ250202404

22271GASKET, THROTTLE BODY

main22271-75070i2TRFE..TRJ250202404

23250INJECTOR ASSY, FUEL

main23209-79215×4i2TRFE..TRJ250202404

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2TRFE..TRJ250202404

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-75050i2TRFE..TRJ250202404

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2TRFE..TRJ250202404

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75140i2TRFE..TRJ250202404

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i2TRFE..TRJ250202404

23291INSULATOR, INJECTOR VIBRATION

main23291-73010×4i2TRFE..TRJ250202404

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-75020×2i2TRFE..TRJ250202404

23814BPIPE, FUEL DELIVERY

main23814-75110i2TRFE..TRJ250202404

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-50020i2TRFE..TRJ250202404

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2TRFE..TRJ250202404

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-75030i2TRFE..TRJ250202404

23901TUBE SUB-ASSY, FUEL

main23901-75090i2TRFE..TRJ250202404

23902TUBE SUB-ASSY, FUEL

main23902-75021i2TRFE..TRJ250202404

9030119006

main90301-19006

9056110020

main90561-10020

9155180650

main91551-80650

9167180614

main91671-80614

9167180616

main91671-80616

91671K0835

main91671-K0835

23 parts on this diagram · 1 diagram in section
