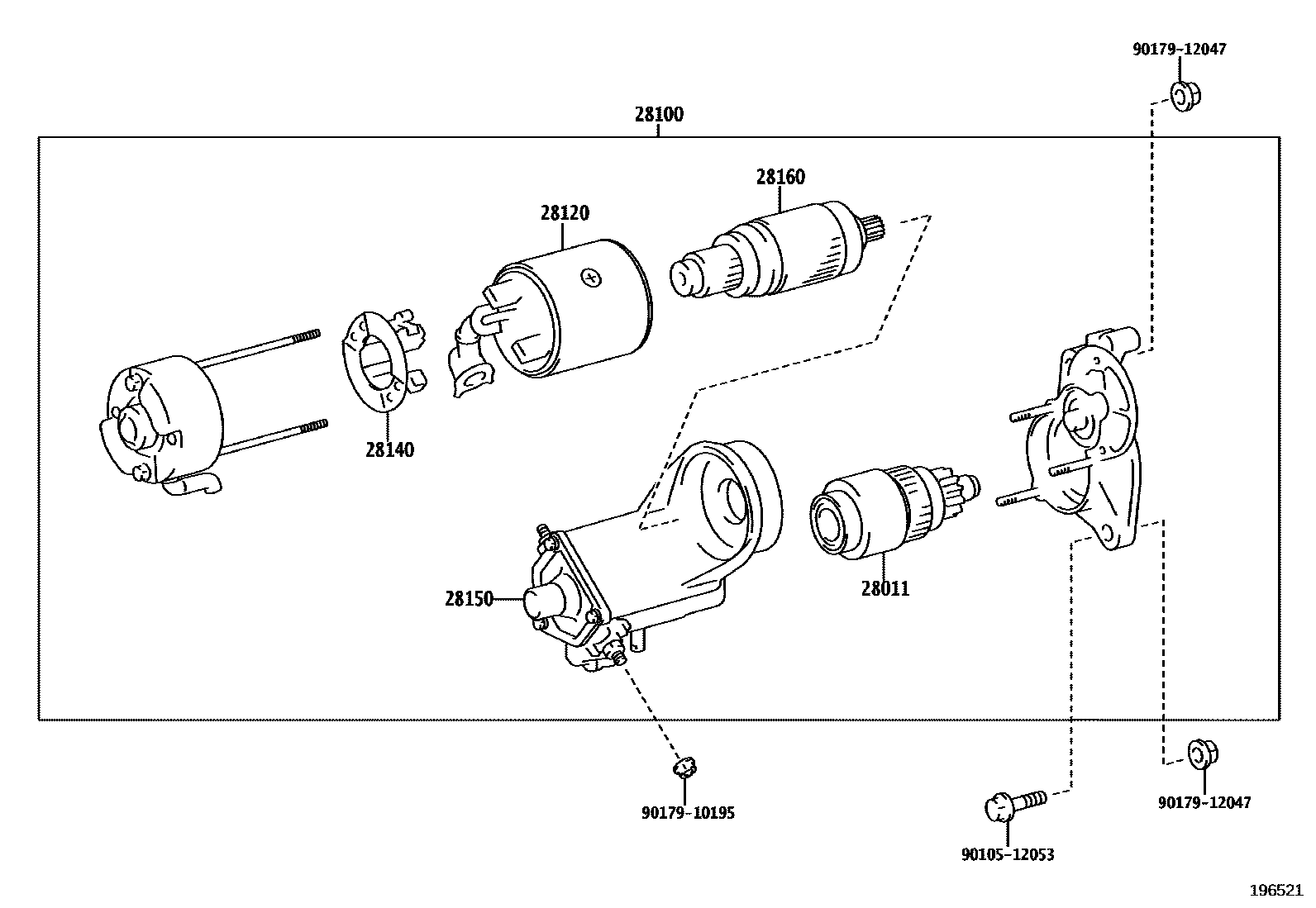

STARTER

0001 112V 2.7KW 0002 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30050i1GDFTV..GDJ250202404

main28011-75120i2TRFE..TRJ250202404

28100STARTER ASSY

main28100-11220i1GDFTV..GDJ250202404

main28100-75120i2TRFE..TRJ250202404-202412

main28100-75240i2TRFE..TRJ250202501

28120YOKE ASSY, STARTER

main28120-54380i2TRFE..TRJ250202404

main28120-67020i1GDFTV..GDJ250202404

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i2TRFE..TRJ250202404-202501

main28140-62030i2TRFE..TRJ250202501

main28140-77090i1GDFTV..GDJ250202404

28150SWITCH ASSY, MAGNET STARTER

main28150-30050i1GDFTV..GDJ250202404

main28150-75120i2TRFE..TRJ250202404

28160ARMATURE ASSY, STARTER

main28160-54140i1GDFTV..GDJ250202404

main28160-75120i2TRFE..TRJ250202404

9010512053

main90105-12053

9017910195

main90179-10195

9017912047

main90179-12047

9 parts on this diagram · 2 diagrams in section
