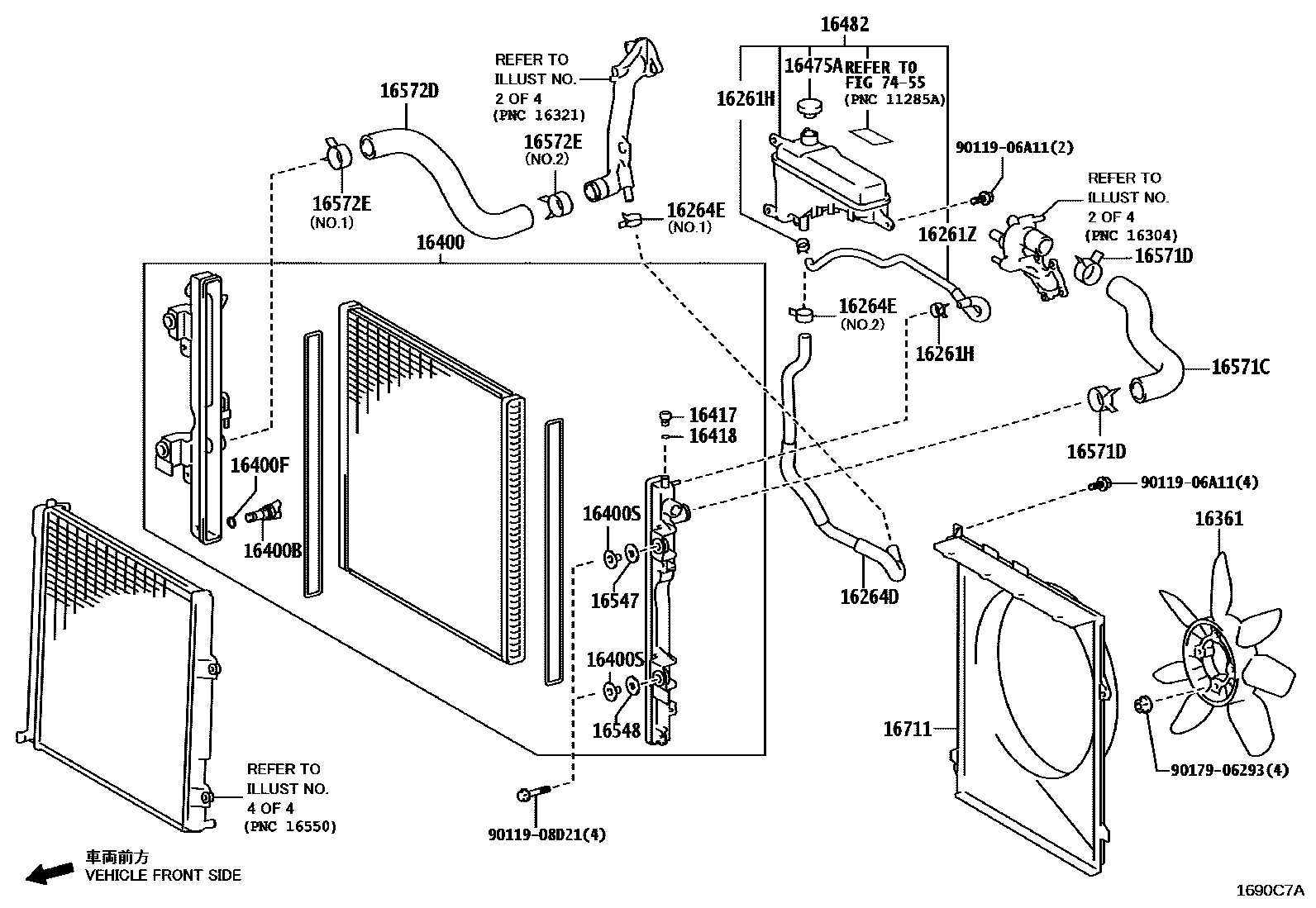

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-75270i2TRFE..TRJ250202404

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main96138-41901i1GDFTV..GDJ250202404

16261ZHOSE, WATER BY-PASS, NO.1

main16261-11140i1GDFTV..GDJ250202404

16264HOSE, WATER BY-PASS, NO.2

main16264-11160i1GDFTV..GDJ250202404

main16264-75220i2TRFE..TRJ250202404

16264DHOSE, WATER BY-PASS, NO.2

main16264-11131i1GDFTV..GDJ250202404

16264ECLIP(FOR WATER BY-PASS HOSE NO.2)

main96138-42101i1GDFTV..GDJ250202404

main96138-42501i1GDFTV..GDJ250202404

16361FAN

main16361-67020i1GDFTV..GDJ250202404

main16361-75021i2TRFE..TRJ250202404

16400RADIATOR ASSY

main16400-11B20i1GDFTV..GDJ250202404

main16400-75710i2TRFE..TRJ250202404

16400BPLUG, RADIATOR DRAIN COCK

main16417-30170i1GDFTV..GDJ250202404

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1GDFTV..GDJ250202404

16400SCOLLAR(FOR RADIATOR)

main16445-31570i1GDFTV..GDJ250202404

16417COCK

main16417-51030i1GDFTV..GDJ250202404

16418PACKING

main16418-51030i1GDFTV..GDJ250202404

16475ACAP, RESERVE TANK

main16475-28140i1GDFTV..GDJ250202404

16482TANK SUB-ASSY, RADIATOR RESERVE

main16480-11150i1GDFTV..GDJ250202404

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-50381i1GDFTV..GDJ250202404

main16547-70730i2TRFE..TRJ250202404

16548BUSH, RADIATOR SUPPORT, NO.2

main16548-50370i1GDFTV..GDJ250202404

16571CHOSE, RADIATOR, NO.1

main16571-11340i1GDFTV..GDJ250202404

main16571-75310i2TRFE..TRJ250202404

16571DCLIP, RADIATOR HOSE, NO.1

main96136-44801i1GDFTV..GDJ250202404

16572DHOSE, RADIATOR, NO.2

main16572-11330i1GDFTV..GDJ250202404

main16572-75340i2TRFE..TRJ250202404

16572ECLIP, RADIATOR HOSE, NO.2

main96136-44301i2TRFE..TRJ250202404

main96136-44801i1GDFTV..GDJ250202404

16711SHROUD, FAN

main16711-11300i1GDFTV..GDJ250202404

main16711-75280i2TRFE..TRJ250202404

7455

9011906A11

main90119-06A11

9011908D21

main90119-08D21

9017906293

main90179-06293

26 parts on this diagram · 6 diagrams in section
