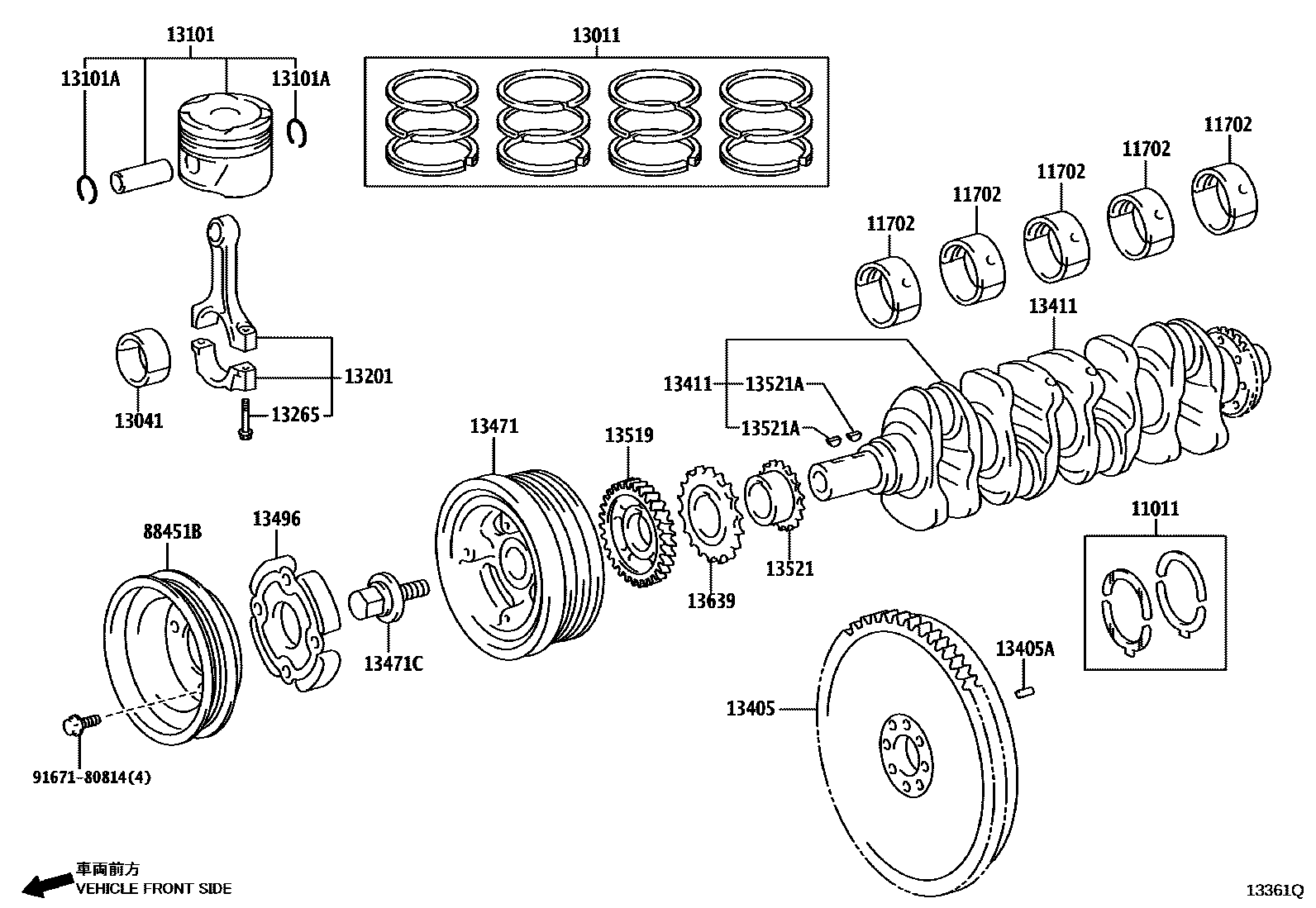

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11702BEARING SET, CRANKSHAFT
13011RING SET, PISTON
13041BEARING, CONNECTING ROD
13101PISTON SUB-ASSY, W/PIN
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13496COVER, CRANKSHAFT PULLY
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13639SPROCKET, BALANCESHAFT TIMING
88451BPULLEY, CRANKSHAFT(FOR VISCOUS HEATER)
9167180814
main91671-80814
20 parts on this diagram · 2 diagrams in section
