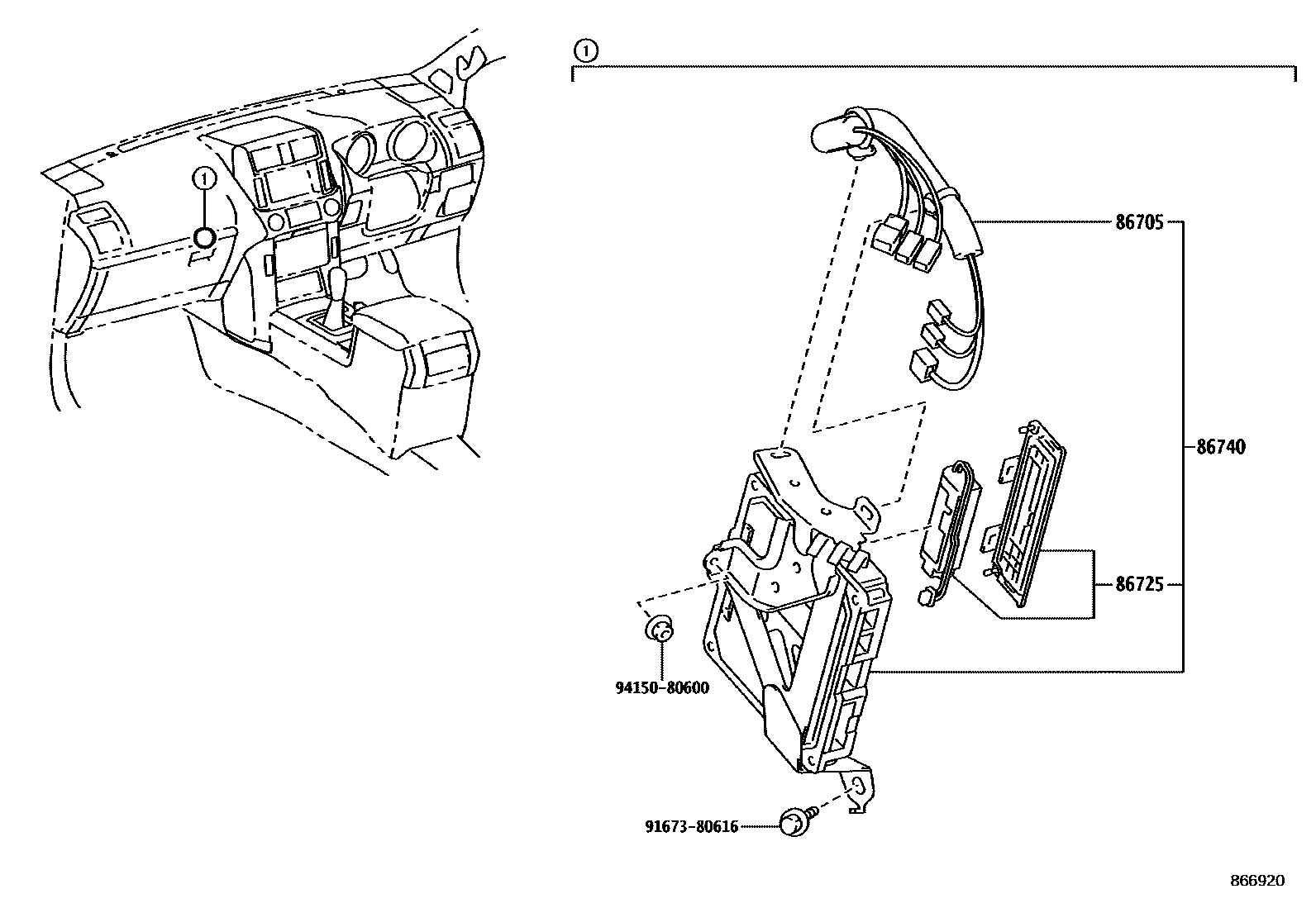

TELEPHONE & MAYDAY

0001 1 0002 1

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-60360iGDJ15#,TRJ150201708-202008

main86705-60690iGDJ15#,TRJ150202008-202312

86725BATTERY, MOBILEPHONE

main86725-26010iGDJ15#,TRJ150202008-202312

main86725-48010iGDJ15#,TRJ150201708-202008

86740TRANSCEIVER ASSY, TELEPHONE

main86740-60230iGDJ15#,TRJ150201708-202008

9167380616

main91673-80616

9415080600

main94150-80600

5 parts on this diagram · 2 diagrams in section
