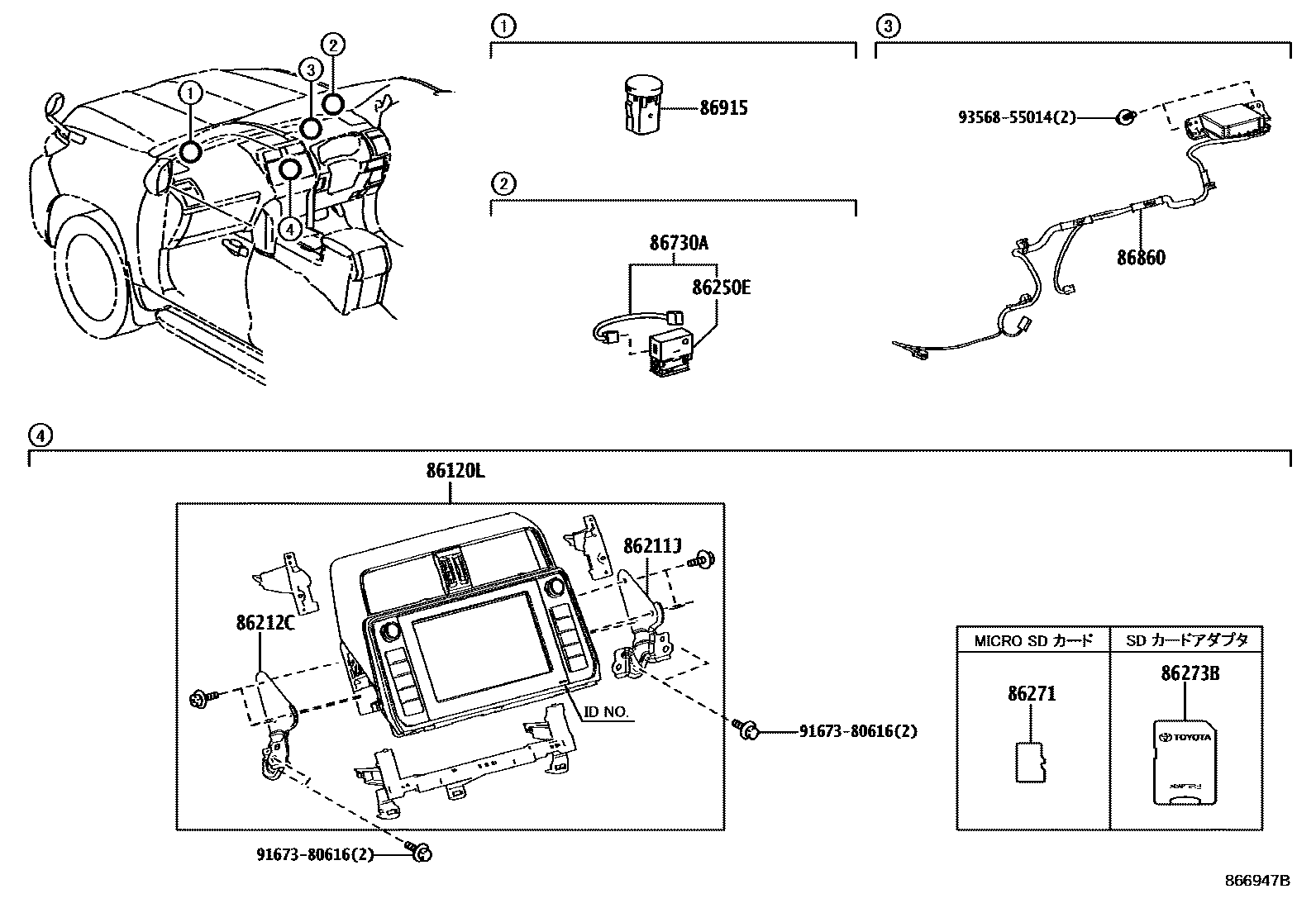

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86120LRECEIVER ASSY, NAVIGATION

86211JBRACKET, RADIO RECEIVER, NO.1

86212CBRACKET, RADIO RECEIVER, NO.2

86250EMICROPHONE ASSY, AMPLIFIER

86271DISC, DISC PLAYER

main86271-60050

main86271-60051

main86271-60052

main86271-60053

main86271-60054

main86271-60055

86273BADAPTER, DISC PLAYER

86730AMICROPHONE ASSY, TELEPHONE

86860ANTENNA ASSY, NAVIGATION

main86880-78010

main86880-60050

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010

9167380616

main91673-80616

9356855014

main93568-55014

11 parts on this diagram · 2 diagrams in section
