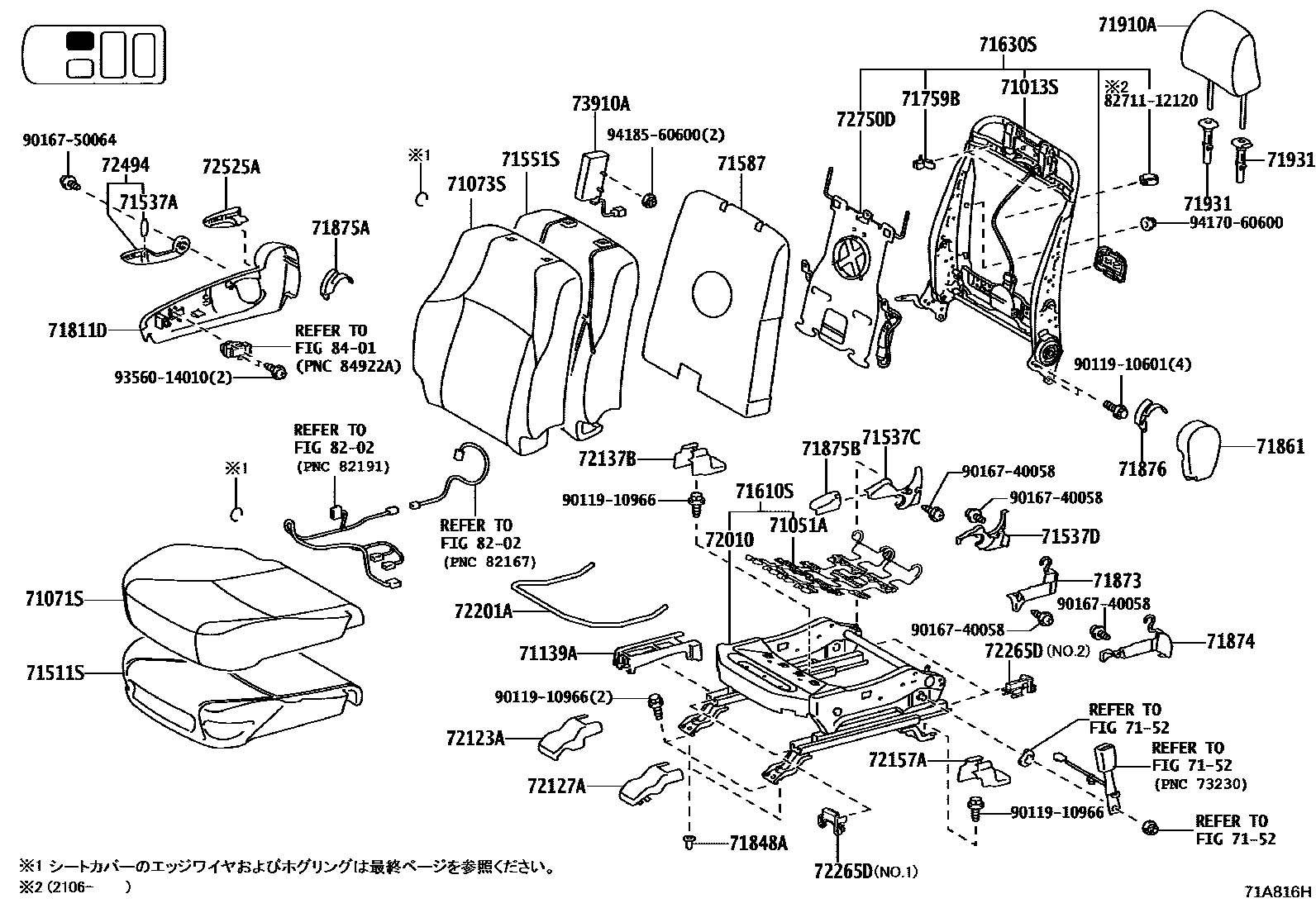

SEAT & SEAT TRACK

0001 1������������,RH 0002 1�����������,RH 0003 1������������,LH 0004 1�����������,LH 0005 1�� NO.1,RH 0006 1�� NO.1,LH 0007 1�� NO.1���,RH 0008 1�� NO.1���,LH 0009 1�� NO.2(��������),RH 0010 1�� NO.2(��������),LH 0011 1�� NO.2(�������),RH 0012 1�� NO.2(�������),LH 0013 1�������������� & �������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-60340iGDJ150,TRJ150201708-202106

main71013-60620iGDJ151201708-202106

main71013-60820iGDJ150,TRJ150202106-202312

main71013-60870iGDJ150,TRJ150..07S202106-202208

main71013-60A00iGDJ151202106-202312

main71013-60580iGDJ150,TRJ150..07S201708-202106

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47060iGDJ150,TRJ150201708-202312

main71051-60180iGDJ150,TRJ150..07S201708-202208

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-60K30-C5iGDJ150,TRJ150201708-202106

BLACK,TRIM2#

main71071-60K30-E1iGDJ150,TRJ150201708-202106

NEUTRAL BEIGE,TRIM4#

main71071-60N80-C1iGDJ150,TRJ150..07S201708-201807

main71071-60N80-E5iGDJ150,TRJ150..07S201708-201807

NEUTRAL BEIGE,TRIM4#

main71071-60N81-C3iGDJ150,TRJ150..07S201808-201907

BLACK,TRIM2#

main71071-60N81-E9iGDJ150,TRJ150..07S201808-201907

NEUTRAL BEIGE,TRIM4#

main71071-60N82-C4iGDJ150,TRJ150..07S201908-202207

BLACK,TRIM2#

main71071-60N82-L1iGDJ150,TRJ150..07S202106-202207

main71071-60N82-L2iGDJ150,TRJ150..07S202106-202207

main71071-60N83-C9iGDJ150,TRJ150..07S202208-202312

GRAY NO.830/BLACK,TRIM2#

main71071-60N83-L3iGDJ150,TRJ150..07S202208-202312

NEUTRAL BEIGE,TRIM4#

main71071-60T30-C0iGDJ150,TRJ150202106-202208

BLACK,TRIM2#

main71071-60T30-C1iGDJ150,TRJ150202208-202312

BLACK/DK.GRAY,TRIM2#

main71071-60T30-E0iGDJ150,TRJ150202106-202208

NEUTRAL BEIGE,TRIM4#

main71071-60T30-E1iGDJ150,TRJ150202208-202312

NEUTRAL BEIGE/IVORY,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-60F60-C1iGDJ150,TRJ150..07S201708-201807

BLACK,TRIM2#

main71073-60F60-E5iGDJ150,TRJ150..07S201708-201807

NEUTRAL BEIGE,TRIM4#

main71073-60F61-C3iGDJ150,TRJ150..07S201808-202106

BLACK,TRIM2#

main71073-60F61-E9iGDJ150,TRJ150..07S201808-202106

NEUTRAL BEIGE,TRIM4#

main71073-60G70-21iGDJ150,TRJ150202008-202106

BLACK,TRIM2#

main71073-60G70-C6iGDJ150,TRJ150201708-202008

BLACK,TRIM2#

main71073-60G70-E5iGDJ150,TRJ150201708-202008

NEUTRAL BEIGE,TRIM4#

main71073-60G70-L0iGDJ150,TRJ150202008-202106

NEUTRAL BEIGE,TRIM4#

main71073-60R30-C0iGDJ150,TRJ150202106-202208

BLACK,TRIM2#

main71073-60R30-C3iGDJ150,TRJ150202208-202312

BLACK/GRAY,TRIM2#

main71073-60R30-E0iGDJ150,TRJ150202106-202208

NEUTRAL BEIGE,TRIM4#

main71073-60R30-E5iGDJ150,TRJ150202208-202312

NEUTRAL BEIGE/IVORY,TRIM4#

main71073-60S40-C0iGDJ150,TRJ150..07S202106-202207

main71073-60S40-E1iGDJ150,TRJ150..07S202106-202207

main71073-60S40-E2iGDJ150,TRJ150..07S202106-202207

main71073-60S41-C5iGDJ150,TRJ150..07S202208-202312

GRAY NO.830/BLACK,TRIM2#

main71073-60S41-E4iGDJ150,TRJ150..07S202208-202312

NEUTRAL BEIGE,TRIM4#

71139ACOVER, FRONT SEAT LEG, NO.1

main71139-60030-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#

main71139-60030-E2iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-35130iGDJ150,TRJ150..07S201708-202312

main71511-60441iGDJ150,TRJ150201708-202106

main71511-60541iGDJ150,TRJ150202106-202312

7152

71537APROTECTOR, FRONT SEAT CUSHION

main71537-47040iGDJ150,TRJ150201708-202312

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-47010-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#

main71537-47010-E5iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM4#

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71538-47010-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#

main71538-47010-E5iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM4#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-60230iGDJ150,TRJ150..07S201708-202106

main71505-60510iGDJ150,TRJ150..07S202106-202208

main71551-60570iGDJ150,TRJ150201708-202106

main71551-60A20iGDJ150,TRJ150202106-202312

71587PROTECTOR, FRONT SEATBACK EDGE

main71765-60080×2iGDJ15#,TRJ150201708

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-60411iGDJ150,TRJ150201708-202312

main71610-60510iGDJ151201708-202312

main71610-60720iGDJ150,TRJ150..07S202106-202208

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-60440iGDJ150,TRJ150201708-202106

main71630-60490iGDJ151201708-202106

main71630-60A30iGDJ150,TRJ150202106-202312

main71630-60B70iGDJ151202106-202312

main71630-60B80iGDJ150,TRJ150..07S202106-202208

main71630-60640iGDJ150,TRJ150..07S201708-202106

71759BHOOK, FRONT SEATBACK

main71759-47010×4iGDJ15#,TRJ150201708-202106

main71759-47011×4iGDJ15#,TRJ150202106-202312

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-60320-C0iGDJ150,TRJ150..07S202106-202208

main71811-60320-E2iGDJ150,TRJ150..07S201708-202312

NEUTRAL BEIGE,TRIM4#

main71811-60330-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#,41

main71811-60330-E1iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM40

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-33010×2iGDJ15#,TRJ150201708-202312

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-60140-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#

main71861-60140-E3iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040iGDJ150,TRJ150201708-202312

main71873-60030iGDJ150,TRJ150..07S202106-202208

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-60030iGDJ15#,TRJ150201708-202312

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-47030-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#,41

main71875-47030-E4iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM40

main71875-60210-C0iGDJ150,TRJ150..07S202106-202208

main71875-60210-E5iGDJ150,TRJ150..07S201708-202312

NEUTRAL BEIGE,TRIM4#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60200iGDJ150,TRJ150..07S202106-202208

main71875-60220iGDJ150,TRJ150201708-202312

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-47030-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#,41

main71876-47030-E4iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM40

main71876-60210-C0iGDJ150,TRJ150..07S202106-202208

main71876-60210-E5iGDJ150,TRJ150..07S202106-202208

71910AHEADREST ASSY, FRONT SEAT

main71910-60B60-C2×2iGDJ150,TRJ150201708-202106

BLACK,TRIM2#

main71910-60B60-E2×2iGDJ150,TRJ150201708-202106

NEUTRAL BEIGE,TRIM4#

main71910-60B80-C2×2iGDJ150,TRJ150..07S201708-201806

BLACK,TRIM2#

main71910-60B80-E2×2iGDJ150,TRJ150..07S201708-201806

NEUTRAL BEIGE,TRIM4#

main71910-60B81-C3×2iGDJ150,TRJ150..07S202106-202208

main71910-60B81-E3×2iGDJ150,TRJ150..07S202106-202208

main71910-60B81-E4×2iGDJ150,TRJ150..07S202106-202208

main71910-60G90-C0×2iGDJ150,TRJ150202106-202312

BLACK,TRIM2#

main71910-60G90-E0×2iGDJ150,TRJ150202106-202312

NEUTRAL BEIGE,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-C0×2iGDJ15#,TRJ150201708-201710

main71930-47020-C4×2iGDJ150,TRJ150201710-202312

main71930-47020-L0×2iGDJ150,TRJ150201708-201710

main71931-47020-C0×2iGDJ15#,TRJ150201708-201710

main71931-47020-C4×2iGDJ150,TRJ150201710-202312

main71931-47020-L0×2iGDJ150,TRJ150201708-201710

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-60352iGDJ150,TRJ150201708-202312

main72010-60490iGDJ151201708-202208

main72010-60590iGDJ150,TRJ150..07S202106-202208

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-60120-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#

main72123-60120-E2iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM4#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-60100-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#

main72127-60100-E2iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM4#

72137BCOVER, SEAT TRACK, RH

main72137-60140-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#

main72137-60140-E2iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM4#

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-60150-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#

main72157-60150-E2iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM4#

72201AHANDLE SUB-ASSY, SEAT TRACK RH

main72211-60210iGDJ150,TRJ150201708-202312

72265DCOVER, SEAT TRACK UPPER RAIL

main72265-52040×4supersedes 72265-60110iGDJ151201708-202310

main72265-60110×4iGDJ151201708-202310

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-47010-C0iGDJ150,TRJ150201708-202312

BLACK,TRIM2#,41

main72494-47010-E2iGDJ150,TRJ150201708-202312

NEUTRAL BEIGE,TRIM40

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-C0iGDJ150,TRJ150201708-201710

BLACK,TRIM2#

main72525-47010-C1iGDJ150,TRJ150201710-202312

BLACK,TRIM2#,41

main72525-47010-E4iGDJ150,TRJ150201708-201710

NEUTRAL BEIGE,TRIM4#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-60080iGDJ150,TRJ150201708-202312

main72750-60100iGDJ150,TRJ150..07S201708-202312

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-60030iGDJ15#,TRJ150201708-202312

8202

8401

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

9011910601

main90119-10601

9011910966

main90119-10966

9016740058

main90167-40058

9016750064

main90167-50064

9356014010

main93560-14010

9417060600

main94170-60600

9418560600

main94185-60600
