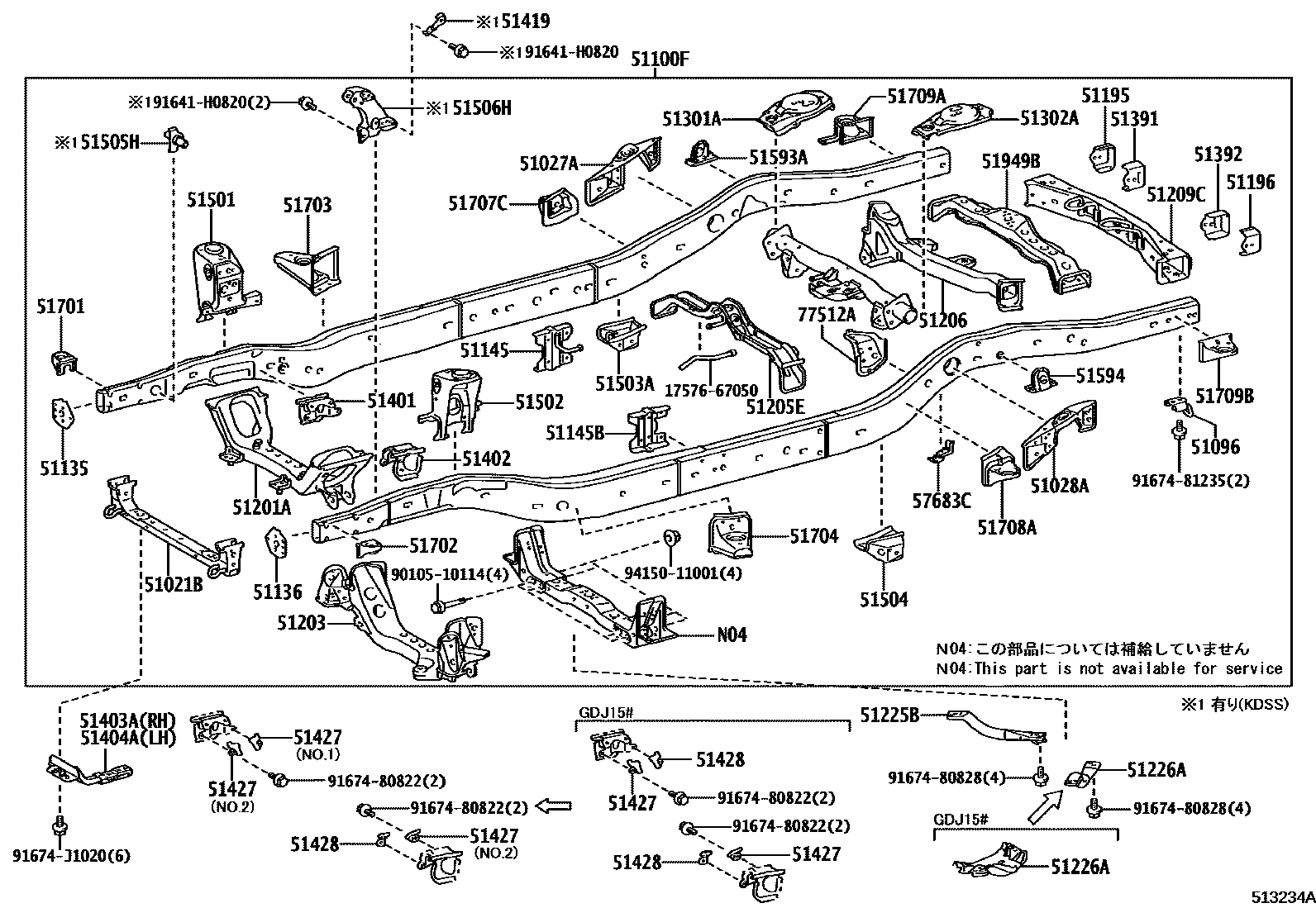

FRAME
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH
51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH
51096HOOK SUB-ASSY, TRANSPORT, REAR LH
51100FFRAME SUB-ASSY
51135PLATE, FRAME SIDE RAIL, RH
51136PLATE, FRAME SIDE RAIL, LH
51145STIFFENER, FRAME SIDE RAIL
51145BSTIFFENER, FRAME SIDE RAIL
51195PATCH, REAR FRAME RAIL, RH
51196PATCH, REAR FRAME RAIL, LH
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51205ECROSSMEMBER SUB-ASSY, FRAME, NO.4
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51225BBRACKET, FRONT SUSPENSION MEMBER, RH
51226ABRACKET, FRONT SUSPENSION MEMBER, LH
51301ABRACKET SUB-ASSY, REAR SPRING, REAR RH
51302ABRACKET SUB-ASSY, REAR SPRING, REAR LH
51391GUSSET, FRAME REAR CROSSMEMBER, RH
51392GUSSET, FRAME REAR CROSSMEMBER, LH
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51419BRACKET, FRAME APRON SEAL
51427REINFORCEMENT, ENGINE FRONT MOUNTING, RH
51428REINFORCE, ENGINE MOUNTING, REAR
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
51505HBRACKET SUB-ASSY, FRONT STABILIZER, RH
51506HBRACKET SUB-ASSY, FRONT STABILIZER, LH
51593ABRACKET, REAR SPRING BUMPER, RH
51594BRACKET, REAR SPRING BUMPER, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING
51709BBRACKET SUB-ASSY, BODY REAR END MOUNTING, LH
51949BCROSSMEMBER, SPARE WHEEL CARRIER
57683CBRACKET, FUEL TANK MOUNTING
77512ABRACKET, FUEL TANK, REAR
1757667050BRACKET, MUFFLER CLAMP
main17576-67050
9010510114
main90105-10114
91641H0820
main91641-H0820
9167480822
main91674-80822
9167480828
main91674-80828
9167481235
main91674-81235
91674J1020
main91674-J1020
9415011001
main94150-11001
56 parts on this diagram · 1 diagram in section
