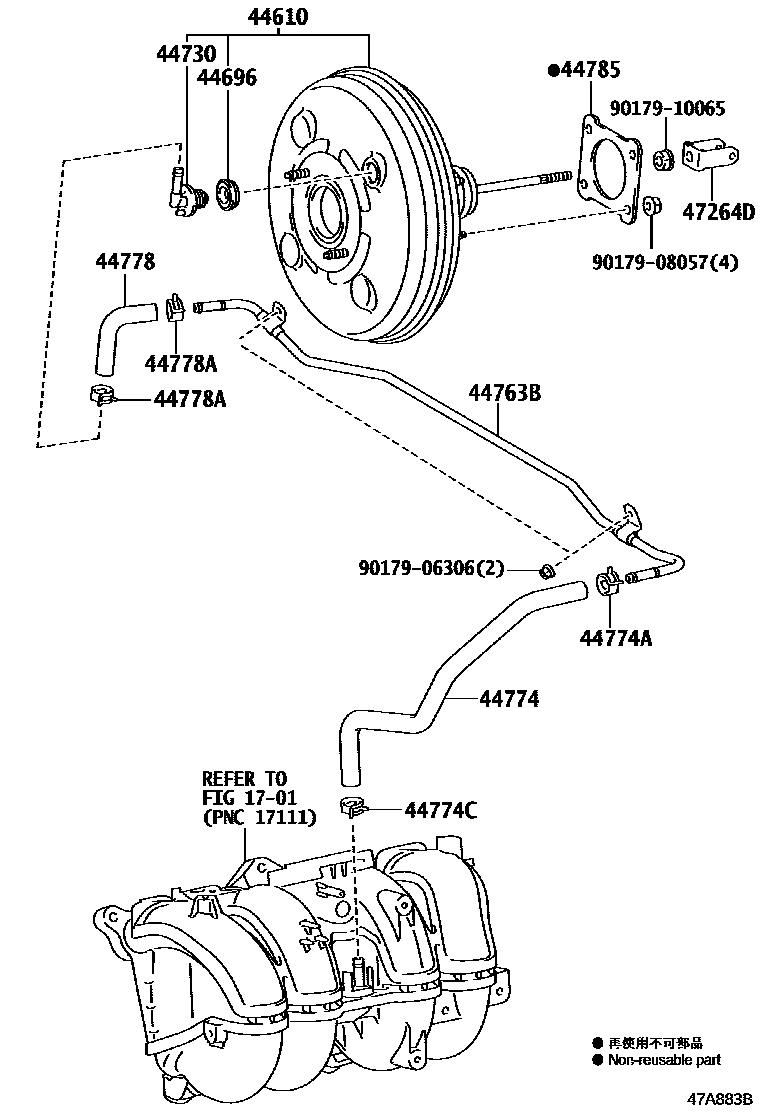

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-6A300iTRJ150201708-202008

44696GROMMET, CHECK VALVE

main90480-24439iTRJ150201708-202008

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iTRJ150201708-202008

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44763-60190iTRJ150201708-202008

44774HOSE, UNION TO CONNECTOR TUBE

main44774-60340iTRJ150201708-202008

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500iTRJ150201708-202008

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iTRJ150201708-202008

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-60240iTRJ150201708-202008

44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

main96133-41500iTRJ150201708-202008

44785GASKET, BRAKE BOOSTER

main44785-60030iTRJ150201708-202008

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iTRJ150201708-202008

9017906306

main90179-06306

9017908057

main90179-08057

9017910065

main90179-10065

15 parts on this diagram · 1 diagram in section
