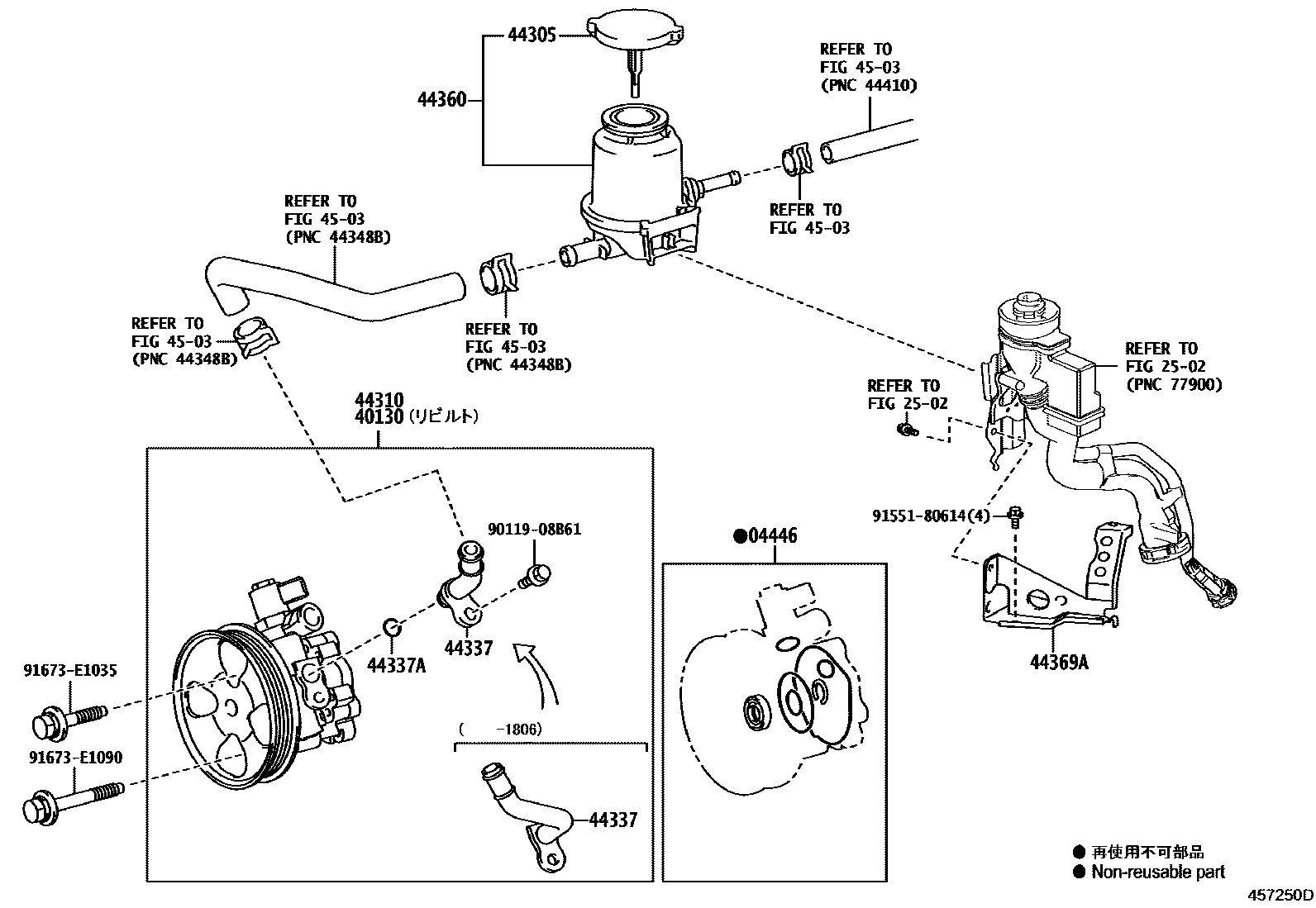

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iGDJ15#,TRJ150201708-202312

2502

40130PUMP ASSY,VANE REBUILT

main40130-60562iTRJ150201708-201806

sub44310-60562

main40130-60660iGDJ15#201708-201806

sub44310-60660

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22061iTRJ150201708-202312

main44305-28061iGDJ15#201708-202312

44310PUMP ASSY, VANE

main44310-60562iTRJ150201708-202002

sub44310-60563

main44310-60563iTRJ150202003-202312

main44310-60660iGDJ15#201708-201806

sub44310-60661

main44310-60680iGDJ15#201806-202002

sub44310-60681

main44310-60681iGDJ15#202003-202312

44337UNION, POWER STEERING SUCTION PORT

main44337-20080iGDJ15#201806-202312

main44337-60260iGDJ15#201708-201806

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iGDJ15#201708-202312

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60340iGDJ15#201708-202312

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-60040iGDJ15#201708-202312

4503

9011908B61

main90119-08B61

9155180614

main91551-80614

91673E1035

main91673-E1035

91673E1090

main91673-E1090

14 parts on this diagram · 2 diagrams in section
