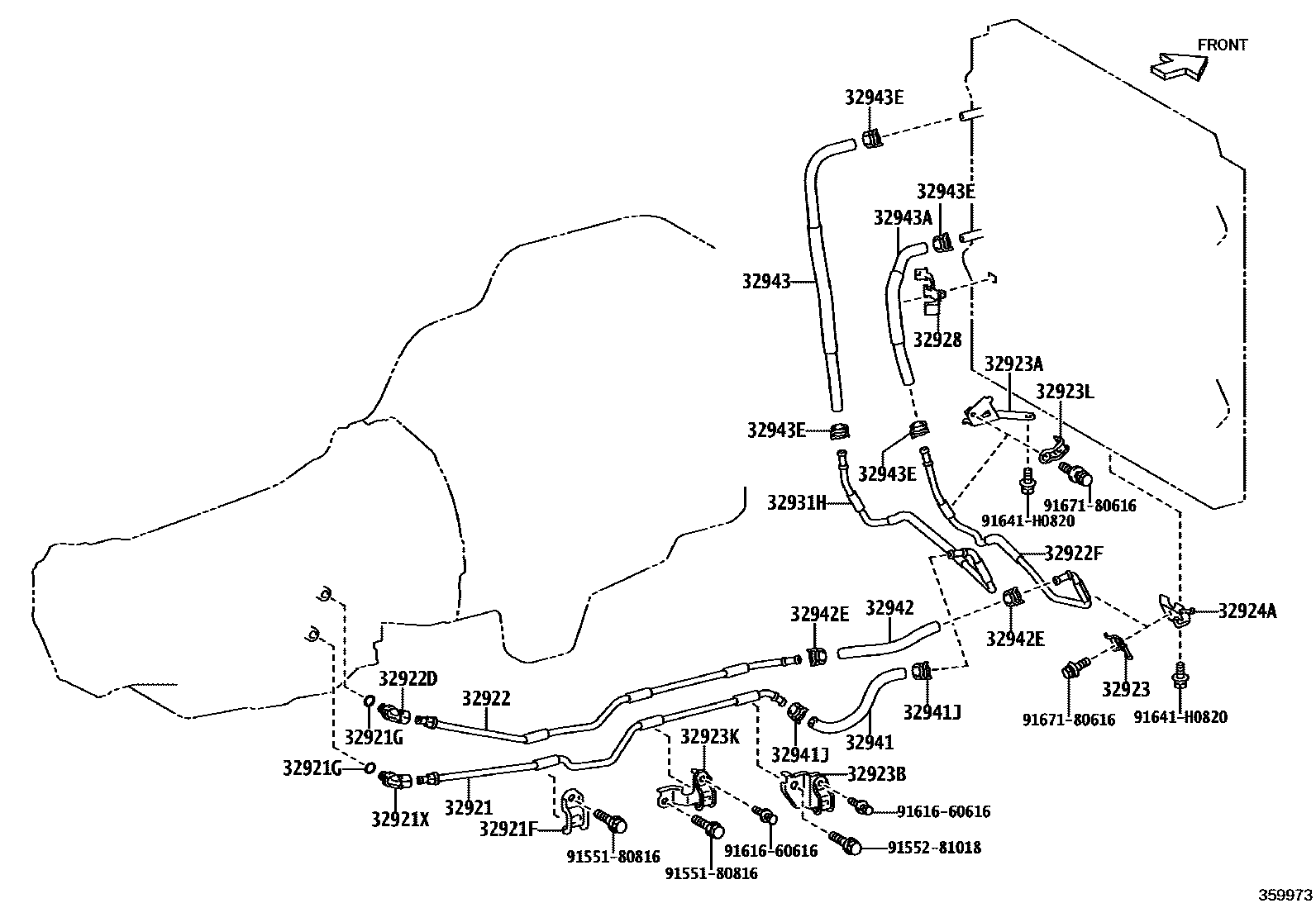

OIL COOLER & TUBE (ATM)
32921TUBE, OIL COOLER INLET, NO.1
32921FCLAMP(FOR OIL COOLER TUBE)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921XUNION OR ELBOW, OIL COOLER INLET
32922TUBE, OIL COOLER OUTLET, NO.1
32922DUNION OR ELBOW, OIL COOLER OUTLET
32922FTUBE, OIL COOLER OUTLET, NO.2
32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2
32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3
32924ACLAMP(FOR OIL COOLER TUBE, NO.2)
32928CLAMP, FLEXIBLE HOSE, NO.1
32931HTUBE, OIL COOLER INLET, NO.2
32941HOSE, OIL COOLER INLET, NO.1
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
32942HOSE, OIL COOLER OUTLET, NO.1
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
32943HOSE, TRANSMISSION OIL COOLER, NO.1
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
32943ECLIP, NO.3(FOR OIL COOLER HOSE)
9155180816
9155281018
9161660616
91641H0820
9167180616
27 parts on this diagram · 3 diagrams in section
