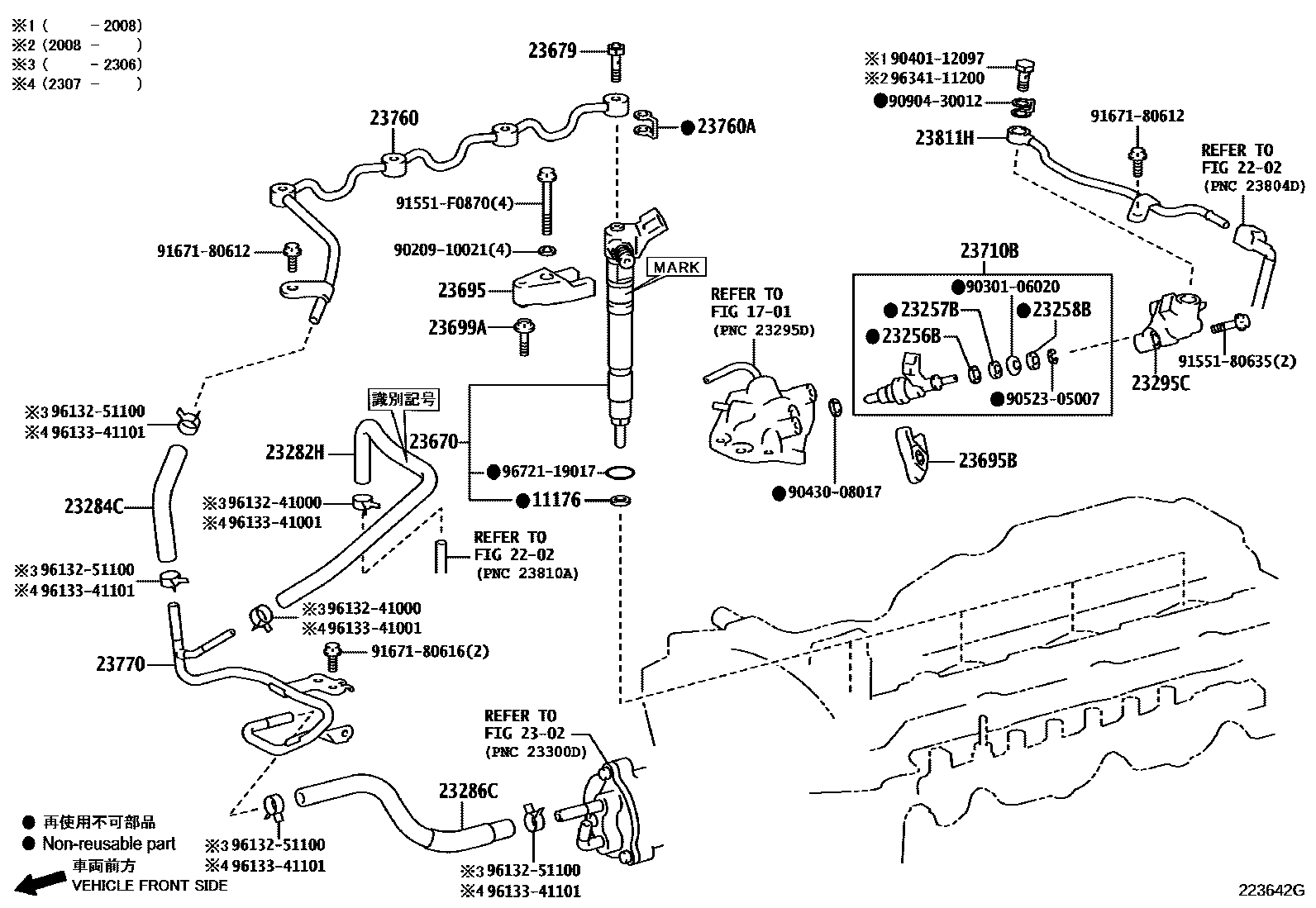

INJECTION NOZZLE

11176SEAT, INJECTION NOZZLE

main11176-33010i1GDFTV..GDJ15#201708-202312

1701

2202

2302

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i1GDFTV..GDJ15#201708-202312

23257BRING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i1GDFTV..GDJ15#201708-202312

23258BRING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011i1GDFTV..GDJ15#201708-202312

23282HHOSE, FUEL, NO.4

main23282-0E010i1GDFTV..GDJ15#201708-201806

main23282-11020i1GDFTV..GDJ15#201806-201901

sub23282-11021

main23282-11021i1GDFTV..GDJ15#201902-202312

23284CHOSE, FUEL, NO.5

main23284-11010i1GDFTV..GDJ15#201708-202312

23286CHOSE, FUEL, NO.6

main23286-11010i1GDFTV..GDJ15#201708-202006

main23286-11011i1GDFTV..GDJ15#202006-202312

23295CHOLDER, INJECTOR

main23296-11020i1GDFTV..GDJ15#201708-202312

23670INJECTOR ASSY

main23670-09470i1GDFTV..GDJ15#202008-202011

main23670-09510i1GDFTV..GDJ15#202106-202205

sub23670-09540

main23670-09540i1GDFTV..GDJ15#202205-202312

main23670-19015i1GDFTV..GDJ15#201708-201806

main23670-19046i1GDFTV..GDJ15#201806-202002

sub23670-19055

main23670-19055i1GDFTV..GDJ15#202002-202008

main23670-19075i1GDFTV..GDJ15#202008-202011

sub23670-39505

main23670-19085i1GDFTV..GDJ15#202011-202205

sub23670-39485

main23670-39485i1GDFTV..GDJ15#202205-202312

23679SCREW, INJECTOR FOLLOW

main90401-06002i1GDFTV..GDJ15#201708-202312

main90401-T0007i1GDFTV..GDJ15#201708-202312

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-11010i1GDFTV..GDJ15#201708-202312

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-28010i1GDFTV..GDJ15#201708-202312

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-11010i1GDFTV..GDJ15#201708-202312

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-11010i1GDFTV..GDJ15#201708-202312

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0E010i1GDFTV..GDJ15#201708-201910

sub23760-0E011

main23760-0E011i1GDFTV..GDJ15#201911-202312

main23760-11010i1GDFTV..GDJ15#201911-202206

sub23760-0E011

23760AGASKET

main90430-06013i1GDFTV..GDJ15#201708-202312

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0E010i1GDFTV..GDJ15#201708-202006

main23770-0E011i1GDFTV..GDJ15#202006-202312

main23770-11010i1GDFTV..GDJ15#201905-202006

main23770-11011i1GDFTV..GDJ15#202006-202206

sub23770-0E011

23811HPIPE, FUEL, NO.1

main23811-08010i1GDFTV..GDJ15#202111-202312

main23811-0E010i1GDFTV..GDJ15#201708-202110

sub23811-08010

main23811-11040i1GDFTV..GDJ15#201905-202203

sub23811-08010

9020910021

main90209-10021

9030106020

main90301-06020

9040112097

main90401-12097

9043008017

main90430-08017

9052305007

main90523-05007

9090430012

main90904-30012

9155180635

main91551-80635

91551F0870

main91551-F0870

9167180612

main91671-80612

9167180616

main91671-80616

9613241000

main96132-41000

9613251100

main96132-51100

9613341001

main96133-41001

9613341101

main96133-41101

9634111200

main96341-11200

9672119017

main96721-19017

37 parts on this diagram · 1 diagram in section
