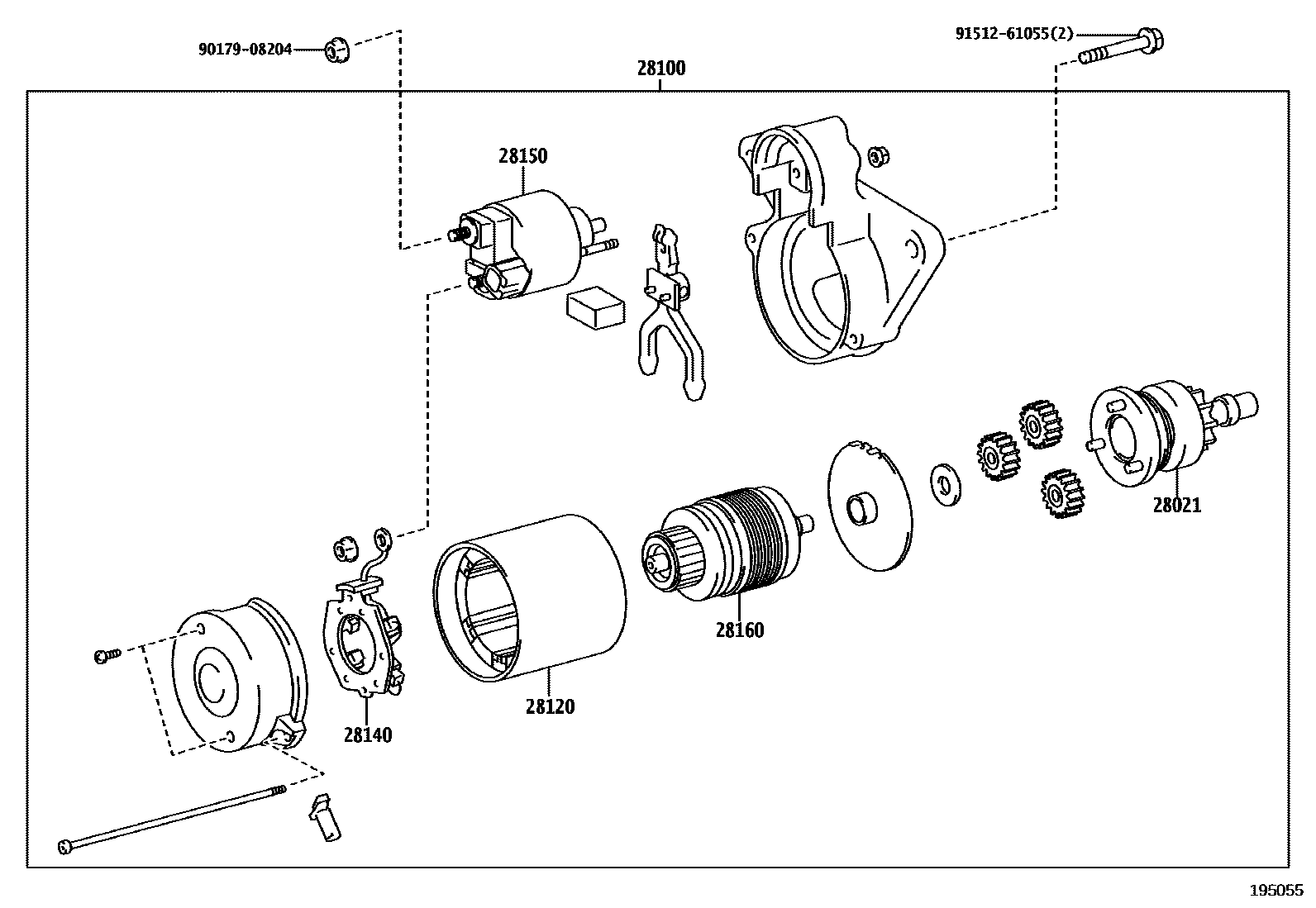

STARTER

0001 112V 1.6KW 0002 112V 2.0KW 0003 112V 2.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-75210i2TRFE..TRJ150201708-202312

28100STARTER ASSY

main28100-11190i1GDFTV..GDJ15#201708-202312

main28100-30051i1GDFTV..GDJ15#201708-202312

main28100-75210i2TRFE..TRJ150201708-202312

28120YOKE ASSY, STARTER

main28120-0L180i1GDFTV..GDJ15#201708-202312

main28120-67020i1GDFTV..GDJ15#201708-202312

main28120-75210i2TRFE..TRJ150201708-202312

28140HOLDER ASSY, STARTER BRUSH

main28140-0L180i1GDFTV..GDJ15#201708-202312

main28140-37050i2TRFE..TRJ150201708-202312

main28140-77090i1GDFTV..GDJ15#201708-202312

28150SWITCH ASSY, MAGNET STARTER

main28150-30050i1GDFTV..GDJ15#201708-202312

main28150-40090i1GDFTV..GDJ15#201708-202312

main28150-40130i2TRFE..TRJ150201708-202312

28160ARMATURE ASSY, STARTER

main28160-37050i2TRFE..TRJ150201708-201907

sub28160-75210

main28160-37100i1GDFTV..GDJ15#201708-202312

main28160-54140i1GDFTV..GDJ15#201708-202312

main28160-75210i2TRFE..TRJ150201907-202312

9017908204

main90179-08204

9151261055

main91512-61055

8 parts on this diagram · 3 diagrams in section
