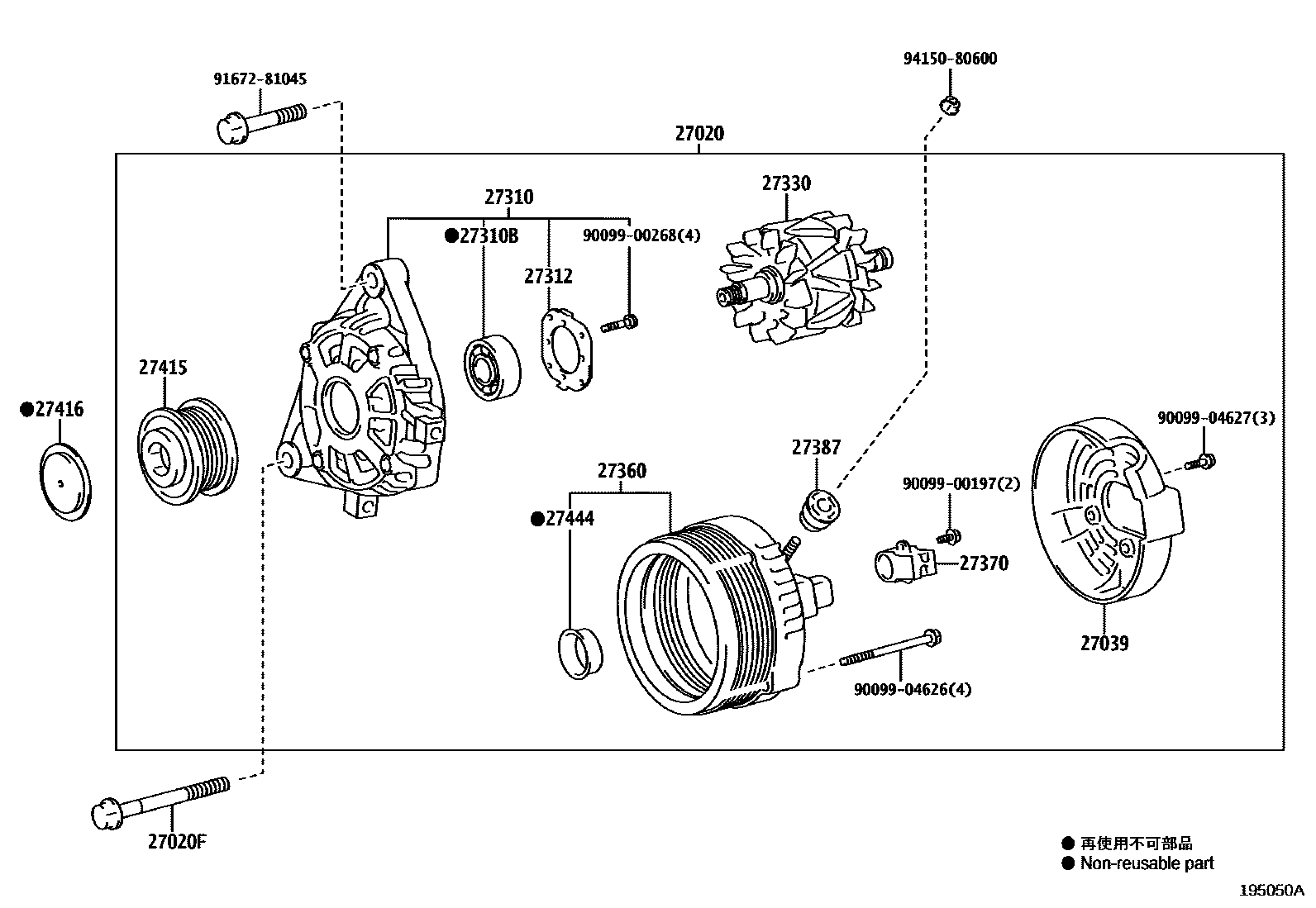

ALTERNATOR

0001 112V 100A,130A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-11180i1GDFTV..GDJ15#201708-202312

main27060-75550i2TRFE..TRJ150201708-202312

27020FBOLT, NO.1(FOR ALTERNATOR)

main91552-81040i2TRFE..TRJ150201708-202312

main91552-81090i1GDFTV..GDJ15#201708-202312

27039COVER, ALTERNATOR REAR END

main27039-11290i1GDFTV..GDJ15#201708-202312

main27039-37220i2TRFE..TRJ150201708-202312

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-11280i1GDFTV..GDJ15#201708-202312

main27310-75510i2TRFE..TRJ150201708-202312

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i1GDFTV,2TRFE..GDJ15#,TRJ150201708-202312

27312PLATE, RETAINER

main27312-72100i1GDFTV,2TRFE..GDJ15#,TRJ150201708-202312

27330ROTOR ASSY, ALTERNATOR

main27330-47330i1GDFTV,2TRFE..GDJ15#,TRJ150201708-202312

27360COIL ASSY, ALTERNATOR

main27360-11280i1GDFTV..GDJ15#201708-202312

main27360-75510i2TRFE..TRJ150201708-202312

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i1GDFTV..GDJ15#201708-202312

main27370-58460i2TRFE..TRJ150201708-202312

27387INSULATOR, TERMINAL

main27387-20130i1GDFTV,2TRFE..GDJ15#,TRJ150201708-202312

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W063i2TRFE..TRJ150201708-202312

main27415-30010i1GDFTV..GDJ15#201708-202312

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2TRFE..TRJ150201708-202312

main27416-30020i1GDFTV..GDJ15#201708-202312

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i1GDFTV,2TRFE..GDJ15#,TRJ150201708-202312

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9167281045

main91672-81045

9415080600

main94150-80600

19 parts on this diagram · 2 diagrams in section
