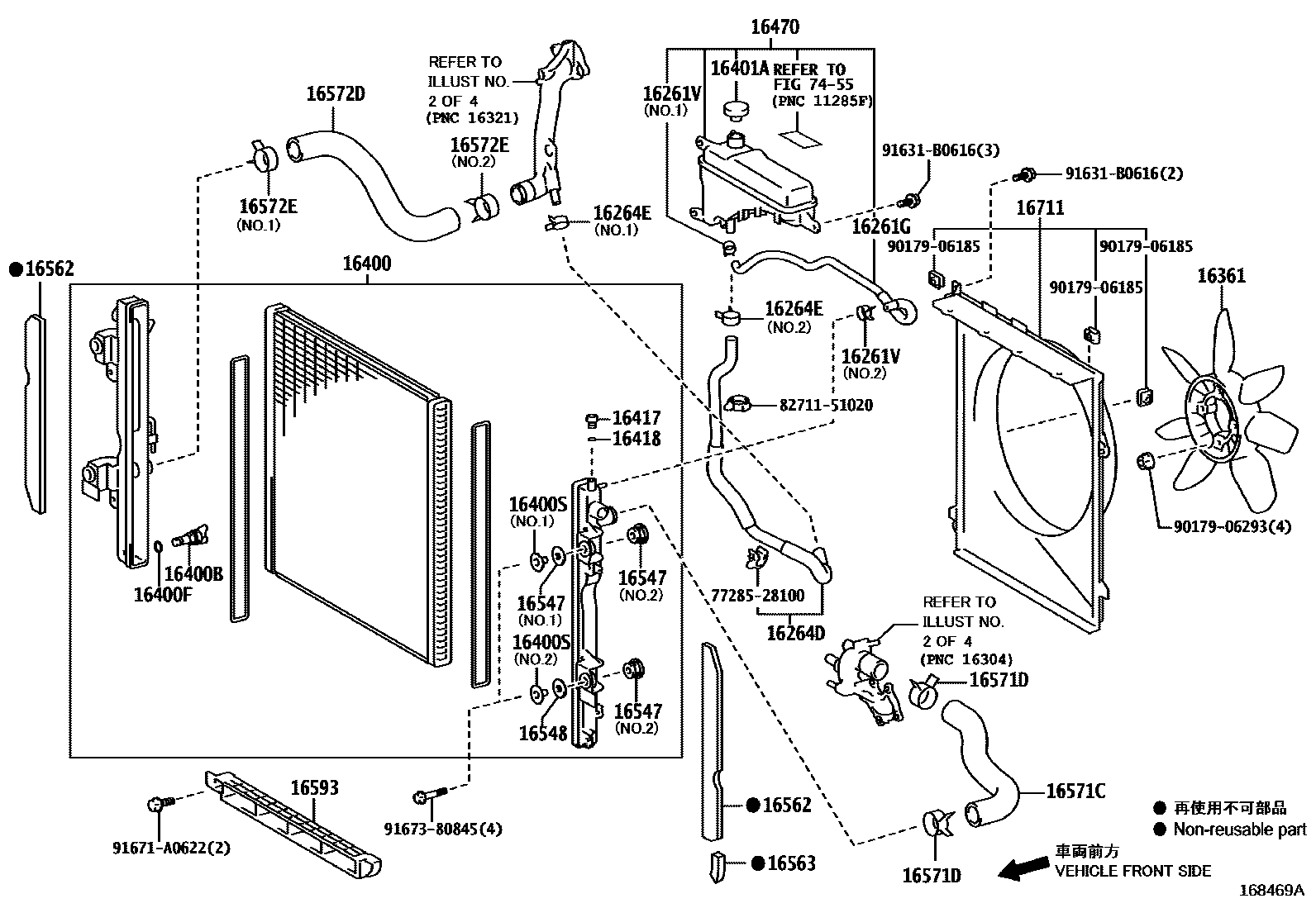

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1PNC 16027 = TYPE A 0004 1PNC 16027 = TYPE B 0005 1PNC 16209 = TYPE B 0006 1PNC 16209 = TYPE C 0007 1 0008 1 0009 1

16261HOSE, WATER BY-PASS

main16261-75270i2TRFE..TRJ150201708-202312

16261GHOSE, WATER BY-PASS, NO.1

main16261-11150i1GDFTV..GDJ15#201806-202312

main16261-30290i1GDFTV..GDJ15#201708-201806

16261VCLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022i1GDFTV..GDJ15#201708-202312

main96137-41901i1GDFTV..GDJ15#201708-202312

16264HOSE, WATER BY-PASS, NO.2

main16264-11130i1GDFTV..GDJ15#201708-202011

sub16264-11131

main16264-11131i1GDFTV..GDJ15#202012-202312

main16264-75220i2TRFE..TRJ150201708-202312

16264DHOSE, WATER BY-PASS, NO.2

main16264-30110i1GDFTV..GDJ15#201708-202312

16264ECLIP(FOR WATER BY-PASS HOSE NO.2)

main96136-42101i1GDFTV..GDJ15#201708-202306

main96136-52101i1GDFTV..GDJ15#201708-202312

main96137-42501i1GDFTV..GDJ15#201708-202312

main96138-42101i1GDFTV..GDJ15#202307-202312

16361FAN

main16361-67020i1GDFTV..GDJ15#201708-202312

main16361-75021i2TRFE..TRJ150201708-202312

16400RADIATOR ASSY

main16400-11A60i1GDFTV..GDJ15#202008-202312

main16400-30350i1GDFTV..GDJ15#201708-201709

main16400-30351i1GDFTV..GDJ15#201710-202008

main16400-75620i2TRFE..TRJ150202208-202312

main16400-75641i2TRFE..TRJ150201708-202207

sub16400-75620

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i2TRFE..TRJ150201708-202312

main16417-30170i1GDFTV..GDJ15#201708-202312

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1GDFTV..GDJ15#201708-202312

main16492-21050i2TRFE..TRJ150201708-202312

16400SCOLLAR(FOR RADIATOR)

main16445-31570i1GDFTV..GDJ15#201708-202312

main16445-50380i1GDFTV..GDJ15#201708-202312

16401CAP SUB-ASSY, RADIATOR

main16401-31830i2TRFE..TRJ150201708-202312

16401ACAP SUB-ASSY, RADIATOR RESERVE TANK

main16405-22040i2TRFE..TRJ150201708-202312

main16475-28140i1GDFTV..GDJ15#201708-202312

16417COCK

main16417-51030i1GDFTV..GDJ15#201708-202312

16418PACKING

main16418-51030i1GDFTV..GDJ15#201708-202312

16470TANK ASSY, RADIATOR RESERVE

main16470-11150i1GDFTV..GDJ15#201806-202312

main16470-30052i1GDFTV..GDJ15#201708-201711

sub16470-30053

main16470-30053i1GDFTV..GDJ15#201712-201806

main16470-31050i2TRFE..TRJ150201708-202312

16547BUSH, RADIATOR SUPPORT, NO.1

main16547-50010i2TRFE..TRJ150201708-202312

main16547-50370i1GDFTV..GDJ15#201708-202312

main16547-50381i1GDFTV..GDJ15#201708-202312

16548BUSH, RADIATOR SUPPORT, NO.2

main16548-50370i1GDFTV..GDJ15#201708-202312

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-30010i1GDFTV..GDJ15#201708-201803

sub16562-30011

main16562-30011i1GDFTV..GDJ15#201804-202312

main16562-31020i2TRFE..TRJ150201708-202312

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-30030i1GDFTV..GDJ15#201708-202312

16571CHOSE, RADIATOR, NO.1

main16571-11310i1GDFTV..GDJ15#201806-202007

sub16571-11330

main16571-11330i1GDFTV..GDJ15#202008-202312

main16571-30110i1GDFTV..GDJ15#201708-201806

sub16571-11320

main16571-75232i2TRFE..TRJ150201708-202003

sub16571-75233

main16571-75233i2TRFE..TRJ150202004-202312

16571DCLIP, RADIATOR HOSE, NO.1

main96136-44301i2TRFE..TRJ150201708-202312

main96136-54801i1GDFTV..GDJ15#201708-202312

16572DHOSE, RADIATOR, NO.2

main16572-30120i1GDFTV..GDJ15#201708-202312

main16572-75320i2TRFE..TRJ150201708-202312

16572ECLIP, RADIATOR HOSE, NO.2

main96136-44301i1GDFTV..GDJ15#201708-202312

main96136-54801i1GDFTV..GDJ15#201708-202312

16593GUIDE, RADIATOR AIR, NO.1

main16593-30050i1GDFTV..GDJ15#201708-202312

16711SHROUD, FAN

main16711-11320i1GDFTV..GDJ15#201806-202312

main16711-30060i1GDFTV..GDJ15#201708-201806

main16711-75260i2TRFE..TRJ150201708-202312

7455

7728528100BRACKET, FUEL TUBE

main77285-28100

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9017906185

main90179-06185

9017906293

main90179-06293

91631B0616

main91631-B0616

91671A0622

main91671-A0622

9167380845

main91673-80845
