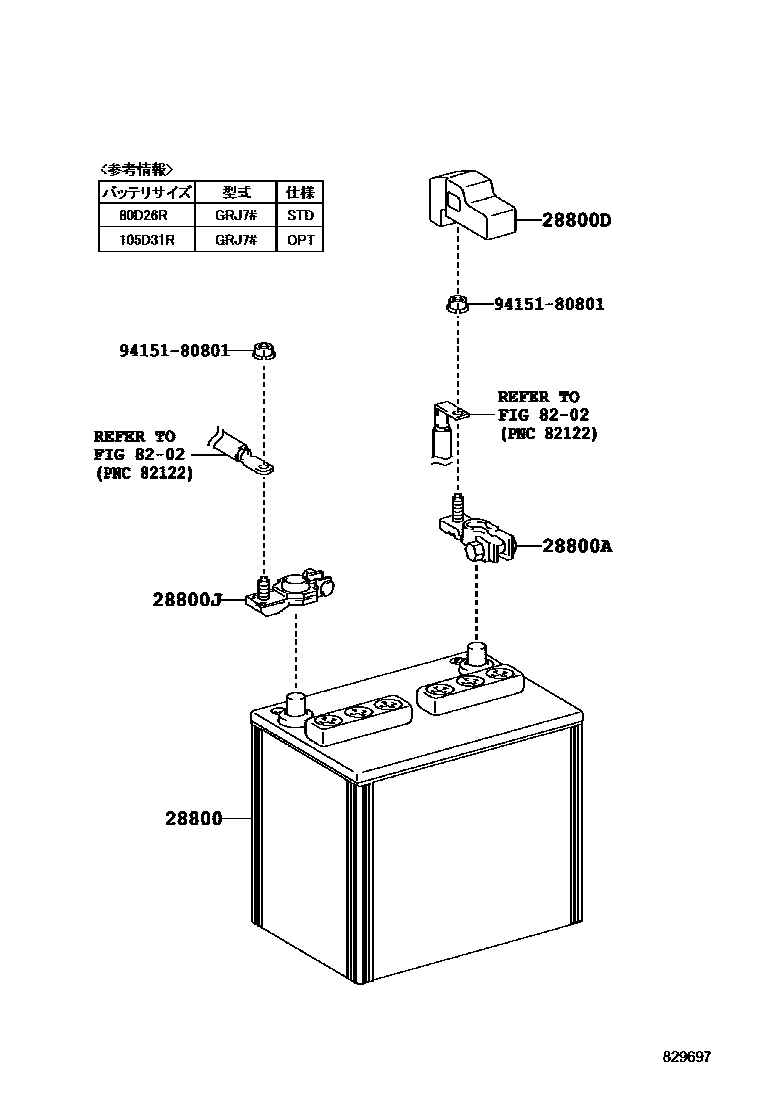

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-38211i1GDFTV..GDJ76202311-202403

main28800-38212i1GDFTV..GDJ76202404

main28800-67125i1GDFTV..GDJ76202311-202403

sub28800-44070

main28800-67126i1GDFTV..GDJ76202404

main28800-67123supersedes 28800-54232i1GRFE..GRJ7#201408-201507

sub28800-67124

28800ATERMINAL, BATTERY POSITIVE

main82670-60120i1GDFTV..GDJ76202311

main82675-60030i1GRFE..GRJ7#201408-201507

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82662-60B80i1GDFTV..GDJ76202311

main82821-24010i1GRFE..GRJ7#201408-201507

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GRFE..GRJ7#201408-201507

8202

9415180801

main94151-80801

6 parts on this diagram · 2 diagrams in section
