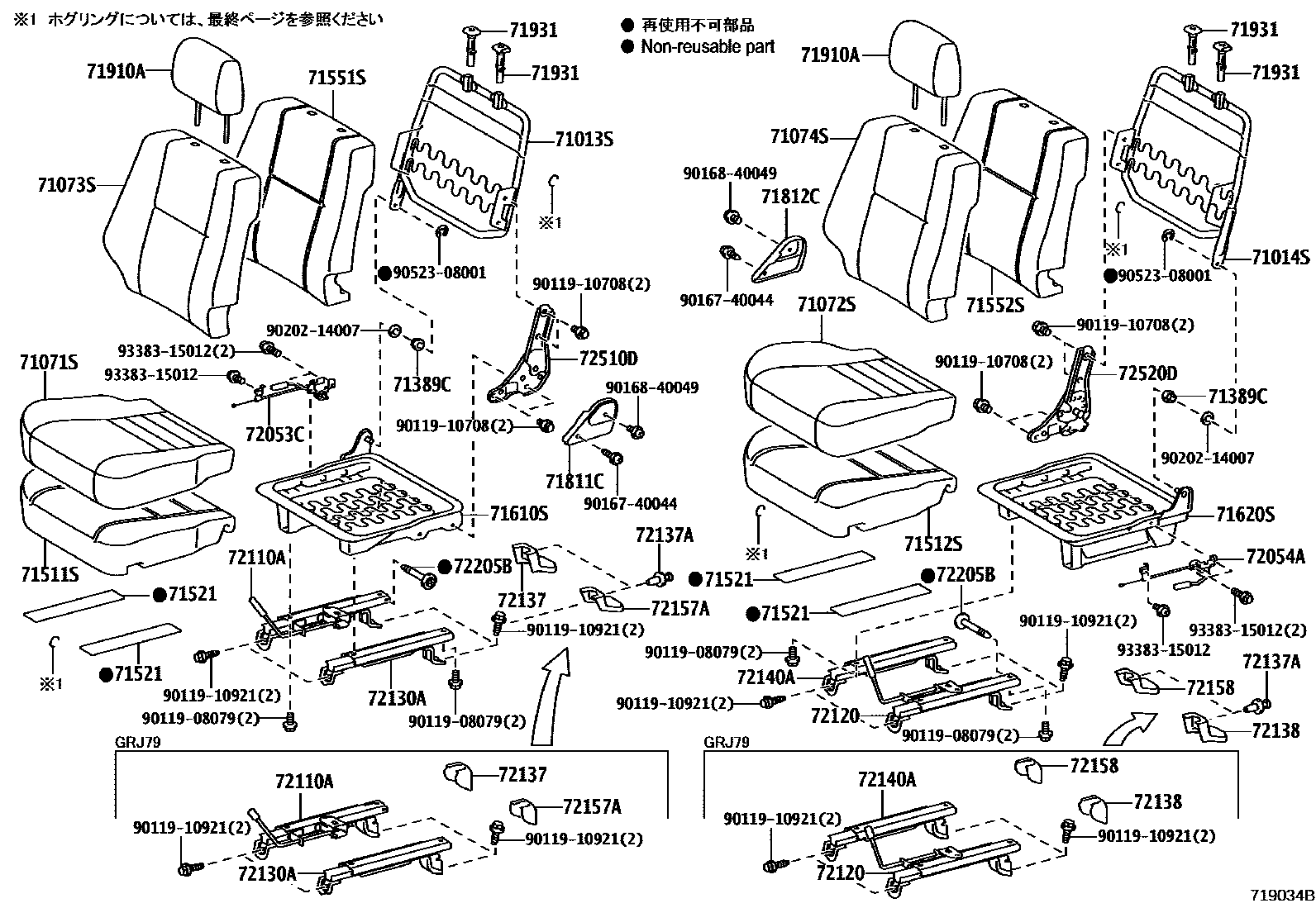

SEAT & SEAT TRACK

0001 1���� ��� 0002 1�� ��� 0003 1������� 0004 1�����(���)������� 0005 1�����(���)�������� 0006 1�����(���)������� 0007 1�����(���)�������� 0008 1�������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-60134iGRJ79201408-201507

sub71013-60A40

main71013-60600iGRJ76201408-201507

main71013-60A30iGDJ76202311

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-60124iGRJ79201408-201507

sub71014-60880

main71014-60570iGRJ76201408-201507

main71014-60870iGDJ76202311

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-60314-B7iGRJ7#201408-201507

BLUISH GRAY,TRIM1#

sub71071-60316

main71071-60315-B8iGDJ76202311

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-60244-B7iGRJ7#201408-201507

BLUISH GRAY,TRIM1#

sub71072-60246

main71072-60T30-B0iGDJ76202311

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-60022-B5iGRJ79201408-201507

BLUISH GRAY,TRIM1#

sub71027-60024

main71073-60J90-B0iGRJ76201408-201507

BLUISH GRAY,TRIM1#

sub71073-60J91

main71027-60023-B6iGDJ76202311

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main70169-60012-B5iGRJ79201408-201507

BLUISH GRAY,TRIM1#

sub70169-60014

main71074-60K00-B0iGRJ76201408-201507

BLUISH GRAY,TRIM1#

sub71074-60K01

main70169-60013-B6iGDJ76202311

71389CSPACER, FRONT SEAT HINGE

main71389-60040×2iGRJ7#201408-201507

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-60022iGRJ7#201408-201507

main71501-60023iGDJ76202311

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71052-60020iGDJ76202311

main71502-60043iGRJ7#201408-201507

71521PAD, FRONT SEAT CUSHION SILENCER, A

main71521-60030×4iGRJ7#201408-201507

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-60011iGRJ79201408-201507

main71505-60012iGDJ76202311

main71505-60021iGRJ76201408-201507

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-60011iGRJ79201408-201507

main71506-60012iGDJ76202311

main71506-60021iGRJ76201408-201507

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-60091iGRJ7#201408-201507

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-60091iGRJ7#201408-201507

main71620-60B20iGDJ76202311

71811CCOVER, RECLINING ADJUSTER, RH

main71811-60020-B0iGRJ7#201408-201507

SHADOW GRAY,TRIM1#

71812CCOVER, RECLINING ADJUSTER, LH

main71812-60020-B0iGRJ7#201408-201507

SHADOW GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-60331-B0×2iGRJ79201408-201507

BLUISH GRAY,TRIM1#

sub71910-60J50

main71910-60500-B0×2iGRJ76201408-201507

BLUISH GRAY,TRIM1#

sub71910-60J40

main71910-60J10-B0×2iGDJ76202311

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-21×2iGDJ76202311

main71930-44020-B1×2iGRJ7#201408-201507

main71931-47010-B8×2iGRJ7#201408-201507

main71931-47010-C8×2iGDJ76202311

72053CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH

main72053-90K00-C0iGRJ7#201408-201507

BLACK,TRIM1#

72054ALEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH

main72054-90K00-C0iGRJ7#201408-201507

BLACK,TRIM1#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-60290iGRJ76201408-201507

main72110-60300iGRJ79201408-201507

main72110-60360iGDJ76202311

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-60310iGRJ76201408-201507

main72120-60320iGRJ79201408-201507

main72120-60380iGDJ76202311

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-60230iGRJ79201408-201507

main72130-60400iGRJ76201408-201507

72137COVER, SEAT TRACK, OUTER RH

main72137-60190-C0iGRJ79201408-201507

BLACK,TRIM1#

main72137-90K02-C0iGRJ76201408-201507

BLACK,TRIM1#

72137ACLIP (FOR SEAT TRACK COVER)

main90467-05090-C1×4iGRJ76201408-201507

BLACK,TRIM1#

72138COVER, SEAT TRACK, OUTER LH

main72137-60190-C0iGRJ79201408-201507

BLACK,TRIM1#

main72137-90K02-C0iGRJ76201408-201507

BLACK,TRIM1#

72140ATRACK ASSY, FRONT SEAT,INNER LH

main72140-60270iGRJ79201408-201507

main72140-60380iGRJ76201408-201507

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-60200-C0iGRJ79201408-201507

BLACK,TRIM1#

main72157-90K00-C0iGRJ76201408-201507

BLACK,TRIM1#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72157-60200-C0iGRJ79201408-201507

BLACK,TRIM1#

main72157-90K00-C0iGRJ76201408-201507

BLACK,TRIM1#

72205BPIN SUB-ASSY, SEAT TRACK OPEN LEVER

main72205-90K00×2iGRJ76201408-201507

72510DADJUSTER ASSY, RECLINING SEAT, OUTER RH

main72510-60090iGRJ76201408-201507

main72510-90K00iGRJ79201408-201507

72520DADJUSTER ASSY, RECLINING SEAT, OUTER LH

main72520-60060iGRJ76201408-201507

main72520-90K00iGRJ79201408-201507

9011908079

main90119-08079

9011910708

main90119-10708

9011910921

main90119-10921

9016740044

main90167-40044

9016840049

main90168-40049

9020214007

main90202-14007

9052308001

main90523-08001

9338315012

main93383-15012

40 parts on this diagram · 8 diagrams in section
