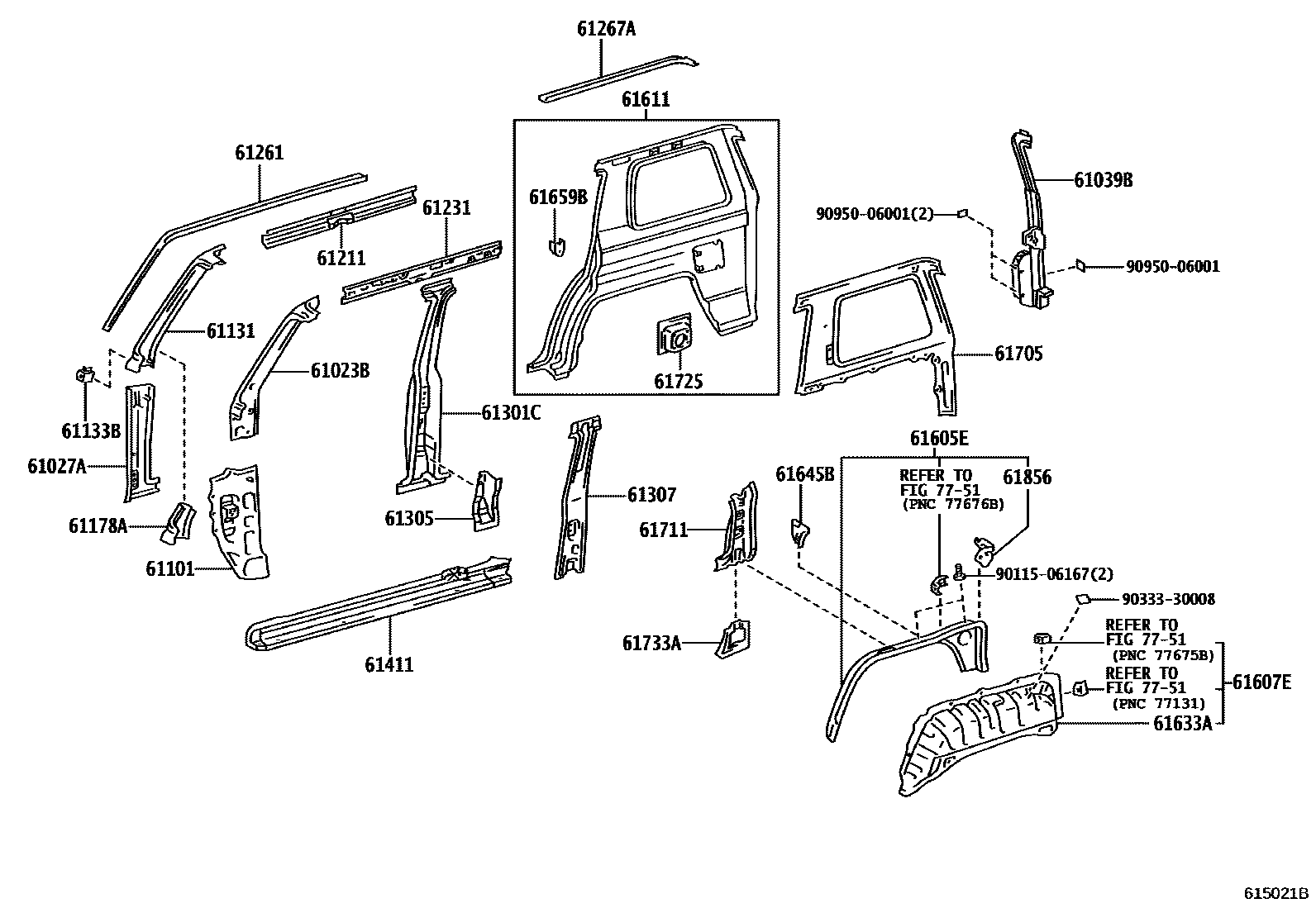

SIDE MEMBER
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61039BREINFORCE SUB-ASSY, REAR PILLAR, UPPER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61133BBRACKET, FRONT BODY PILLAR ,OUTER RH
61178AREINFORCEMENT, NO.1 PILLAR, LOWER RH
61211RAIL, ROOF SIDE, OUTER RH
61231RAIL, ROOF SIDE, INNER RH
61261CHANNEL, ROOF DRIP, RH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61605EPANEL, QUARTER, RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61659BRETAINER, REAR DOOR OPEN SWITCH SET, RH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61711PANEL, ROOF SIDE, OUTER RH
61725BOX, FUEL INLET
61733APANEL, ROOF SIDE, INNER FRONT RH
61856BRACKET, REAR WASHER TANK, LOWER
7751
9011506167
main90115-06167
9033330008
main90333-30008
9095006001
main90950-06001
30 parts on this diagram · 9 diagrams in section
