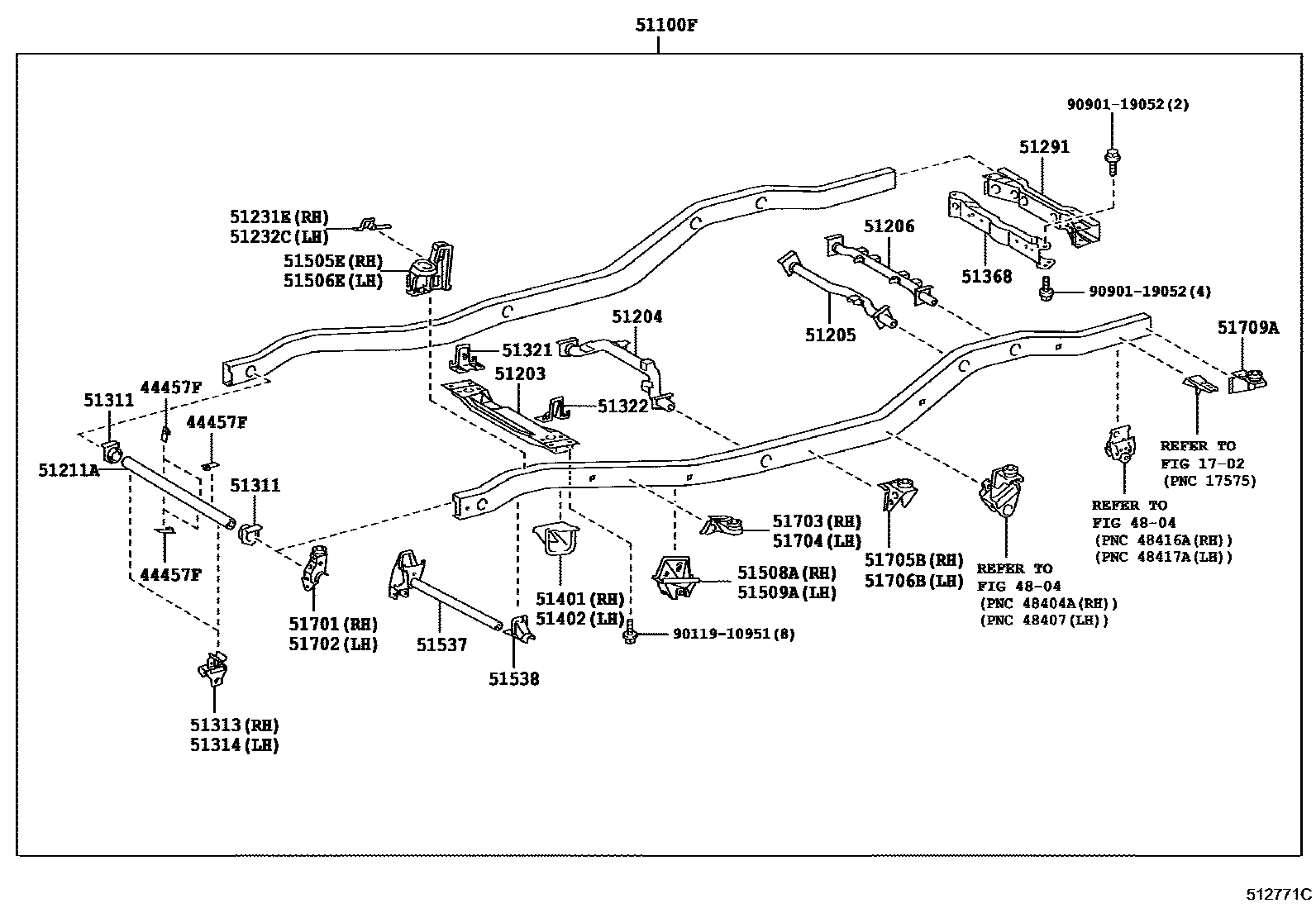

FRAME
1702
44457FBRACKET, TUBE SUPPORT
4804
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
51211ACROSSMEMBER, FRAME, FRONT
51231EBRACKET, FRONT SHOCK ABSORBER, LH
51232CBRACKET, FRONT SHOCK ABSORBER, LH
51311GUSSET, FRAME FRONT CROSSMEMBER
51313GUSSET, FRONT FRAME, LOWER RH
51314GUSSET, FRONT FRAME, LOWER LH
51321GUSSET, CROSSMEMBER, NO.2 RH
51322GUSSET, CROSSMEMBER, NO.2 LH
51368MEMBER, FRAME FUEL TANK MOUNTING
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51505EBRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH
51506EBRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH
51508ABRACKET SUB-ASSY, LOWER ARM, RH
51509ABRACKET SUB-ASSY, LOWER ARM, LH
51537BRACKET, LATERAL ROD SUPPORT
51538STAY, LATERAL ROD SUPPORT
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
9011910951
main90119-10951
9090119052
main90901-19052
35 parts on this diagram · 4 diagrams in section
