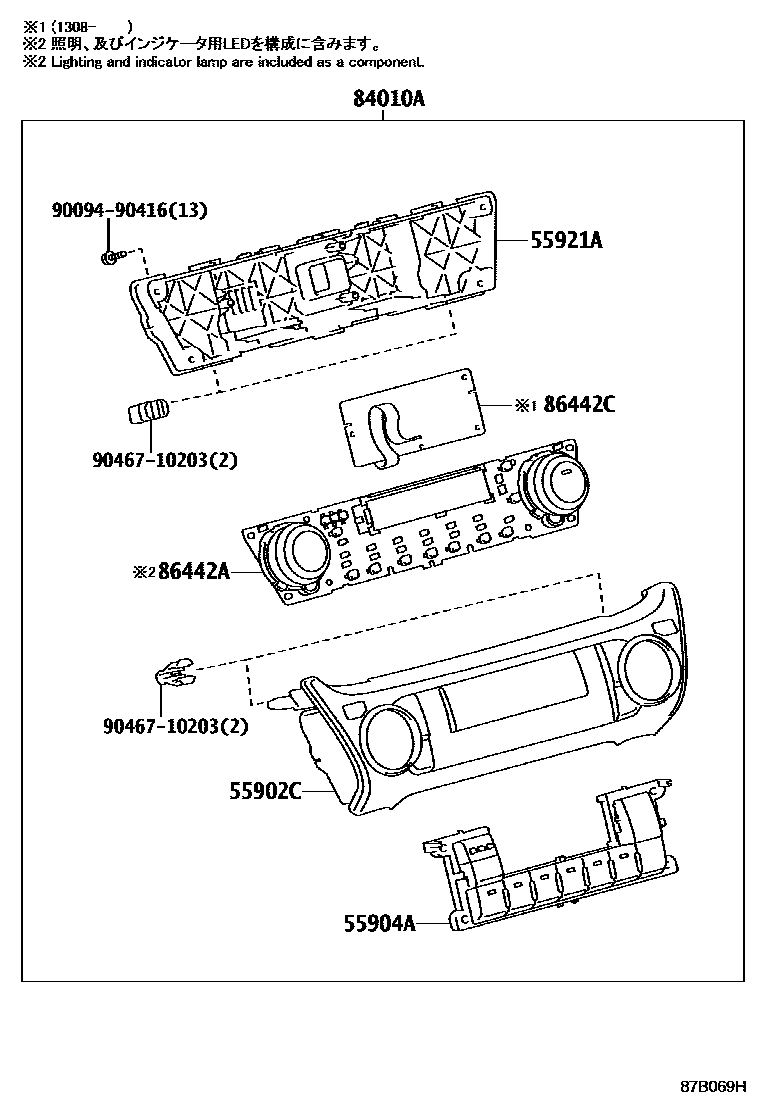

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1��������� 0002 1������ 0003 1���

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-60200-C0iGRJ15#,TRJ150200908-201308

BLACK,TRIM1#

main55902-60200-E0iGRJ15#,TRJ150200908-201308

DK. BROWN,TRIM0#

main55902-60330-C0iGDJ15#,TRJ150201506-201708

BLACK,TRIM2#

main55902-60330-E0iGRJ15#,TRJ150201308-201506

ORCHID BROWN,TRIM0#

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-60070iGRJ15#,TRJ150201308-201506

main55904-60080supersedes 55904-60070iTRJ150..07S200908-201308

55921ARETAINER, HEATER CONTROL

main55921-60040iGRJ15#,TRJ150200908-201105

main55921-60080iGRJ15#,TRJ150201105-201308

84010ACONTROL & PANEL ASSY, INTEGRATION

main84010-60E70-C0iGDJ15#,TRJ150201506-201708

BLACK,TRIM2#

main84010-60E70-E0iGRJ15#,TRJ150201308-201506

ORCHID BROWN,TRIM0#

main84010-60890-C0iTRJ150..07S200908-201105

main84010-60890-E0supersedes 84010-60B40-E0iTRJ150..07S200908-201105

main84010-60B50-C0supersedes 84010-60B40-C0iTRJ150..07S201105-201308

main84010-60B50-E0supersedes 84010-60B40-E0iTRJ150..07S201105-201308

86442ABOARD, HEATER CONTROL SWITCH

main86442-60090iGRJ15#,TRJ150200908-201105

main86442-60190iGRJ15#,TRJ150201105-201308

main86442-60370iGRJ15#,TRJ150201308-201506

86442CBOARD, HEATER CONTROL SWITCH, NO.2

main86442-60380iGRJ15#,TRJ150201308-201506

9009490416

main90094-90416

9046710203

main90467-10203

8 parts on this diagram · 3 diagrams in section
