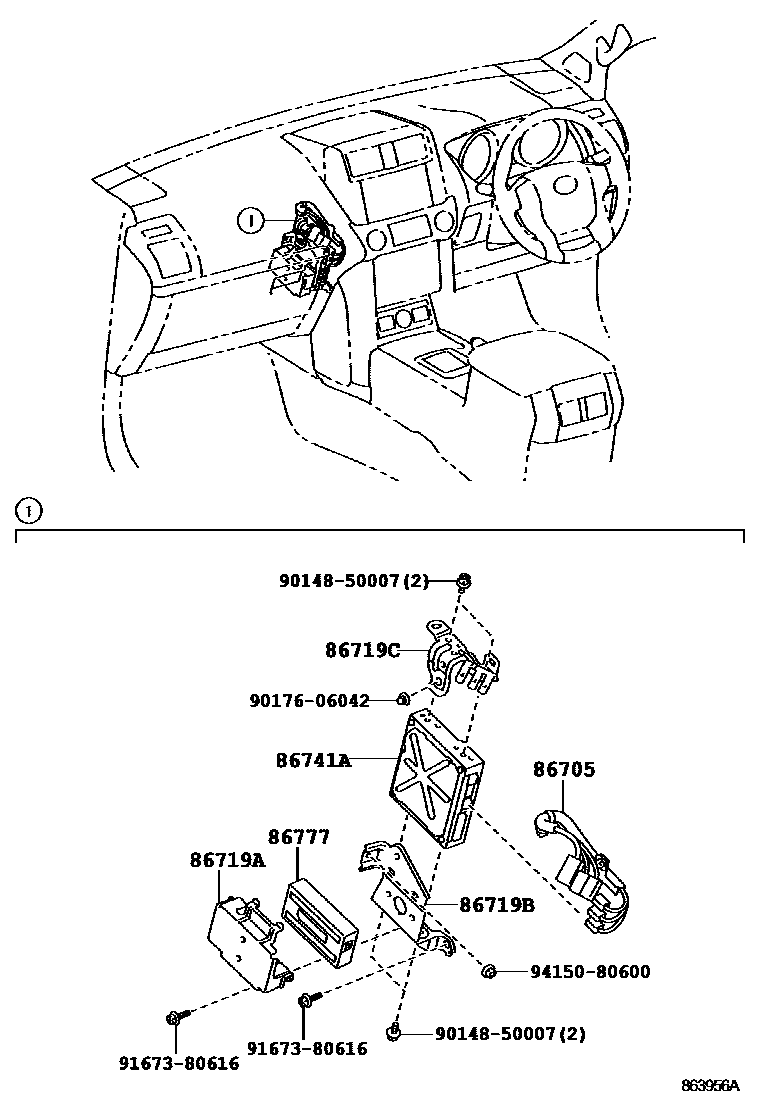

TELEPHONE & MAYDAY

0001 1 0002 1

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-60240iGRJ15#,TRJ150200908-201308

main86705-60360iGDJ15#,TRJ150201506

main86705-60360iGRJ15#,TRJ150201308-201506

86719ABRACKET, TELEPHONE NO.1

main86719-60170iGRJ15#,TRJ150201308-201506

main86719-60170iGRJ15#,TRJ150200908-201308

main86719-60170iGDJ15#,TRJ150201506-201608

86719BBRACKET, TELEPHONE NO.2

main86719-60150iGRJ15#,TRJ150200908-201308

main86719-60150iGRJ15#,TRJ150201308-201506

main86719-60150iGDJ15#,TRJ150201506-201608

86719CBRACKET, TELEPHONE NO.3

main86719-60160iGDJ15#,TRJ150201506-201608

main86719-60160iGRJ15#,TRJ150200908-201308

main86719-60160iGRJ15#,TRJ150201308-201506

86741ATRANSCEIVER, TELEMATICS

main86740-60230iGDJ15#,TRJ150201608

main86741-30111iGRJ15#,TRJ150201308-201506

sub86741-30112

main86741-30112iGDJ15#,TRJ150201506-201608

sub86740-58110

sub86740-60230

main86741-48030iGRJ15#,TRJ150200908-201201

sub86741-48032

main86741-48031iGRJ15#,TRJ150201202-201206

sub86741-48032

main86741-48032iGRJ15#,TRJ150201207-201308

86777BATTERY, MAYDAY

main86777-0W051iGRJ15#,TRJ150200908-201210

sub86777-76030

main86777-76030iGRJ15#,TRJ150201211-201308

main86777-76040iGRJ15#,TRJ150201308-201506

main86777-76040iGDJ15#,TRJ150201506-201608

9014850007

main90148-50007

9017606042

main90176-06042

9167380616

main91673-80616

9415080600

main94150-80600

10 parts on this diagram · 2 diagrams in section
