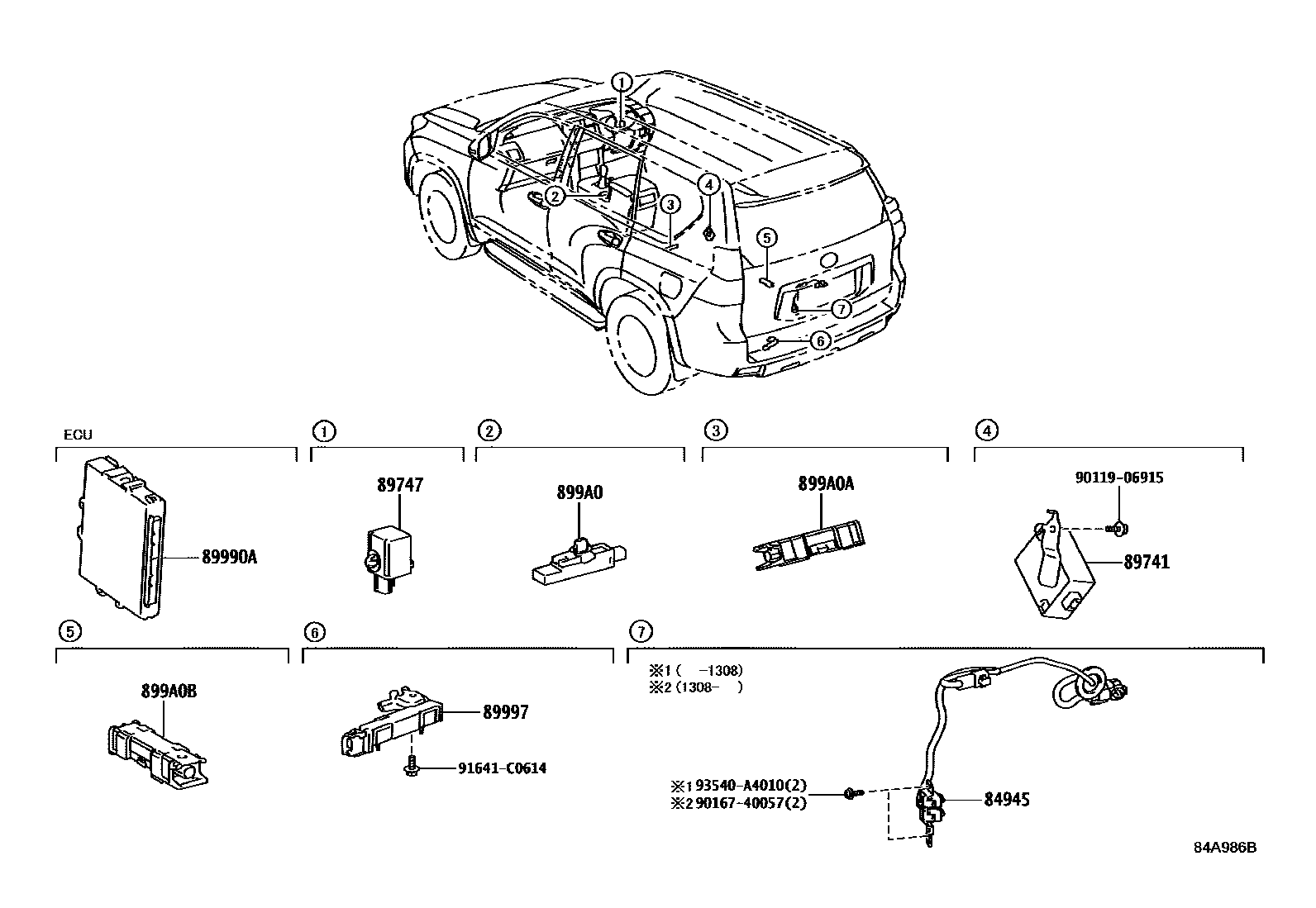

WIRELESS DOOR LOCK

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84905-60010iGRJ15#,TRJ150200908-201308

89741RECEIVER, DOOR CONTROL

main89740-60060iGRJ15#,TRJ150200908-201308

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGRJ15#,TRJ150200908-201308

89990ACOMPUTER ASSY, SMART KEY

main89990-60190iGRJ15#,TRJ150200908-201012

main89990-60191iGRJ15#,TRJ150201101-201110

sub89990-60630

main89990-60192iGRJ15#,TRJ150201110-201210

sub89990-60640

main89990-60193iGRJ15#,TRJ150201210-201308

main89990-60194iGRJ15#,TRJ150201311-201408

sub89990-60520

main89990-60195iGRJ15#,TRJ150201408-201506

sub89990-60530

main89990-60196iGDJ15#,TRJ150201506-201608

sub89990-60197

main89990-60480iGDJ15#,TRJ150201608-201701

main89990-60481iGDJ15#,TRJ150201702

sub89990-60482

89997ANTENNA, ELECTRICAL KEY

main89997-60060iGRJ15#,TRJ150200908-201308

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iGRJ15#,TRJ150200908-201308

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60020iGRJ15#,TRJ150200908-201308

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-60020iGRJ15#,TRJ150200908-201308

9011906915

main90119-06915

9016740057

main90167-40057

91641C0614

main91641-C0614

93540A4010

main93540-A4010

12 parts on this diagram · 1 diagram in section
