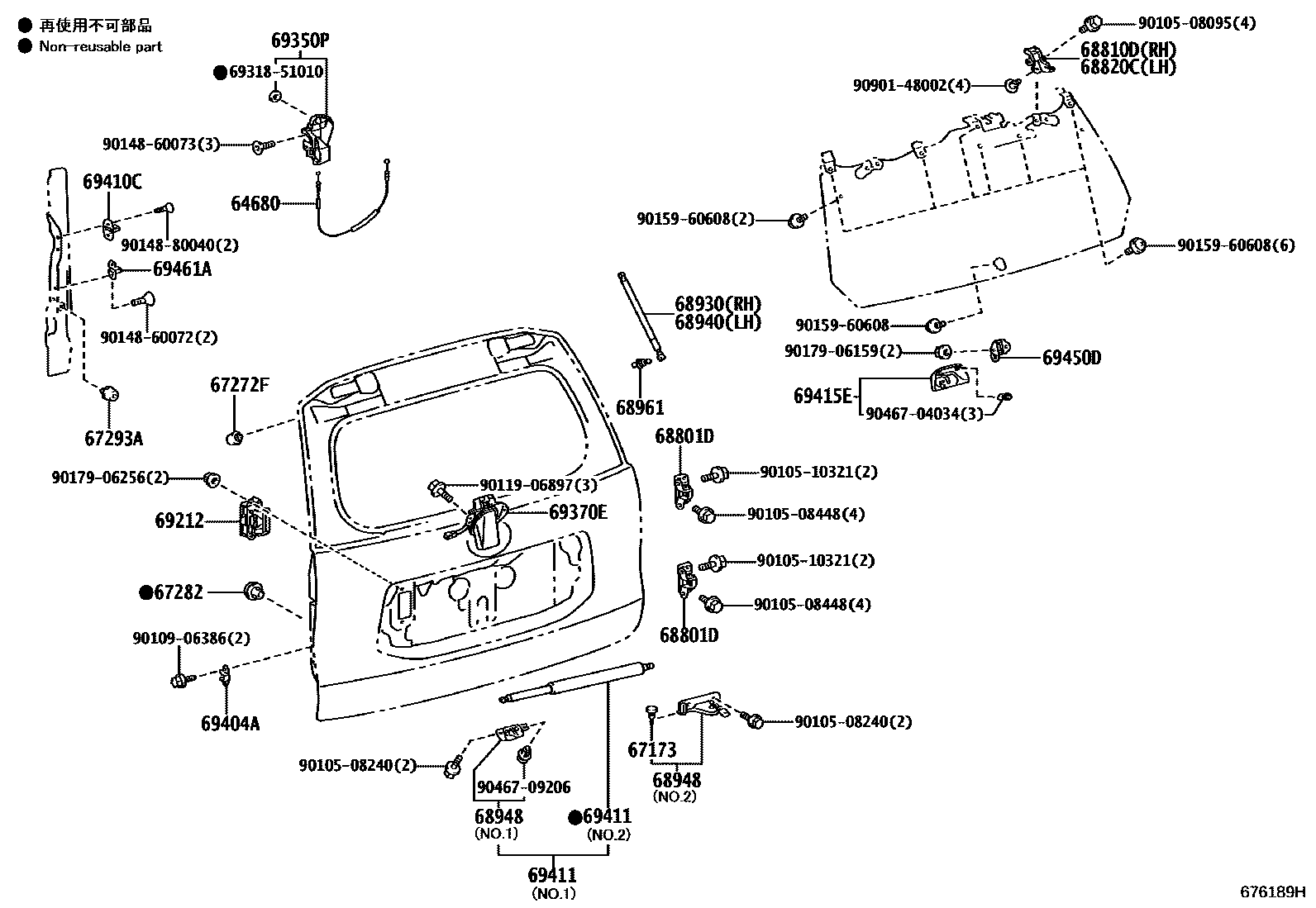

BACK DOOR LOCK & HINGE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-60010iGRJ15#,TRJ150201308-201506

67173CUSHION, BACK DOOR

main90541-03005iGRJ15#,TRJ150200908-201308

67272FCUSHION, BACK DOOR STOPPER, NO.2

main67272-60050iGRJ15#,TRJ150200908-201308

67282STOPPER, BACK DOOR, NO.1

main67282-46010iGRJ15#,TRJ150200908-201308

67293ACUSHION, BACK DOOR STOPPER

main67293-60040iGRJ15#,TRJ150200908-201308

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-60050×2iGRJ15#,TRJ150200908-201308

main68801-60051×2iGDJ15#,TRJ150201506-201511

main68801-60052×2iGDJ15#,TRJ150201512

68810DHINGE ASSY, BACK DOOR, RH

main68810-60050iGRJ15#,TRJ150200908-201203

main68810-60051iGRJ15#,TRJ150201204-201308

68820CHINGE ASSY, BACK DOOR, LH

main68820-60010iGRJ15#,TRJ150200908-201203

main68820-60011iGRJ15#,TRJ150201204-201308

68930STAY ASSY, BACK WINDOW, RH

main68930-0W010iGRJ15#,TRJ150200908-201308

68940STAY ASSY, BACK WINDOW, LH

main68940-0W010iGRJ15#,TRJ150200908-201308

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-60010iGRJ15#,TRJ150200908-201308

main68948-60020iGDJ15#,TRJ150201506

68961BOLT, BACK DOOR STAY

main68961-20140×2iGRJ15#,TRJ150200908-201308

69212HANDLE, BACK DOOR OUTSIDE, LH

main69190-60010iGRJ15#,TRJ150200908-201210

main69190-60011iGRJ15#,TRJ150201211-201308

main69190-60012iGRJ15#,TRJ150201503-201506

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69110-60230iGRJ15#,TRJ150200908-201204

main69110-60231iGRJ15#,TRJ150201205-201302

main69110-60232iGRJ15#,TRJ150201303-201308

main69110-60233iGDJ15#,TRJ150201512-201708

69370ELOCK ASSY, BACK WINDOW

main69370-60020iGRJ15#,TRJ150200908-201308

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69403-60011iGRJ15#,TRJ150200908-201308

main69403-60020iGDJ15#,TRJ150201506

sub69403-60021

sub90119-06911

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-60020iGRJ15#,TRJ150201308-201506

69411CHECK, BACK DOOR

main68650-09010iGRJ15#,TRJ150200908-201308

main68650-09020iGDJ15#,TRJ150201506-201708

main68650-0W010iGRJ15#,TRJ150200908-200911

main68650-0W011iGRJ15#,TRJ150200912-201205

main68650-0W012iGRJ15#,TRJ150201308-201505

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-60010iGDJ15#,TRJ150201506

69450DSTRIKER ASSY, BACK WINDOW LOCK

main69450-60050iGRJ15#,TRJ150200908-201308

69461ASTOPPER, BACK DOOR SIDE MALE

main69461-60010iGRJ15#,TRJ150200908-201308

6931851010SEAL, FRONT DOOR LOCK HOLE, LH

main69318-51010

9010508095

main90105-08095

9010508240

main90105-08240

9010508448

main90105-08448

9010510321

main90105-10321

9010906386

main90109-06386

9011906897

main90119-06897

9014860072

main90148-60072

9014860073

main90148-60073

9014880040

main90148-80040

9015960608

main90159-60608

9017906159

main90179-06159

9017906256

main90179-06256

9046704034

main90467-04034

9046709206

main90467-09206

9090148002

main90901-48002

37 parts on this diagram · 1 diagram in section
