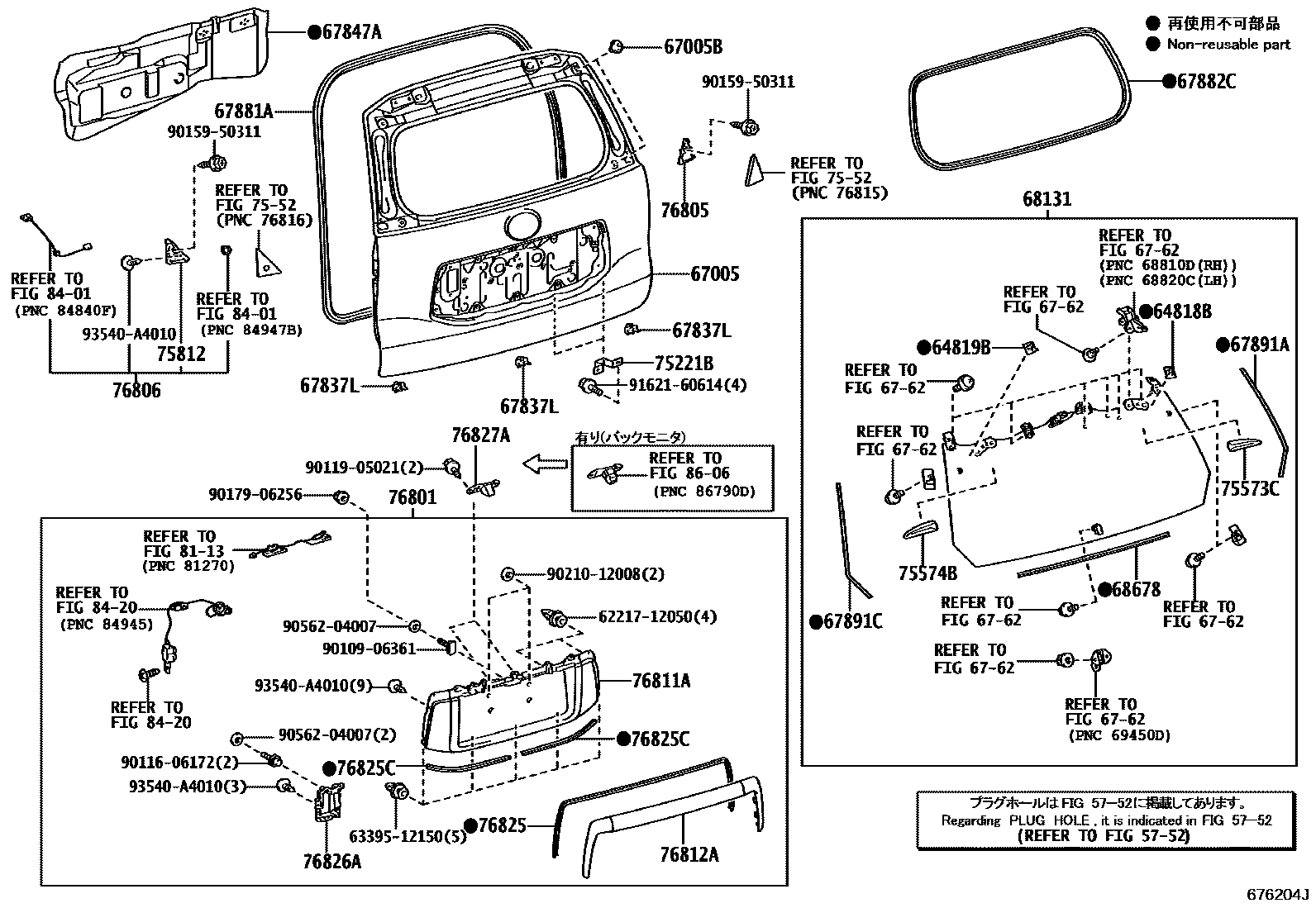

BACK DOOR PANEL & GLASS
5752
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
6762
67837LSEAL, DOOR DUST PROOF
67847ACOVER, BACK DOOR SERVICE HOLE
67881AWEATHERSTRIP, BACK DOOR
67882CWEATHERSTRIP, BACK DOOR, NO.2
67891ASEAL, BACK DOOR
67891CSEAL, BACK DOOR
68131GLASS, BACK DOOR
68678PROTECTOR, BACK DOOR WINDOW
75221BBRACKET, TOOL BOX
7552
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
75812MOULDING, BACK DOOR, OUTSIDE UPPER RH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
76805GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER RH
76806GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER LH
76811AGARNISH, BACK DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
DK. STEEL MC.,1H2
BLACK,202
ATTITUDE BLACK MC.,218
BRONZE M.M.,4T3
DK.GREEN MC.,6V4
DK.BLUE ME.,8S6
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
76826ARETAINER, BACK DOOR GARNISH, NO.1
76827ARETAINER, BACK DOOR GARNISH, NO.2
8113
8401
8420
8606
6221712050COVER, RAIL ROOF SIDE, INNER CENTER
main62217-12050
6339512150CLIP, ROOF HEADLINING TRIM
main63395-12150
9010906361
main90109-06361
9011606172
main90116-06172
9011905021
main90119-05021
9015950311
main90159-50311
9017906256
main90179-06256
9021012008
main90210-12008
9056204007
main90562-04007
9162160614
main91621-60614
93540A4010
main93540-A4010
43 parts on this diagram · 3 diagrams in section
