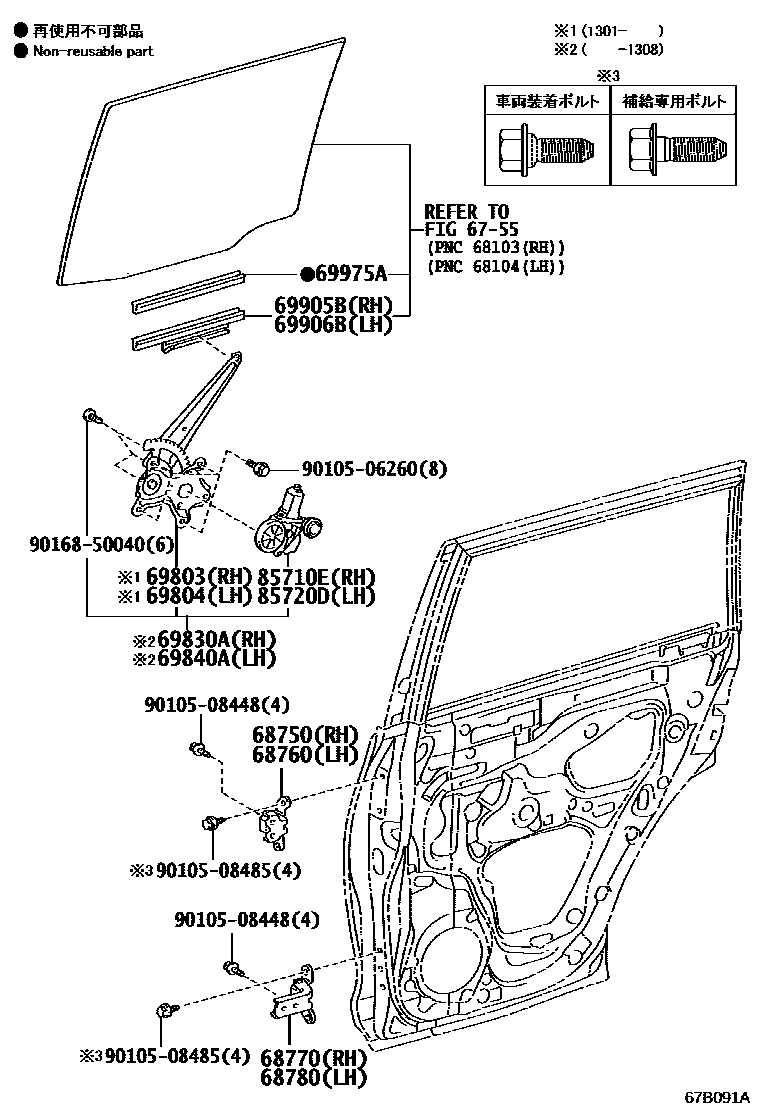

REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iGRJ15#,TRJ150200908-201205

main68750-20122iGRJ15#,TRJ150201206-201308

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iGRJ15#,TRJ150200908-201205

main68760-20122iGRJ15#,TRJ150201206-201308

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iGRJ15#,TRJ150200908-201308

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iGRJ15#,TRJ150200908-201308

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-60070iGRJ15#,TRJ150201301-201308

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-60070iGRJ15#,TRJ150201301-201308

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-60110iGRJ15#,TRJ150200908-201110

main69830-60111iGRJ15#,TRJ150201111-201212

main69830-60160iGRJ15#,TRJ150201301-201308

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-60110iGRJ15#,TRJ150200908-201110

main69840-60111iGRJ15#,TRJ150201111-201212

main69840-60160iGRJ15#,TRJ150201301-201308

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52050iGRJ15#,TRJ150200908-201308

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52050iGRJ15#,TRJ150201308-201506

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iGRJ15#,TRJ150200908-201308

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-60270iGRJ15#,TRJ150201007-201008

main85720-60300iGRJ15#,TRJ150201301-201308

main85720-60320iGDJ15#,TRJ150201506

main85720-75030iGRJ15#,TRJ150201008-201011

main85720-75070iGRJ15#,TRJ150201012-201301

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-60290iGRJ15#,TRJ150201007-201008

main85710-60330iGRJ15#,TRJ150201301-201308

main85710-60340iGDJ15#,TRJ150201506

main85710-75030iGRJ15#,TRJ150201008-201011

main85710-75070iGRJ15#,TRJ150201012-201301

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

18 parts on this diagram · 1 diagram in section
