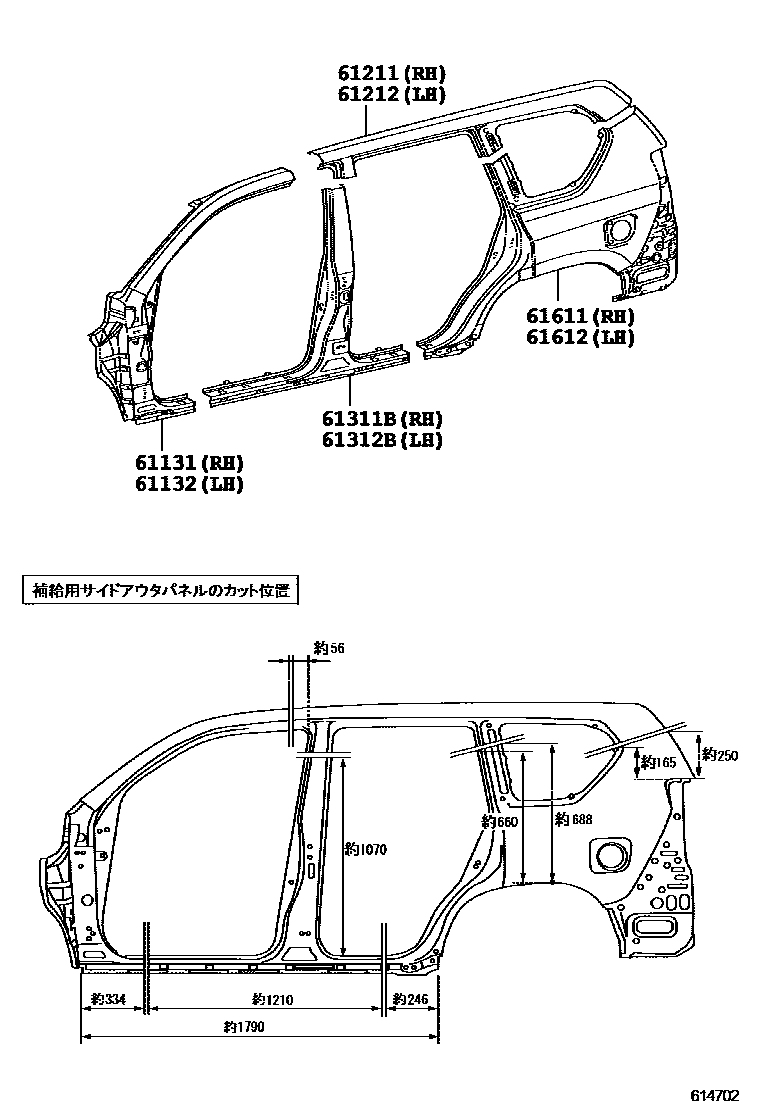

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-60260iGRJ15#,TRJ150200908-201506

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-60230iGRJ15#,TRJ150200908-201506

61211RAIL, ROOF SIDE, OUTER RH

main61211-60080iGRJ15#,TRJ150200908-201506

61212RAIL, ROOF SIDE, OUTER LH

main61212-60080iGRJ15#,TRJ150200908-201506

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60190iGRJ15#,TRJ150200908-201506

61312BPILLAR, CENTER BODY, OUTER LH

main61312-60250iGRJ15#,TRJ150200908-201506

61611PANEL, QUARTER, RH

main60161-60B70iGRJ15#,TRJ150200908-201506

61612PANEL, QUARTER, LH

main60162-60B30iGDJ15#,TRJ150200908-201506

8 parts on this diagram · 3 diagrams in section
