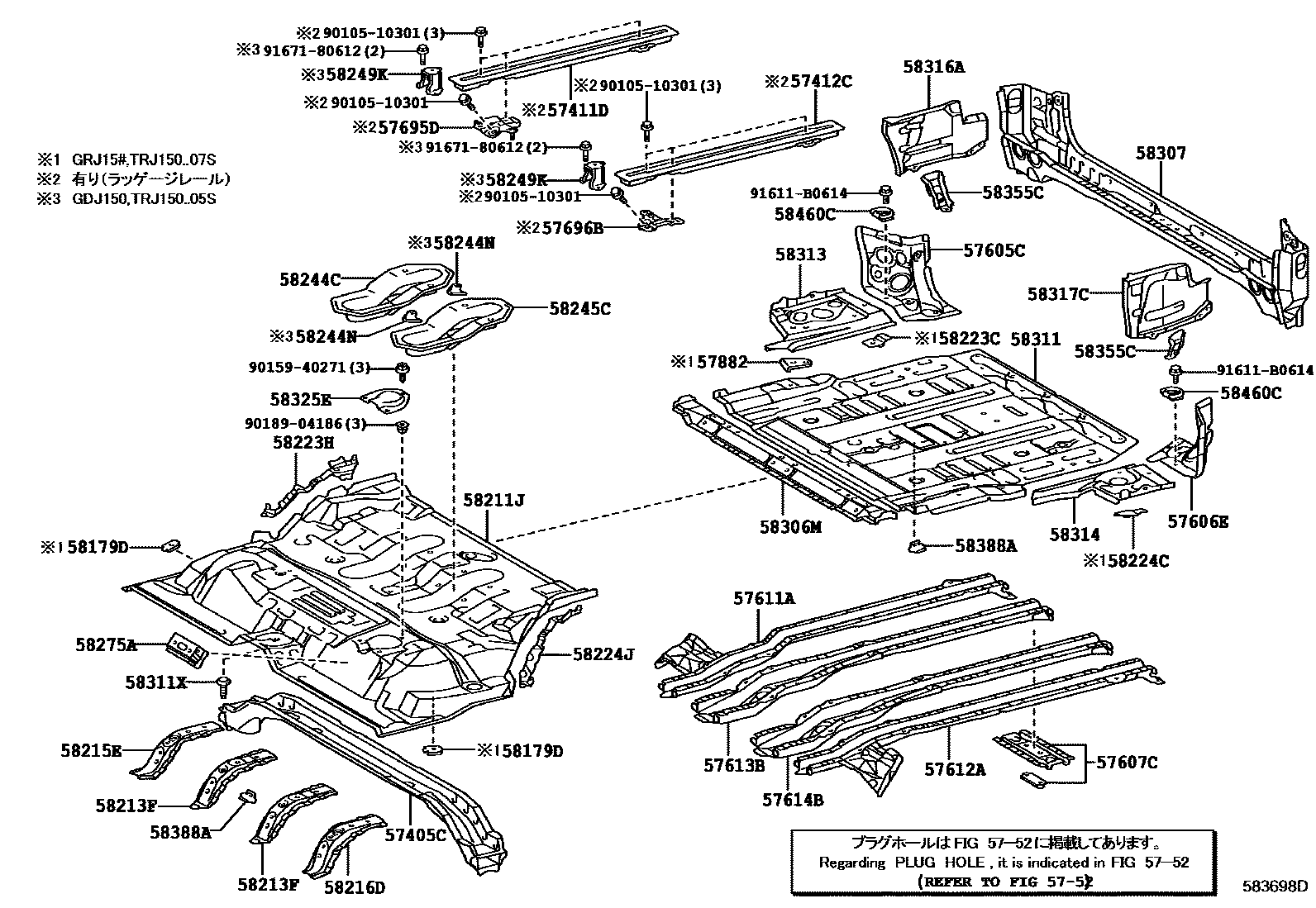

REAR FLOOR PANEL & REAR FLOOR MEMBER
57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57411DRAIL, FLOOR SIDE, RH
57412CRAIL, FLOOR SIDE, LH
5752
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57611AMEMBER, REAR FLOOR SIDE, RH
sub57601-60201
57612AMEMBER, REAR FLOOR SIDE, LH
sub57602-60161
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH
57882REINFORCEMENT, BELT ANCHOR, NO.4
58179DBRACKET, CLAMP FLOOR
58211JPAN, CENTER FLOOR
58213FREINFORCEMENT, CENTER FLOOR PANEL
58215EBRACKET, REAR SEAT MOUNTING, RH
sub58215-60041
58216DBRACKET, REAR SEAT MOUNTING, LH
sub58216-60031
58223CREINFORCEMENT, SEAT SET, NO.1
58223HREINFORCEMENT, FLOOR PANEL SIDE, RH
58224CREINFORCEMENT, SEAT SET, NO.2
58224JREINFORCEMENT, FLOOR PANEL SIDE, LH
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58244NSTOPPER, REAR SEAT CUSHION BRACKET
58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH
58249KBRACKET, CENTER FLOOR BOARD SUPPORT
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58307PANEL SUB-ASSY, BODY LOWER BACK
sub58307-60281
58311PAN, REAR FLOOR
58311XBOLT, REAR FLOOR WELD
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58355CBRACKET, REAR BUMPER ARM
58388ABRACKET,REAR FLOOR PLATE
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
9010510301
main90105-10301
9015940271
main90159-40271
9018904186
main90189-04186
91611B0614
main91611-B0614
9167180612
main91671-80612
45 parts on this diagram · 1 diagram in section
