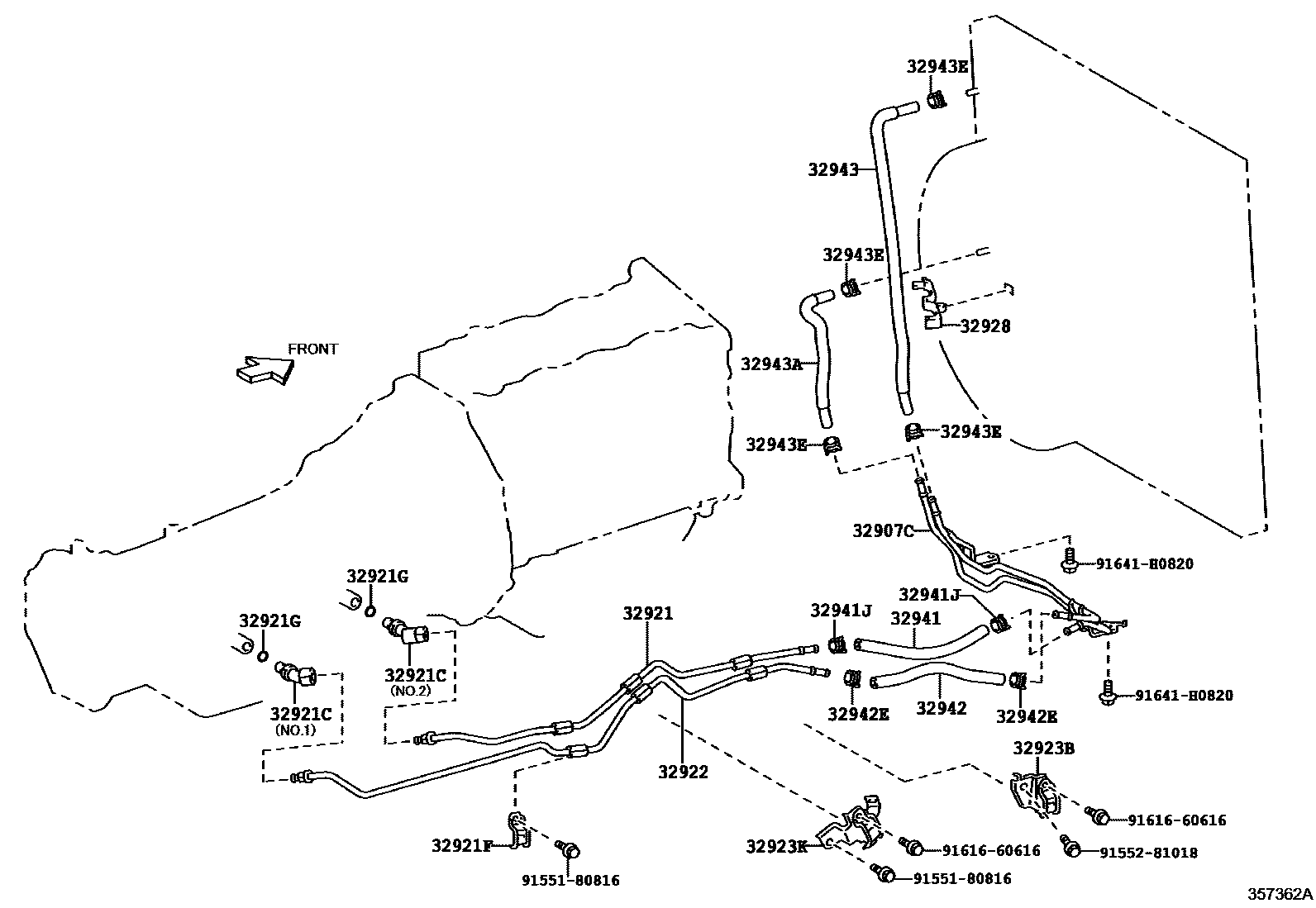

OIL COOLER & TUBE (ATM)

0001 1A343F 0002 1A750F 0003 1AC60F 0004 1AC60F

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-60280iGRJ15#201308-201506

main32907-60300iTRJ150200908-201308

sub32907-60301

main32907-60350iGDJ15#201506

32921TUBE, OIL COOLER INLET, NO.1

main32921-60230iGRJ15#201308-201506

main32921-60240iTRJ150201308-201506

main32921-60440iTRJ150201506

main32921-60470iGDJ15#201506

32921CUNION(FOR OIL COOLER TUBE)

main90407-14033×2iGRJ15#200908-201308

sub90407-14034

main90407-16009iTRJ150201308-201506

main90407-16012iTRJ150201308-201506

32921FCLAMP(FOR OIL COOLER TUBE)

main32928-60190iGDJ15#,TRJ150201506

main32929-24060iTRJ150200908-201308

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iGDJ15#,TRJ150201506

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60250iGRJ15#200908-201308

main32922-60260iTRJ150200908-201308

main32922-60470iTRJ150201506

main32922-60500iGDJ15#201506

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32928-60170iGRJ15#200908-201308

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32909-60180iTRJ150200908-201308

main32909-60240iTRJ150201506

main32909-60280iGDJ15#201506

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32909-60171iTRJ150200908-201308

main32909-60230iTRJ150201506

main32909-60270iGDJ15#201506

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-34030iGRJ15#200908-201308

main32928-60100iTRJ150200908-201308

32941HOSE, OIL COOLER INLET, NO.1

main32941-60370iGRJ15#201308-201506

main32941-60410iTRJ150201506

main32941-60430iGDJ15#201506

main90445-17124iTRJ150201308-201506

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×2iTRJ150201308-201506

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-60510iTRJ150200908-201308

main32942-60530iGRJ15#200908-201308

main32942-60570iTRJ150201506

main32942-60590iGDJ15#201506

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iTRJ150200908-201308

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-35030iGRJ15#200908-201308

main32943-60550iTRJ150201308-201506

main32943-60710iTRJ150201506

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-60560iTRJ150201308-201506

main32943-60590iGRJ15#200908-201308

main32943-60720iTRJ150201506

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×8iTRJ150200908-201308

9155180816

main91551-80816

9155281018

main91552-81018

9161660616

main91616-60616

91641H0820

main91641-H0820

21 parts on this diagram · 4 diagrams in section
