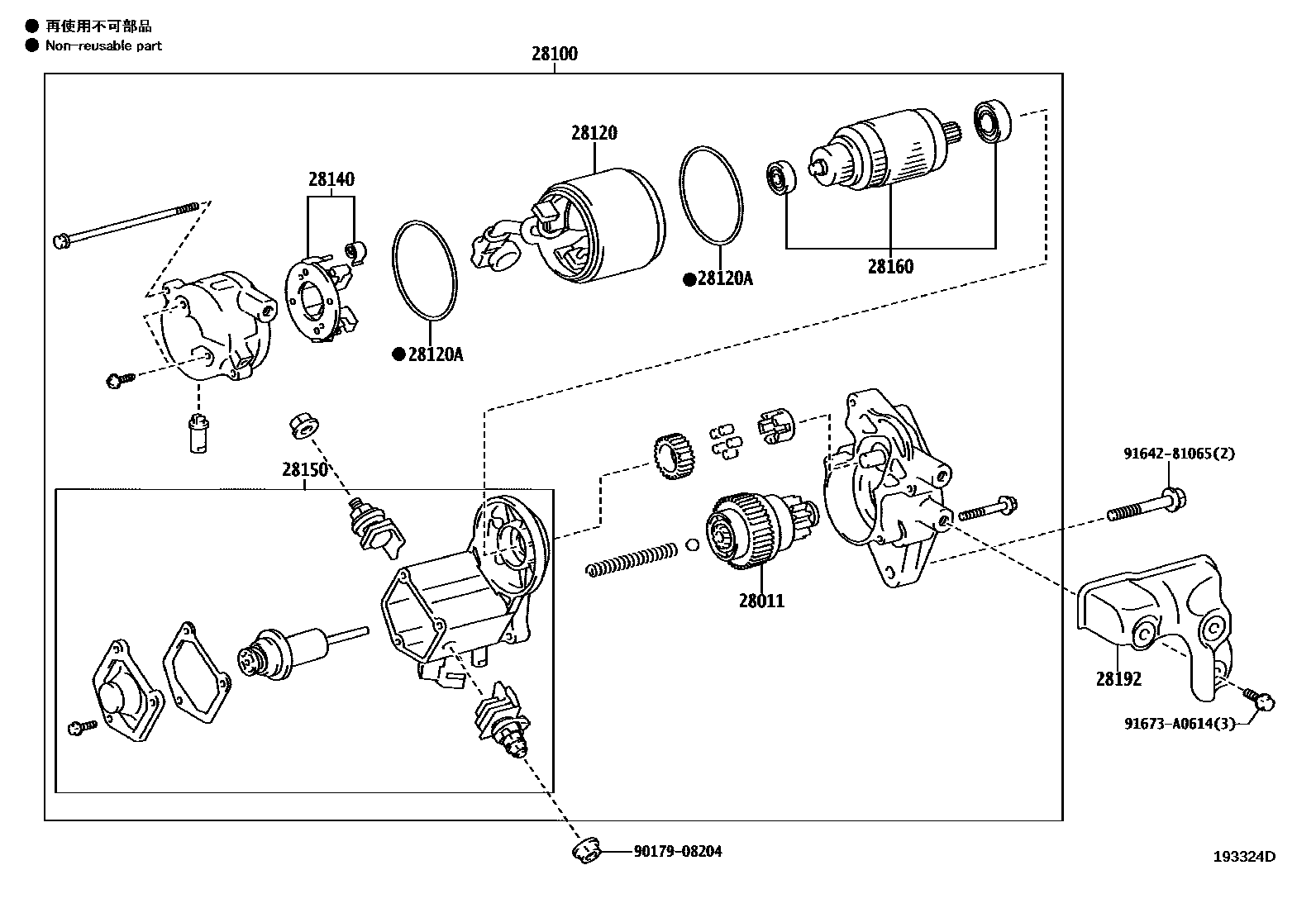

STARTER

0001 112V 1.4KW 0002 112V 1.6KW 0003 112V 2.0KW 0004 112V 2.7KW

28011CLUTCH SUB-ASSY, STARTER

main28011-66020i1GRFE..GRJ15#201308-201506

main28011-30050i1GDFTV..GDJ15#201506

28100STARTER ASSY

main28100-31131i1GRFE..GRJ15#200908-201308

main28100-75210i2TRFE..TRJ150201506

main28100-30051supersedes 28100-11190i1GDFTV..GDJ15#201506

28120YOKE ASSY, STARTER

main28120-66040i1GRFE..GRJ15#200908-201308

main28120-75210i2TRFE..TRJ150201506

main28120-67020supersedes 28120-0L180i1GDFTV..GDJ15#201506

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i1GRFE..GRJ15#200908-201308

28140HOLDER ASSY, STARTER BRUSH

main28140-35060i1GRFE..GRJ15#200908-201308

main28140-37050i2TRFE..TRJ150200908-201308

main28140-77090supersedes 28140-0L180i1GDFTV..GDJ15#201506

28150SWITCH ASSY, MAGNET STARTER

main28150-31130i1GRFE..GRJ15#200908-201308

main28150-40130i2TRFE..TRJ150201506

main28150-30050supersedes 28150-40090i1GDFTV..GDJ15#201506

28160ARMATURE ASSY, STARTER

main28160-37050i2TRFE..TRJ150201506

sub28160-75210

main28160-74070i1GRFE..GRJ15#200908-201308

main28160-54140supersedes 28160-37100i1GDFTV..GDJ15#201506

28192COVER, STARTER

main28192-31010i1GRFE..GRJ15#200908-201308

9017908204

main90179-08204

9164281065

main91642-81065

91673A0614

main91673-A0614

11 parts on this diagram · 4 diagrams in section
