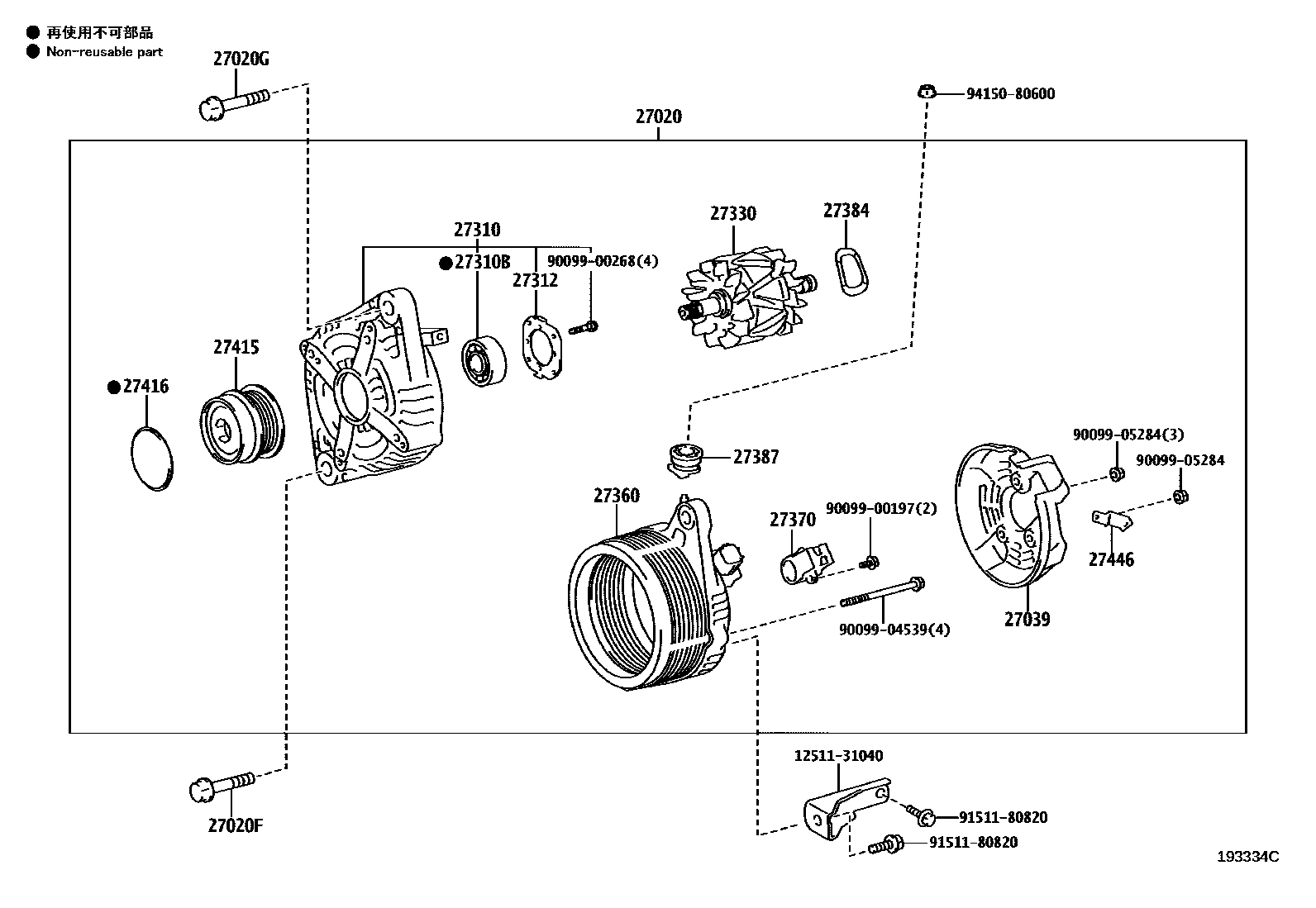

ALTERNATOR

0001 112V 100A,130A,150A 0002 112V 100A 0003 112V 100A,130A 0004 112V 100A

27020ALTERNATOR ASSY

main27060-31180i1GRFE..GRJ15#200908-201308

sub27060-31260

main27060-75450i2TRFE..TRJ150201308-201506

main27060-75550i2TRFE..TRJ150201506

main27060-11350supersedes 27060-11180i1GDFTV..GDJ15#201506

main27060-31230supersedes 27060-31260i1GRFE..GRJ150201308-201506

27020FBOLT, NO.1(FOR ALTERNATOR)

main91552-81040i1GRFE,2TRFE..GRJ15#,TRJ150200908-201308

main91552-81090i1GDFTV..GDJ15#201506

27020GBOLT, NO.2(FOR ALTERNATOR)

main91552-81070i1GRFE..GRJ15#200908-201308

main91552-81085i2TRFE..TRJ150201308-201506

27039COVER, ALTERNATOR REAR END

main27039-11290i1GDFTV..GDJ15#201506

main27039-31390i1GRFE,2TRFE..GRJ15#,TRJ150200908-201308

main27039-37220i2TRFE..TRJ150201506

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31430i1GRFE..GRJ15#200908-201308

main27310-75270i2TRFE..TRJ150201308-201506

main27310-75510i2TRFE..TRJ150201506

main27310-30240supersedes 27310-11280i1GDFTV..GDJ15#201506

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i1GRFE,2TRFE..GRJ15#,TRJ150200908-201308

27312PLATE, RETAINER

main27312-72100i1GDFTV,2TRFE..GDJ15#,TRJ150201506

27330ROTOR ASSY, ALTERNATOR

main27330-30070i1GRFE,2TRFE..GRJ150,TRJ150201308-201506

main27330-47330i1GDFTV,2TRFE..GDJ15#,TRJ150201506

main27330-37220i1GDFTV..GDJ15#201506

main27330-58460supersedes 27330-33090i1GRFE..GRJ150201308-201506

27360COIL ASSY, ALTERNATOR

main27360-31390i1GRFE..GRJ15#200908-201308

main27360-31400supersedes 27360-31520i1GRFE..GRJ150201308-201506

main27360-75450i2TRFE..TRJ150201308-201506

main27360-75510i2TRFE..TRJ150201506

main27360-11290supersedes 27360-11280i1GDFTV..GDJ15#201506

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i1GRFE..GRJ15#200908-201308

main27370-58460i2TRFE..TRJ150201308-201506

27384WASHER

main27384-50030i1GRFE,2TRFE..GRJ15#,TRJ150200908-201308

27387INSULATOR, TERMINAL

main27387-20130i1GRFE,2TRFE..GRJ15#,TRJ150200908-201308

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W062i2TRFE..TRJ150200908-201308

main27415-0W063i2TRFE..TRJ150201310-201506

main27415-0W130i1GRFE..GRJ15#200908-201306

main27415-0W131i1GRFE..GRJ15#201307-201308

main27415-30010i1GDFTV..GDJ15#201506-201708

27416CAP, ALTERNATOR PULLEY

main27416-0W020i2TRFE..TRJ150200908-201308

main27416-0W050i2TRFE..TRJ150201506-201708

main27416-30010i1GDFTV..GDJ15#201506-201708

sub27416-30020

27446CLIP, ALTERNATOR CORD

main27446-31390i1GRFE..GRJ15#200908-201308

1251131040BRACKET, ALTERNATOR, NO.1

main12511-31040

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9151180820

main91511-80820

9415080600

main94150-80600

22 parts on this diagram · 4 diagrams in section
