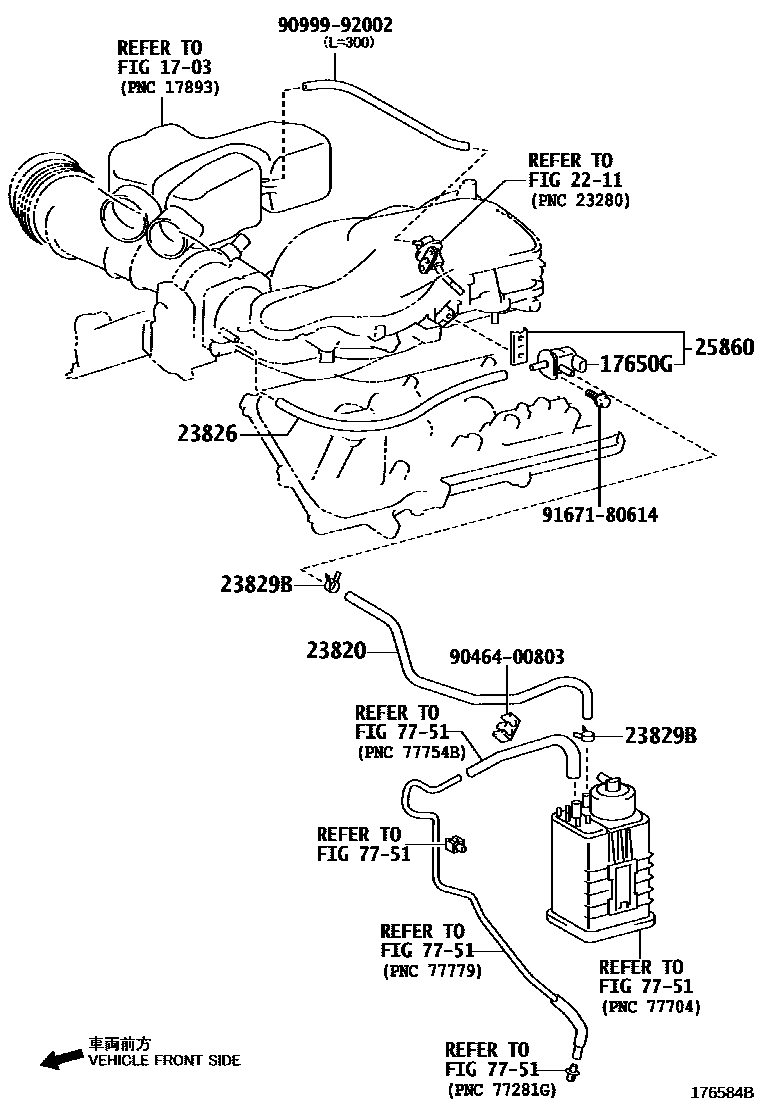

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

1703

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i1GRFE..GRJ15#200908-201506

2211

23820HOSE ASSY, FUEL VAPOR FEED

main23820-31200i1GRFE..GRJ15#200908-201506

main23820-75150i2TRFE..TRJ150200908-201506

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31160i1GRFE..GRJ15#200908-201506

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003i2TRFE..TRJ150200908-201506

main96132-51100i2TRFE..TRJ150200908-201506

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-30070i1GDFTV..GDJ15#201506

main25860-30160i1GDFTV..GDJ15#201506

main25860-36020i1GRFE..GRJ15#200908-201506

main90910-12089i1GDFTV..GDJ15#201506

main90910-12280i2TRFE..TRJ150200908-201506

7751

9046400803

main90464-00803

9099992002

main90999-92002

9167180614

main91671-80614
