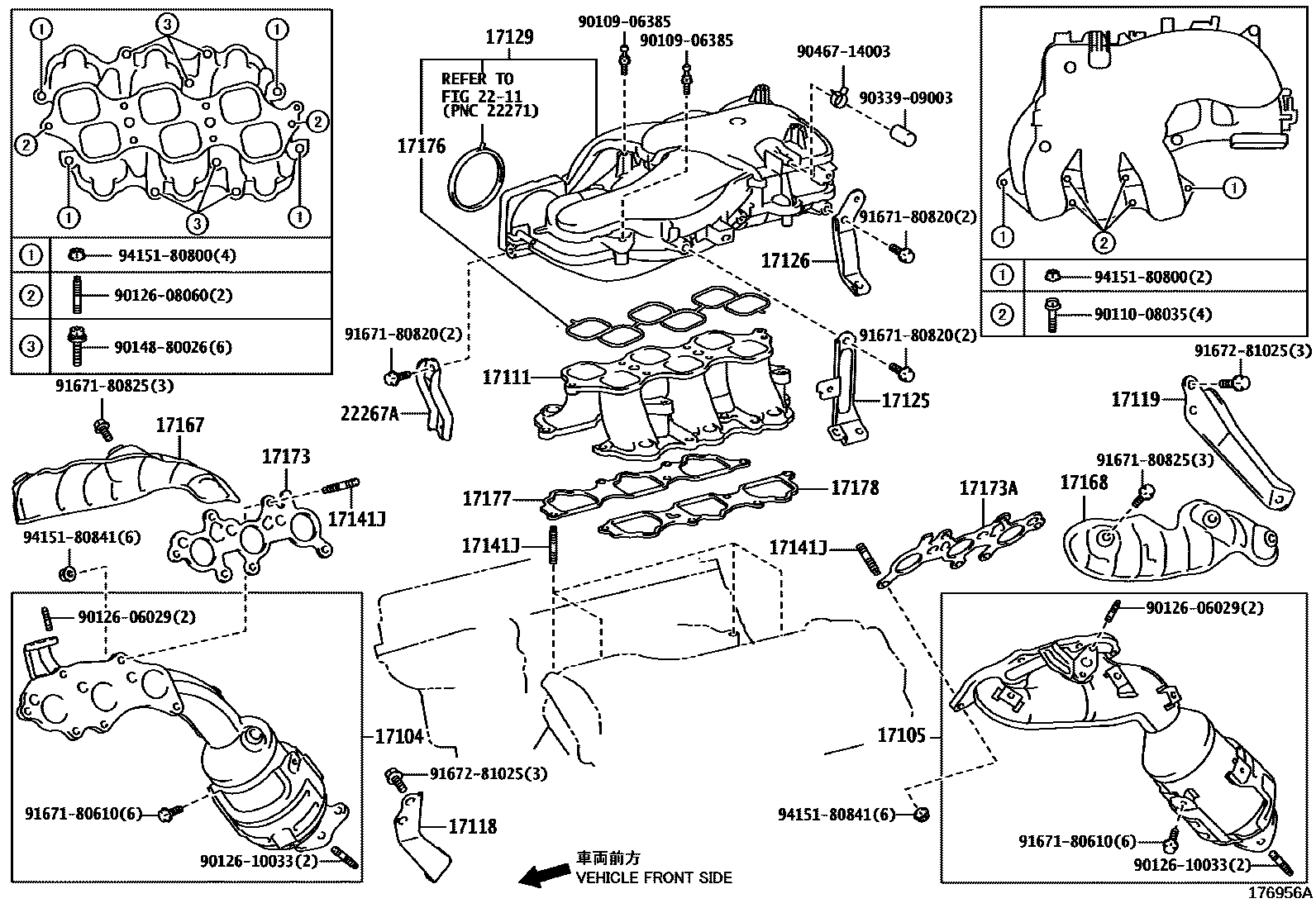

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-31600i1GRFE..GRJ15#200908-201506

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-31600i1GRFE..GRJ15#200908-201506

17111MANIFOLD, INTAKE

main17101-11400i1GDFTV..GDJ15#201506-201708

sub17101-11401

main17111-31200i1GRFE..GRJ15#200908-201506

main17120-0C020i2TRFE..TRJ150200908-201506

main17120-75042i2TRFE..TRJ150201506-201708

sub17120-75043

17118STAY, MANIFOLD

main17118-11390i1GDFTV..GDJ15#201506

main17118-31030i1GRFE..GRJ15#200908-201506

main17118-75060i2TRFE..TRJ150200908-201506

main17568-11170i1GDFTV..GDJ15#201506

main17569-11140i1GDFTV..GDJ15#201506

17119STAY, MANIFOLD, NO.2

main17119-31040i1GRFE..GRJ15#200908-201506

17125STAY, SURGE TANK, NO.1

main17125-31070i1GRFE..GRJ15#200908-201506

17126STAY, SURGE TANK, NO.2

main17126-31060i1GRFE..GRJ15#200908-201108

sub17126-31061

main17126-31061i1GRFE..GRJ15#201109-201506

17129TANK, INTAKE AIR SURGE

main17109-31110i1GRFE..GRJ15#200908-201111

sub17109-31180

main17109-31112i1GRFE..GRJ15#201205-201209

sub17109-31181

main17109-31180i1GRFE..GRJ15#201112-201205

sub17109-31181

sub44750-0C082

main17109-31181i1GRFE..GRJ15#201210-201506

17141MANIFOLD, EXHAUST

main17141-11360i1GDFTV..GDJ15#201506

main17141-75110i2TRFE..TRJ150200908-201506

main17141-75150i2TRFE..TRJ150201506-201708

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08052i1GRFE..GRJ15#200908-201506

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-11340i1GDFTV..GDJ15#201506

main17167-31050i1GRFE..GRJ15#200908-201506

main17167-75160i2TRFE..TRJ150200908-201506

main17167-75190i2TRFE..TRJ150201506

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-11070i1GDFTV..GDJ15#201506

main17168-31040i1GRFE..GRJ15#200908-201506

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-11060i1GDFTV..GDJ15#201506

main17173-31050i1GRFE..GRJ15#200908-201506

main17173-75040i2TRFE..TRJ150200908-201708

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31050i1GRFE..GRJ15#200908-201506

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31100i1GRFE..GRJ15#200908-201209

sub17176-31140

main17176-31140i1GRFE..GRJ15#201210-201506

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0C010i2TRFE..TRJ150200908-201506

main17177-11080i1GDFTV..GDJ15#201506

main17177-31050i1GRFE..GRJ15#200908-201110

sub17177-31051

main17177-31051i1GRFE..GRJ15#201110-201506

main17177-75070i2TRFE..TRJ150201506-201708

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-31040i1GRFE..GRJ15#200908-201110

sub17178-31041

main17178-31041i1GRFE..GRJ15#201110-201506

2211

22267ABRACKET, THROTTLE BODY

main22267-31010i1GRFE..GRJ15#200908-201506

9010906385

main90109-06385

9011008035

main90110-08035

9012606029

main90126-06029

9012608060

main90126-08060

9012610033

main90126-10033

9014880026

main90148-80026

9033909003

main90339-09003

9046714003

main90467-14003

9167180610

main91671-80610

9167180820

main91671-80820

9167180825

main91671-80825

9167281025

main91672-81025

9415180800

main94151-80800

9415180841

main94151-80841

33 parts on this diagram · 6 diagrams in section
