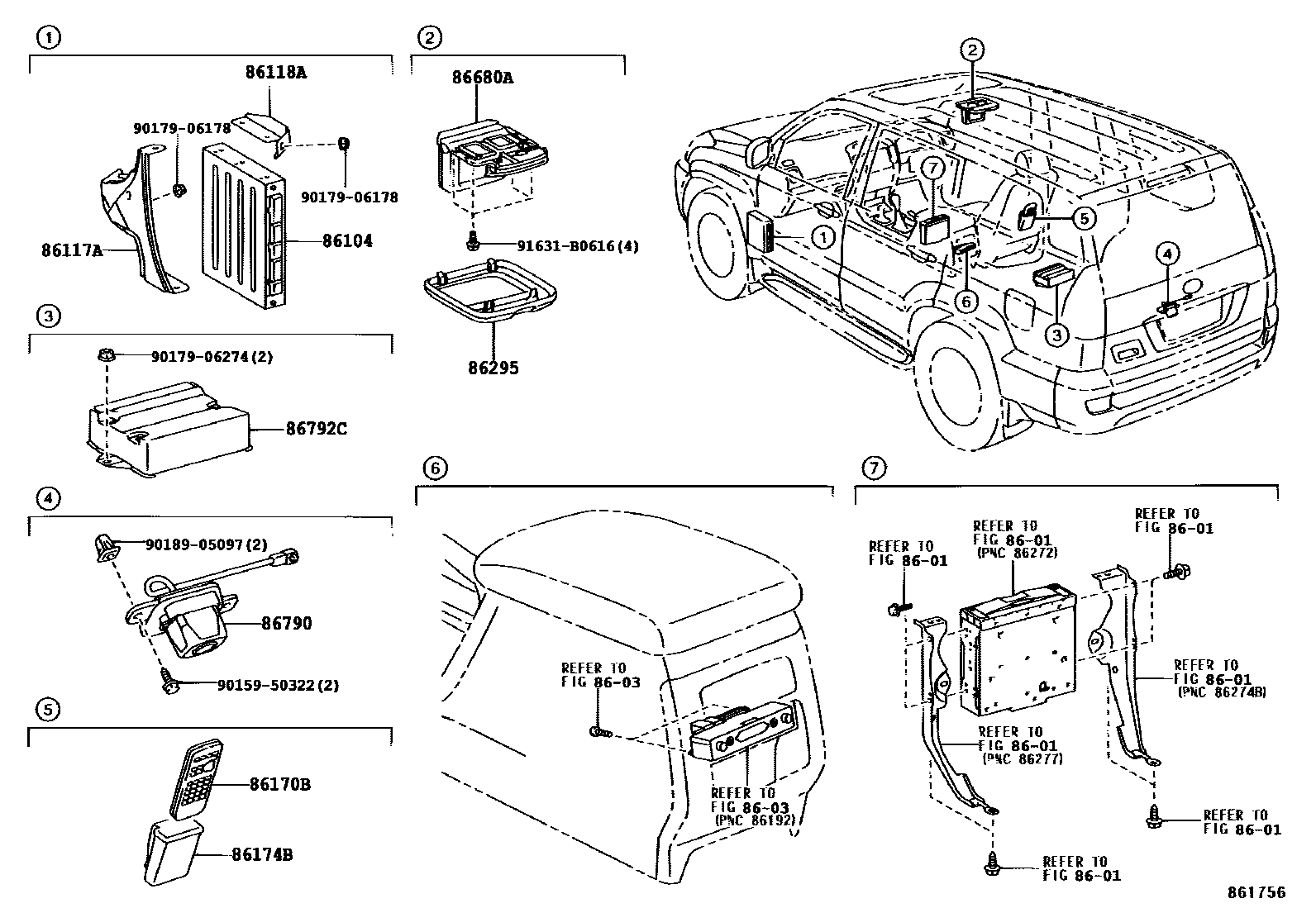

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

8601

8603

86104CONTROLLER SUB-ASSY, MULTI-DISPLAY

main86104-58020iGRJ121,KDJ121,VZJ121200408-200608

main86104-60030iKDJ121,VZJ121200209-200408

86117ABRACKET, TELEVISION DISPLAY, A

main86117-60040iKDJ120,RZJ120,VZJ120..08S200209-200312

86118ABRACKET, TELEVISION DISPLAY, B

main86118-60030iKDJ120,RZJ120,VZJ120..08S200209-200312

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-58010iKDJ120,RZJ120,VZJ120..08S200209-200312

main86170-58020iGRJ121,KDJ121,VZJ121200408-200608

86174BCASE, SWITCH & VOLUME

main86174-60020-A0iKDJ121,VZJ121200209-200408

main86174-60020-B0iKDJ121,VZJ121200209-200408

86295BASE, TELEVISION

main86295-58010-A0iKDJ120,RZJ120,VZJ120..08S200209-200312

main86295-58010-B1iKDJ120,RZJ120,VZJ120..08S200209-200312

86680ADISPLAY ASSY, TELEVISION

main86680-60011-A0iKDJ121,VZJ121200209-200408

main86680-60011-B0iKDJ121,VZJ121200209-200408

main86680-60040-A0iGRJ121,KDJ121,VZJ121200408-200608

main86680-60040-B0iGRJ121,KDJ121,VZJ121200408-200608

86790CAMERA ASSY, TELEVISION

main86790-60010iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200608

main86790-60040iKDJ120200608-200707

sub86790-60041

86792CCOMPUTER, PARKING ASSIST

main86792-60010iKDJ120,121,RZJ120,VZJ120,121200209-200408

main86792-60011iGRJ12#,KDJ120,121,TRJ120,VZJ120,121200408-200608

main86792-60070iGRJ121200508-200608

main86792-60090iKDJ120200608-200707

9015950322

main90159-50322

9017906178

main90179-06178

9017906274

main90179-06274

9018905097

main90189-05097

91631B0616

main91631-B0616

16 parts on this diagram · 2 diagrams in section
