ELECTRONIC MODULATED SUSPENSION

4803

4804

4805

8401

89190ASENSOR ASSY, ACCELERATION

main89190-44010iGRJ121,KDJ121,VZJ121200209-200707

main89190-60030iGRJ121200707

89191ASENSOR, ACCELERATION

main89191-30020iGRJ121,KDJ121,VZJ121200209-200707

sub89191-22020

main89191-50020iGRJ121200707

89241BACTUATOR, ABSORBER CONTROL

main89241-60010iGRJ121,KDJ121,VZJ121200209

89269ABRACKET, SUSPENSION CONTROL

main89269-60010iGRJ121,KDJ121,VZJ121200209

main89269-60020iGRJ121,KDJ121,VZJ121200209

89293COMPUTER, SUSPENSION CONTROL

main89293-60030iKDJ121,VZJ121200209-200311

sub89293-60031

main89293-60031iKDJ121,VZJ121200311-200409

sub89293-60032

sub89293-60033

main89293-60032iGRJ121,KDJ121,VZJ121200410-200706

sub89293-60033

main89293-60033iGRJ121200707

89293ARELAY, SUSPENSION CONTROL

main90987-02025iKDJ121,VZJ121200209-200508

89299SWITCH, SUSPENSION CONTROL

main89299-60020iGRJ121,KDJ121,VZJ121200209

89299BBULB(FOR SUSPENSION CONTROL SWITCH)

main90010-01039iGRJ121,KDJ121,VZJ121200209

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-60021iVZJ121200209-200211

sub89407-60022

main89407-60022iGRJ121,KDJ121,VZJ121200211

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-60011iGRJ121,KDJ121,VZJ121200209

9011005004

main90110-05004

9011906390

main90119-06390

91631J0612

main91631-J0612

91641H0820

main91641-H0820

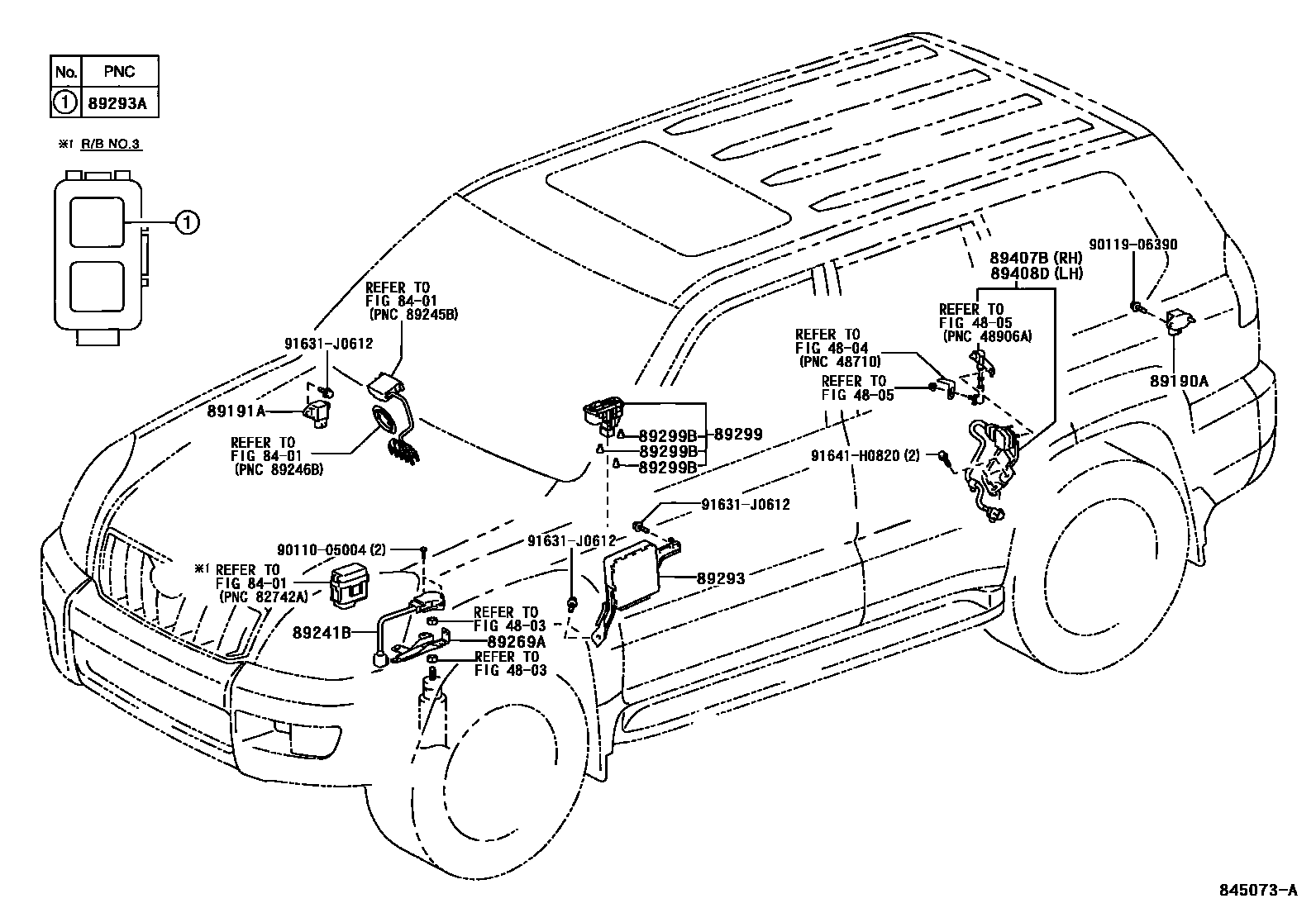

18 parts on this diagram · 1 diagram in section
