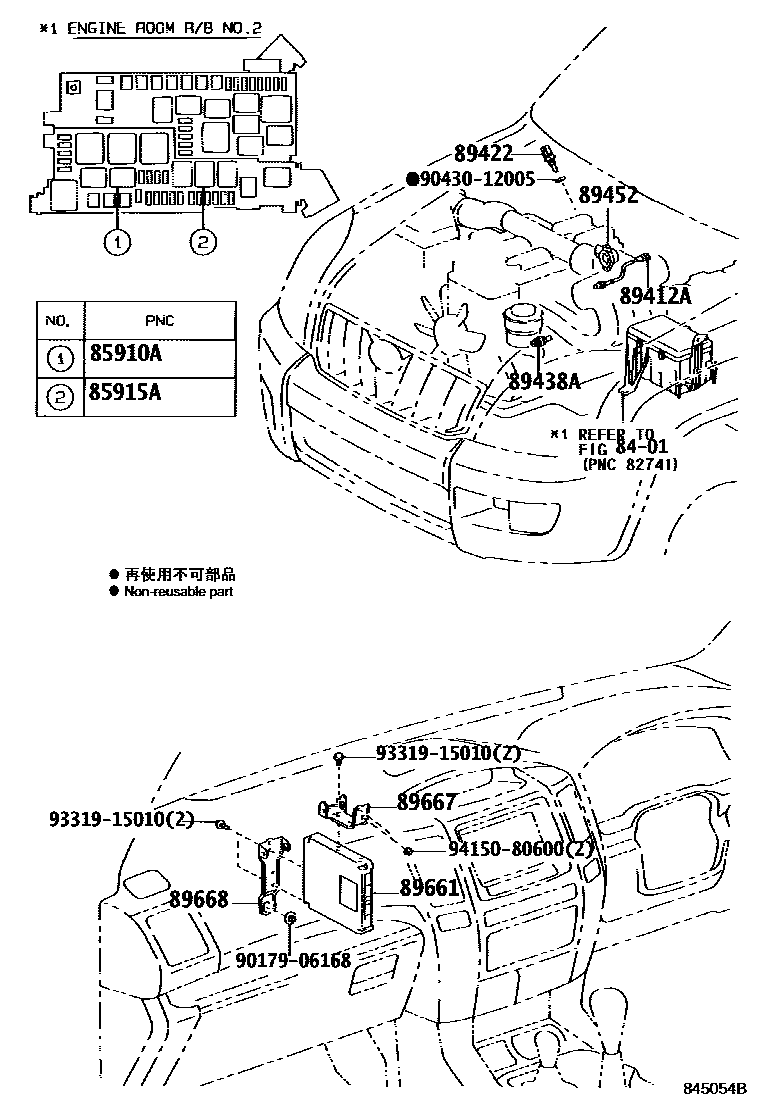

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02022iRZJ12#,VZJ12#200209-200408

main90987-02027iGRJ12#,TRJ12#,VZJ12#200408

85915ARELAY, MAIN

main90987-02022iRZJ12#,VZJ12#200209-200408

main90987-02027iGRJ12#,TRJ12#,VZJ12#200408

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-34010iRZJ12#200209-200408

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGRJ12#,TRJ12#200408-200908

main89422-35010iRZJ12#,VZJ12#200209-200508

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iGRJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-35020iRZJ12#200209-200408

89661COMPUTER, ENGINE CONTROL

main89661-60B90iTRJ12#200408-200908

main89661-60D60iGRJ12#200508-200608

main89661-60F40iGRJ12#200608-200908

main89661-6A140iRZJ12#200209-200408

main89661-6A170iVZJ12#200209-200508

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60240iGRJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60240iGRJ12#,RZJ12#,VZJ12#200209-200908

main89668-60250iTRJ12#200408-200908

9017906168

main90179-06168

9043012005

main90430-12005

9331915010

main93319-15010

9415080600

main94150-80600

14 parts on this diagram · 4 diagrams in section
