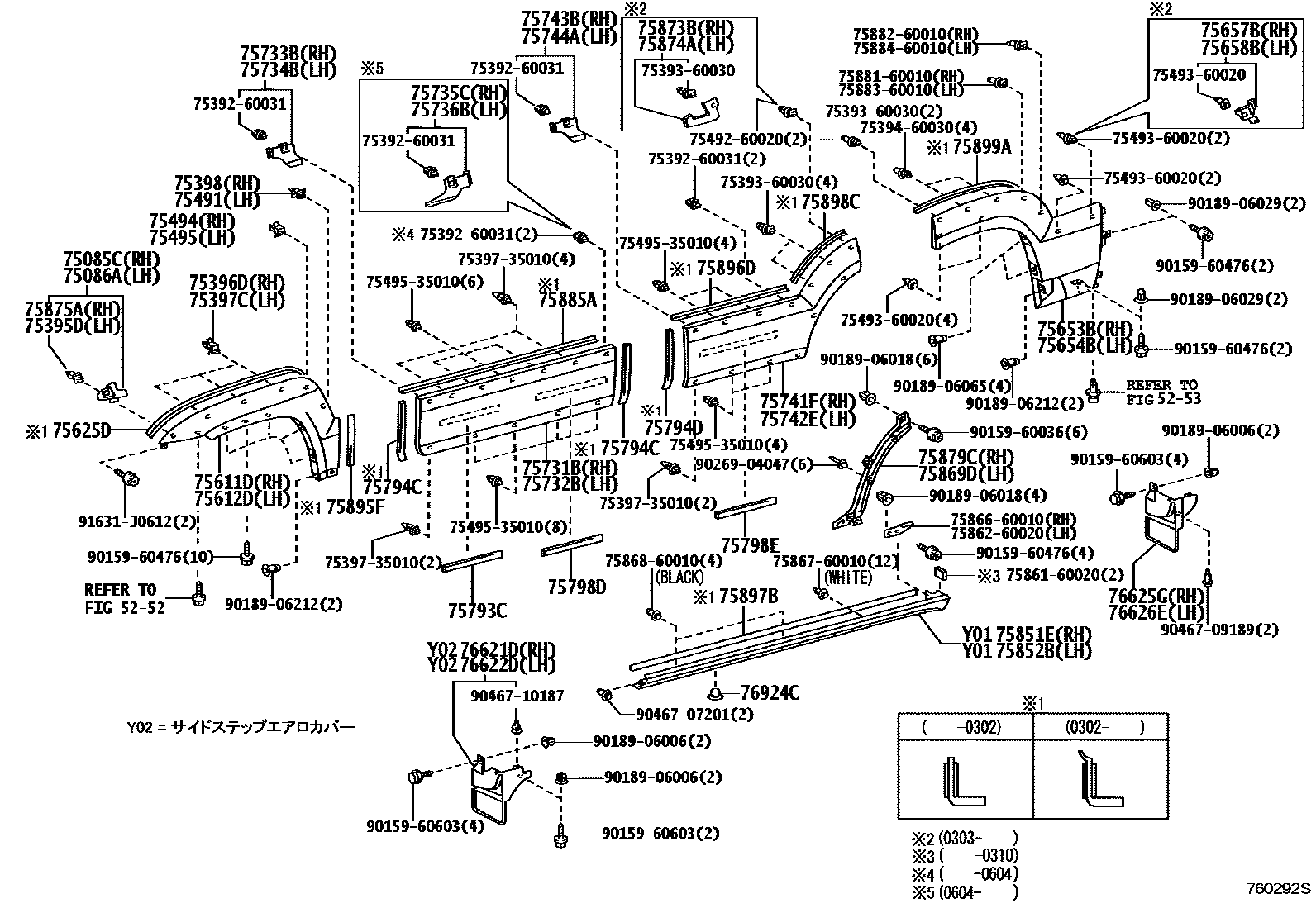

SPOILER & SIDE MUDGUARD

0001 1 0002 1

5252

5253

75085CMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH

main75085-60060iKDJ12#,RZJ12#,VZJ12#200209-200306

sub75085-60061

main75085-60061iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200306

75086AMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH

main75086-60060iKDJ12#,RZJ12#,VZJ12#200209-200306

sub75086-60061

main75086-60061iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200306

75395DCLIP, OUTSIDE MOULDING, NO.1

main75395-60040iKDJ12#,RZJ12#,VZJ12#200209-200306

sub75395-35070

main75397-35010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200306-200908

75396DCLIP, OUTSIDE MOULDING, NO.2

main75396-60030iKDJ12#,RZJ12#,VZJ12#200209-200401

sub75396-60031

main75396-60031iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401

75397CCLIP, OUTSIDE MOULDING, NO.3

main75397-60030iKDJ12#,RZJ12#,VZJ12#200209-200401

sub75397-60031

main75397-60031iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401

75398CLIP, OUTSIDE MOULDING, NO.5

main75398-60020iKDJ12#,RZJ12#,VZJ12#200209-200401

sub75398-60021

main75398-60021iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401

75491CLIP, OUTSIDE MOULDING, NO.6

main75491-60010iKDJ12#,RZJ12#,VZJ12#200209-200401

sub75491-60011

main75491-60011iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401

75494CLIP, OUTSIDE MOULDING, NO.3

main75494-60010iKDJ12#,RZJ12#,VZJ12#200209-200401

sub75494-60011

main75494-60011iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401

75495CLIP, OUTSIDE MOULDING, NO.4

main75495-60010iKDJ12#,RZJ12#,VZJ12#200209-200401

sub75495-60011

main75495-60011iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401

75611DMOULDING, FRONT FENDER, OUTSIDE FRONT RH

main75611-60110-A1iKDJ12#,RZJ12#,VZJ12#200209-200401

WHITE PEARL CS.,070

sub75611-60111

sub75396-60031

sub75398-60021

sub75494-60011

main75611-60110-B0iKDJ12#,RZJ12#,VZJ12#200209-200401

SILVER ME.,1D4

sub75611-60111

sub75396-60031

sub75398-60021

sub75494-60011

main75611-60110-B1iKDJ12#,RZJ12#,VZJ12#200209-200401

DK.GRAY M.M.,1E9

sub75611-60111

sub75396-60031

sub75398-60021

sub75494-60011

main75611-60110-D0iKDJ12#,RZJ12#,VZJ12#200209-200401

DARK RED MC.,3Q8

sub75611-60111

sub75396-60031

sub75398-60021

sub75494-60011

main75611-60110-F0iKDJ12#,RZJ12#,VZJ12#200209-200401

CHAMPAGNE M.M.,587

sub75611-60111

sub75396-60031

sub75398-60021

sub75494-60011

main75611-60110-G1iKDJ12#,RZJ12#,VZJ12#200209-200401

LT. GREEN M.M.,6T2

sub75611-60111

sub75396-60031

sub75398-60021

sub75494-60011

main75611-60110-J0iKDJ12#,RZJ12#,VZJ12#200209-200401

DARK BLUE M.M.,8R4

sub75611-60111

sub75396-60031

sub75398-60021

sub75494-60011

main75611-60111-A0iGRJ120,KDJ120,TRJ120..08S200401-200908

WHITE,056

main75611-60111-A1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200908

WHITE PEARL CS.,070

main75611-60111-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200908

SILVER ME.,1D4

main75611-60111-B1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200908

DK.GRAY M.M.,1E9

main75611-60111-C0iGRJ120,KDJ120,TRJ120,VZJ120..08S200401-200908

BLACK,202

main75611-60111-D0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200908

DARK RED MC.,3Q8

main75611-60111-E0iGRJ12#,KDJ120,TRJ12#200508-200908

BEIGE ME.,4R4

main75611-60111-F0iKDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200508

CHAMPAGNE M.M.,587

main75611-60111-G1iKDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200508

LT. GREEN M.M.,6T2

main75611-60111-J0iKDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200508

DARK BLUE M.M.,8R4

main75611-60111-J1iGRJ12#,KDJ120,TRJ12#200508-200608

LT.BLUE ME.,8R6

main75611-60111-J2iGRJ12#,KDJ120,TRJ12#200508-200908

DK.BLUE MC.,8S6

75612DMOULDING, FRONT FENDER, OUTSIDE FRONT LH

main75612-60110-A1iKDJ12#,RZJ12#,VZJ12#200209-200401

WHITE PEARL CS.,070

sub75612-60111

sub75397-60031

sub75491-60011

sub75495-60011

main75612-60110-B0iKDJ12#,RZJ12#,VZJ12#200209-200401

SILVER ME.,1D4

sub75612-60111

sub75397-60031

sub75491-60011

sub75495-60011

main75612-60110-B1iKDJ12#,RZJ12#,VZJ12#200209-200401

DK.GRAY M.M.,1E9

sub75612-60111

sub75397-60031

sub75491-60011

sub75495-60011

main75612-60110-D0iKDJ12#,RZJ12#,VZJ12#200209-200401

DARK RED MC.,3Q8

sub75612-60111

sub75397-60031

sub75491-60011

sub75495-60011

main75612-60110-F0iKDJ12#,RZJ12#,VZJ12#200209-200401

CHAMPAGNE M.M.,587

sub75612-60111

sub75397-60031

sub75491-60011

sub75495-60011

main75612-60110-G1iKDJ12#,RZJ12#,VZJ12#200209-200401

LT. GREEN M.M.,6T2

sub75612-60111

sub75397-60031

sub75491-60011

sub75495-60011

main75612-60110-J0iKDJ12#,RZJ12#,VZJ12#200209-200401

DARK BLUE M.M.,8R4

sub75612-60111

sub75397-60031

sub75491-60011

sub75495-60011

main75612-60111-A0iGRJ120,KDJ120,TRJ120..08S200401-200908

WHITE,056

main75612-60111-A1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200908

WHITE PEARL CS.,070

main75612-60111-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200908

SILVER ME.,1D4

main75612-60111-B1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200908

DK.GRAY M.M.,1E9

main75612-60111-C0iGRJ120,KDJ120,TRJ120,VZJ120..08S200401-200908

BLACK,202

main75612-60111-D0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200908

DARK RED MC.,3Q8

main75612-60111-E0iGRJ12#,KDJ120,TRJ12#200508-200908

BEIGE ME.,4R4

main75612-60111-F0iKDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200508

CHAMPAGNE M.M.,587

main75612-60111-G1iKDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200508

LT. GREEN M.M.,6T2

main75612-60111-J0iKDJ12#,RZJ12#,TRJ12#,VZJ12#200401-200508

DARK BLUE M.M.,8R4

main75612-60111-J1iGRJ12#,KDJ120,TRJ12#200508-200608

LT.BLUE ME.,8R6

main75612-60111-J2iGRJ12#,KDJ120,TRJ12#200508-200908

DK.BLUE MC.,8S6

75625DPAD, FRONT FENDER OUTSIDE MOULDING, UPPRER

main75898-60040iKDJ12#,RZJ12#,VZJ12#200209-200302

sub75898-60041

main75898-60041iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200302

75653BMOULDING, QUARTER OUTSIDE, RH NO.3

main75653-60020-A1iKDJ120,121,RZJ120,VZJ120,121200209-200303

WHITE PEARL CS.,070

sub75653-60021

sub75087-60040

main75653-60020-B0iKDJ120,121,RZJ120,VZJ120,121200209-200303

SILVER ME.,1D4

sub75653-60021

sub75087-60040

main75653-60020-B1iKDJ120,121,RZJ120,VZJ120,121200209-200303

DK.GRAY M.M.,1E9

sub75653-60021

sub75087-60040

main75653-60020-D0iKDJ120,121,RZJ120,VZJ120,121200209-200303

DARK RED MC.,3Q8

sub75653-60021

sub75087-60040

main75653-60020-F0iKDJ120,121,RZJ120,VZJ120,121200209-200303

CHAMPAGNE M.M.,587

sub75653-60021

sub75087-60040

main75653-60020-G1iKDJ120,121,RZJ120,VZJ120,121200209-200303

LT. GREEN M.M.,6T2

sub75653-60021

sub75087-60040

main75653-60020-J0iKDJ120,121,RZJ120,VZJ120,121200209-200303

DARK BLUE M.M.,8R4

sub75653-60021

sub75087-60040

main75653-60021-A0iGRJ120,KDJ120,TRJ120..08S200303-200908

WHITE,056

main75653-60021-A1iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

WHITE PEARL CS.,070

main75653-60021-B0iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

SILVER ME.,1D4

main75653-60021-B1iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

DK.GRAY M.M.,1E9

main75653-60021-C0iGRJ120,KDJ120,TRJ120,VZJ120..08S200303-200908

BLACK,202

main75653-60021-D0iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

DARK RED MC.,3Q8

main75653-60021-E0iGRJ12#,KDJ120,TRJ120200508-200908

BEIGE ME.,4R4

main75653-60021-F0iKDJ120,121,RZJ120,VZJ120,121200303-200707

CHAMPAGNE M.M.,587

main75653-60021-G1iTRJ120200303-200707

LT. GREEN M.M.,6T2

main75653-60021-J0iTRJ120200303-200707

DARK BLUE M.M.,8R4

main75653-60021-J1iGRJ12#,KDJ120,TRJ120200508-200608

LT.BLUE ME.,8R6

main75653-60021-J2iGRJ12#,KDJ120,TRJ120200508-200908

DK.BLUE MC.,8S6

main75653-60030-A1iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

WHITE PEARL CS.,070

sub75653-60031

sub75087-60050

main75653-60030-B0iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

SILVER ME.,1D4

sub75653-60031

sub75087-60050

main75653-60030-B1iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

DK.GRAY M.M.,1E9

sub75653-60031

sub75087-60050

main75653-60030-D0iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

DARK RED MC.,3Q8

sub75653-60031

sub75087-60050

main75653-60030-F0iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

CHAMPAGNE M.M.,587

sub75653-60031

sub75087-60050

main75653-60030-G1iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

LT. GREEN M.M.,6T2

sub75653-60031

sub75087-60050

main75653-60030-J0iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

DARK BLUE M.M.,8R4

sub75653-60031

sub75087-60050

main75653-60031-A1iKDJ125,TRJ125,VZJ125200505-200908

WHITE PEARL CS.,070

main75653-60031-B0iKDJ125,TRJ125,VZJ125200505-200908

SILVER ME.,1D4

main75653-60031-B1iKDJ125,TRJ125,VZJ125200505-200908

DK.GRAY M.M.,1E9

main75653-60031-D0iKDJ125,TRJ125,VZJ125200505-200908

DARK RED MC.,3Q8

main75653-60031-E0iTRJ125200508-200908

BEIGE ME.,4R4

main75653-60031-F0iKDJ125,TRJ125,VZJ125200505-200508

CHAMPAGNE M.M.,587

main75653-60031-G1iKDJ125,TRJ125,VZJ125200505-200508

LT. GREEN M.M.,6T2

main75653-60031-J0iKDJ125,TRJ125,VZJ125200505-200508

DARK BLUE M.M.,8R4

main75653-60031-J1iTRJ125200508-200608

LT.BLUE ME.,8R6

main75653-60031-J2iTRJ125200508-200908

DK.BLUE MC.,8S6

75654BMOULDING, QUARTER, OUTSIDE NO.4

main75654-60020-A1iKDJ120,121,RZJ120,VZJ120,121200209-200303

WHITE PEARL CS.,070

sub75654-60021

sub75088-60040

main75654-60020-B0iKDJ120,121,RZJ120,VZJ120,121200209-200303

SILVER ME.,1D4

sub75654-60021

sub75088-60040

main75654-60020-B1iKDJ120,121,RZJ120,VZJ120,121200209-200303

DK.GRAY M.M.,1E9

sub75654-60021

sub75088-60040

main75654-60020-D0iKDJ120,121,RZJ120,VZJ120,121200209-200303

DARK RED MC.,3Q8

sub75654-60021

sub75088-60040

main75654-60020-F0iKDJ120,121,RZJ120,VZJ120,121200209-200303

CHAMPAGNE M.M.,587

sub75654-60021

sub75088-60040

main75654-60020-G1iKDJ120,121,RZJ120,VZJ120,121200209-200303

LT. GREEN M.M.,6T2

sub75654-60021

sub75088-60040

main75654-60020-J0iKDJ120,121,RZJ120,VZJ120,121200209-200303

DARK BLUE M.M.,8R4

sub75654-60021

sub75088-60040

main75654-60021-A0iGRJ120,KDJ120,TRJ120..08S200303-200908

WHITE,056

main75654-60021-A1iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

WHITE PEARL CS.,070

main75654-60021-B0iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

SILVER ME.,1D4

main75654-60021-B1iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

DK.GRAY M.M.,1E9

main75654-60021-C0iGRJ120,KDJ120,TRJ120,VZJ120..08S200303-200908

BLACK,202

main75654-60021-D0iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

DARK RED MC.,3Q8

main75654-60021-E0iGRJ12#,KDJ120,TRJ120200508-200908

BEIGE ME.,4R4

main75654-60021-F0iKDJ120,121,RZJ120,VZJ120,121200303-200707

CHAMPAGNE M.M.,587

main75654-60021-G1iKDJ120,121,RZJ120,VZJ120,121200303-200707

LT. GREEN M.M.,6T2

main75654-60021-J0iTRJ120200303-200707

DARK BLUE M.M.,8R4

main75654-60021-J1iGRJ12#,KDJ120,TRJ120200508-200608

LT.BLUE ME.,8R6

main75654-60021-J2iGRJ12#,KDJ120,TRJ120200508-200908

DK.BLUE MC.,8S6

main75654-60030-A1iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

WHITE PEARL CS.,070

sub75654-60031

sub75088-60050

main75654-60030-B0iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

SILVER ME.,1D4

sub75654-60031

sub75088-60050

main75654-60030-B1iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

DK.GRAY M.M.,1E9

sub75654-60031

sub75088-60050

main75654-60030-D0iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

DARK RED MC.,3Q8

sub75654-60031

sub75088-60050

main75654-60030-F0iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

CHAMPAGNE M.M.,587

sub75654-60031

sub75088-60050

main75654-60030-G1iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

LT. GREEN M.M.,6T2

sub75654-60031

sub75088-60050

main75654-60030-J0iKDJ125,RZJ125,TRJ125,VZJ125200209-200505

DARK BLUE M.M.,8R4

sub75654-60031

sub75088-60050

main75654-60031-A1iKDJ125,TRJ125,VZJ125200505-200908

WHITE PEARL CS.,070

main75654-60031-B0iKDJ125,TRJ125,VZJ125200505-200908

SILVER ME.,1D4

main75654-60031-B1iKDJ125,TRJ125,VZJ125200505-200908

DK.GRAY M.M.,1E9

main75654-60031-D0iKDJ125,TRJ125,VZJ125200505-200908

DARK RED MC.,3Q8

main75654-60031-E0iTRJ125200508-200908

BEIGE ME.,4R4

main75654-60031-F0iKDJ125,TRJ125,VZJ125200505-200508

CHAMPAGNE M.M.,587

main75654-60031-G1iKDJ125,TRJ125,VZJ125200505-200508

LT. GREEN M.M.,6T2

main75654-60031-J0iKDJ125,TRJ125,VZJ125200505-200508

DARK BLUE M.M.,8R4

main75654-60031-J1iTRJ125200508-200608

LT.BLUE ME.,8R6

main75654-60031-J2iTRJ125200508-200908

DK.BLUE MC.,8S6

75657BMOULDING, QUARTER PANEL, LOWER REAR RH

main75087-60040iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303

main75087-60050iKDJ125,TRJ125,VZJ125200505

75658BMOULDING, QUARTER PANEL, LOWER REAR LH

main75088-60040iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303

main75088-60050iKDJ125,TRJ125,VZJ125200505

75731BMOULDING, FRONT DOOR, OUTSIDE RH

main75731-60160-A0iGRJ120,KDJ120,TRJ120..08S200310-200604

WHITE,056

sub75731-60161

sub75073-60050

main75731-60160-A1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200604

WHITE PEARL CS.,070

sub75731-60161

sub75073-60050

main75731-60160-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200604

SILVER ME.,1D4

sub75731-60161

sub75073-60050

main75731-60160-B1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200604

DK.GRAY M.M.,1E9

sub75731-60161

sub75073-60050

main75731-60160-C0iGRJ120,KDJ120,TRJ120,VZJ120..08S200310-200604

BLACK,202

sub75731-60161

sub75073-60050

main75731-60160-D0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200604

DARK RED MC.,3Q8

sub75731-60161

sub75073-60050

main75731-60160-E0iGRJ12#,KDJ120,TRJ12#200508-200604

BEIGE ME.,4R4

sub75731-60161

sub75073-60050

main75731-60160-F0iKDJ12#,RZJ12#,VZJ12#200209-200604

CHAMPAGNE M.M.,587

sub75731-60161

sub75073-60050

main75731-60160-G1iKDJ12#,RZJ12#,VZJ12#200209-200604

LT. GREEN M.M.,6T2

sub75731-60161

sub75073-60050

main75731-60160-J0iKDJ12#,RZJ12#,VZJ12#200209-200604

DARK BLUE M.M.,8R4

sub75731-60161

sub75073-60050

main75731-60160-J1iGRJ12#,KDJ120,TRJ12#200508-200604

LT.BLUE ME.,8R6

sub75731-60161

sub75073-60050

main75731-60160-J2iGRJ12#,KDJ120,TRJ12#200508-200604

DK.BLUE MC.,8S6

sub75731-60161

sub75073-60050

main75731-60161-A0iGRJ120,KDJ120,TRJ120..08S200604-200908

WHITE,056

main75731-60161-A1iGRJ12#,KDJ120,TRJ12#200604-200908

WHITE PEARL CS.,070

main75731-60161-B0iGRJ12#,KDJ120,TRJ12#200604-200908

SILVER ME.,1D4

main75731-60161-B1iGRJ12#,KDJ120,TRJ12#200604-200908

DK.GRAY M.M.,1E9

main75731-60161-C0iGRJ120,KDJ120,TRJ120..08S200604-200908

BLACK,202

main75731-60161-D0iGRJ12#,KDJ120,TRJ12#200604-200908

DARK RED MC.,3Q8

main75731-60161-E0iGRJ12#,KDJ120,TRJ12#200604-200908

BEIGE ME.,4R4

main75731-60161-J1iGRJ12#,KDJ120,TRJ12#200604-200608

LT.BLUE ME.,8R6

main75731-60161-J2iGRJ12#,KDJ120,TRJ12#200604-200908

DK.BLUE MC.,8S6

75732BMOULDING, FRONT DOOR, OUTSIDE LH

main75732-60160-A0iGRJ120,KDJ120,TRJ120..08S200310-200604

WHITE,056

sub75732-60161

sub75074-60050

main75732-60160-A1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200604

WHITE PEARL CS.,070

sub75732-60161

sub75074-60050

main75732-60160-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200604

SILVER ME.,1D4

sub75732-60161

sub75074-60050

main75732-60160-B1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200604

DK.GRAY M.M.,1E9

sub75732-60161

sub75074-60050

main75732-60160-C0iGRJ120,KDJ120,TRJ120,VZJ120..08S200310-200604

BLACK,202

sub75732-60161

sub75074-60050

main75732-60160-D0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200604

DARK RED MC.,3Q8

sub75732-60161

sub75074-60050

main75732-60160-E0iGRJ12#,KDJ120,TRJ12#200508-200604

BEIGE ME.,4R4

sub75732-60161

sub75074-60050

main75732-60160-F0iKDJ12#,RZJ12#,VZJ12#200209-200604

CHAMPAGNE M.M.,587

sub75732-60161

sub75074-60050

main75732-60160-G1iTRJ12#200209-200604

LT. GREEN M.M.,6T2

sub75732-60161

sub75074-60050

main75732-60160-J0iTRJ12#200209-200604

DARK BLUE M.M.,8R4

sub75732-60161

sub75074-60050

main75732-60160-J1iGRJ12#,KDJ120,TRJ12#200508-200604

LT.BLUE ME.,8R6

sub75732-60161

sub75074-60050

main75732-60160-J2iGRJ12#,KDJ120,TRJ12#200508-200604

DK.BLUE MC.,8S6

sub75732-60161

sub75074-60050

main75732-60161-A0iGRJ120,KDJ120,TRJ120..08S200604-200908

WHITE,056

main75732-60161-A1iGRJ12#,KDJ120,TRJ12#200604-200908

WHITE PEARL CS.,070

main75732-60161-B0iGRJ12#,KDJ120,TRJ12#200604-200908

SILVER ME.,1D4

main75732-60161-B1iGRJ12#,KDJ120,TRJ12#200604-200908

DK.GRAY M.M.,1E9

main75732-60161-C0iGRJ120,KDJ120,TRJ120..08S200604-200908

BLACK,202

main75732-60161-D0iGRJ12#,KDJ120,TRJ12#200604-200908

DARK RED MC.,3Q8

main75732-60161-E0iGRJ12#,KDJ120,TRJ12#200604-200908

BEIGE ME.,4R4

main75732-60161-J1iGRJ12#,KDJ120,TRJ12#200604-200608

LT.BLUE ME.,8R6

main75732-60161-J2iGRJ12#,KDJ120,TRJ12#200604-200908

DK.BLUE MC.,8S6

75733BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR RH

main75073-60040iKDJ12#,RZJ12#,VZJ12#200209-200310

sub75073-60041

main75073-60041iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200310

75734BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR LH

main75074-60040iKDJ12#,RZJ12#,VZJ12#200209-200310

sub75074-60041

main75074-60041iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200310

75735CMOULDING, FRONT DOOR OUTSIDE, LOWER RH

main75073-60050iGRJ12#,KDJ120,TRJ12#200604-200908

75736BMOULDING, FRONT DOOR, OUTSIDE LOWER LH

main75074-60050iGRJ12#,KDJ120,TRJ12#200604-200908

75741FMOULDING, REAR DOOR, OUTSIDE RH

main75741-60200-A1iKDJ120,121,RZJ120,VZJ120,121200209-200303

WHITE PEARL CS.,070

sub75741-60201

sub75077-60050

main75741-60200-B0iKDJ120,121,RZJ120,VZJ120,121200209-200303

SILVER ME.,1D4

sub75741-60201

sub75077-60050

main75741-60200-B1iKDJ120,121,RZJ120,VZJ120,121200209-200303

DK.GRAY M.M.,1E9

sub75741-60201

sub75077-60050

main75741-60200-D0iKDJ120,121,RZJ120,VZJ120,121200209-200303

DARK RED MC.,3Q8

sub75741-60201

sub75077-60050

main75741-60200-F0iKDJ120,121,RZJ120,VZJ120,121200209-200303

CHAMPAGNE M.M.,587

sub75741-60201

sub75077-60050

main75741-60200-G1iKDJ120,121,RZJ120,VZJ120,121200209-200303

LT. GREEN M.M.,6T2

sub75741-60201

sub75077-60050

main75741-60200-J0iKDJ120,121,RZJ120,VZJ120,121200209-200303

DARK BLUE M.M.,8R4

sub75741-60201

sub75077-60050

main75741-60201-A0iGRJ120,KDJ120,TRJ120..08S200310-200908

WHITE,056

sub75741-60202

sub75077-60042

main75741-60201-A1iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

WHITE PEARL CS.,070

sub75741-60202

sub75077-60042

main75741-60201-B0iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

SILVER ME.,1D4

sub75741-60202

sub75077-60042

main75741-60201-B1iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

DK.GRAY M.M.,1E9

sub75741-60202

sub75077-60042

main75741-60201-C0iGRJ120,KDJ120,TRJ120,VZJ120..08S200310-200908

BLACK,202

sub75741-60202

sub75077-60042

main75741-60201-D0iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

DARK RED MC.,3Q8

sub75741-60202

sub75077-60042

main75741-60201-E0iGRJ12#,KDJ120,TRJ120200508-200908

BEIGE ME.,4R4

sub75741-60202

sub75077-60042

main75741-60201-F0iKDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200508

CHAMPAGNE M.M.,587

sub75741-60202

sub75077-60042

main75741-60201-G1iKDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200508

LT. GREEN M.M.,6T2

sub75741-60202

sub75077-60042

main75741-60201-J0iKDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200508

DARK BLUE M.M.,8R4

sub75741-60202

sub75077-60042

main75741-60201-J1iGRJ12#,KDJ120,TRJ120200508-200608

LT.BLUE ME.,8R6

sub75741-60202

sub75077-60042

main75741-60201-J2iGRJ12#,KDJ120,TRJ120200508-200908

DK.BLUE MC.,8S6

sub75741-60202

sub75077-60042

75742EMOULDING, REAR DOOR, OUTSIDE LH

main75742-60200-A1iKDJ120,121,RZJ120,VZJ120,121200209-200303

WHITE PEARL CS.,070

sub75742-60201

sub75078-60050

main75742-60200-B0iKDJ120,121,RZJ120,VZJ120,121200209-200303

SILVER ME.,1D4

sub75742-60201

sub75078-60050

main75742-60200-B1iKDJ120,121,RZJ120,VZJ120,121200209-200303

DK.GRAY M.M.,1E9

sub75742-60201

sub75078-60050

main75742-60200-D0iKDJ120,121,RZJ120,VZJ120,121200209-200303

DARK RED MC.,3Q8

sub75742-60201

sub75078-60050

main75742-60200-F0iKDJ120,121,RZJ120,VZJ120,121200209-200303

CHAMPAGNE M.M.,587

sub75742-60201

sub75078-60050

main75742-60200-G1iKDJ120,121,RZJ120,VZJ120,121200209-200303

LT. GREEN M.M.,6T2

sub75742-60201

sub75078-60050

main75742-60200-J0iKDJ120,121,RZJ120,VZJ120,121200209-200303

DARK BLUE M.M.,8R4

sub75742-60201

sub75078-60050

main75742-60201-A0iGRJ120,KDJ120,TRJ120..08S200310-200908

WHITE,056

sub75742-60202

sub75078-60042

main75742-60201-A1iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

WHITE PEARL CS.,070

sub75742-60202

sub75078-60042

main75742-60201-B0iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

SILVER ME.,1D4

sub75742-60202

sub75078-60042

main75742-60201-B1iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

DK.GRAY M.M.,1E9

sub75742-60202

sub75078-60042

main75742-60201-C0iGRJ120,KDJ120,TRJ120,VZJ120..08S200310-200908

BLACK,202

sub75742-60202

sub75078-60042

main75742-60201-D0iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200908

DARK RED MC.,3Q8

sub75742-60202

sub75078-60042

main75742-60201-E0iGRJ12#,KDJ120,TRJ120200508-200908

BEIGE ME.,4R4

sub75742-60202

sub75078-60042

main75742-60201-F0iKDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200508

CHAMPAGNE M.M.,587

sub75742-60202

sub75078-60042

main75742-60201-G1iKDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200508

LT. GREEN M.M.,6T2

sub75742-60202

sub75078-60042

main75742-60201-J0iKDJ120,121,RZJ120,TRJ120,VZJ120,121200303-200508

DARK BLUE M.M.,8R4

sub75742-60202

sub75078-60042

main75742-60201-J1iGRJ12#,KDJ120,TRJ120200508-200608

LT.BLUE ME.,8R6

sub75742-60202

sub75078-60042

main75742-60201-J2iGRJ12#,KDJ120,TRJ120200508-200908

DK.BLUE MC.,8S6

sub75742-60202

sub75078-60042

75743BMOULDING, REAR DOOR OUTSIDE, UPPER REAR RH

main75077-60040iKDJ120,121,RZJ120,VZJ120,121200209-200310

sub75077-60041

main75077-60041iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200310

sub75077-60042

75744AMOULDING, REAR DOOR OUTSIDE, UPPER REAR LH

main75078-60040iKDJ120,121,RZJ120,VZJ120,121200209-200310

sub75078-60041

main75078-60041iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200310

sub75078-60042

75793CPAD, FRONT DOOR OUTSIDE MOULDING, UPPER

main75793-60020iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

75794CPAD, FRONT DOOR OUTSIDE MOULDING, REAR

main75794-60010iKDJ12#,RZJ12#,VZJ12#200209-200302

sub75794-60011

main75794-60011iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200302

75794DPAD, REAR DOOR OUTSIDE MOULDING, RR

main75794-60010iKDJ120,121,RZJ120,VZJ120,121200209-200302

sub75794-60011

main75794-60011iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200302

75798DPAD, FRONT DOOR OUTSIDE MOULDING, REAR

main75798-60020iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

75798EPAD, REAR DOOR OUTSIDE MOULDING, RR

main75793-60020iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209

75851EMOULDING, BODY ROCKER PANEL, RH

main75851-60050iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200908

main75851-60060iKDJ125,RZJ125,TRJ125,VZJ125200209-200908

75852BMOULDING, BODY ROCKER PANEL, LH

main75852-60050iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200908

main75852-60060iKDJ125,RZJ125,TRJ125,VZJ125200209-200908

75869DRETAINER, QUARTER OPENING, LH

main75869-60020iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209

75873BMOULDING, QUARTER WHEEL OPENING, RH

main75077-60050iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303

75874AMOULDING, QUARTER WHEEL OPENING, LH

main75078-60050iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200303

75875ACLIP, FRONT FENDER WHEEL OPENING MOULDING

main75397-35010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200306-200908

main75875-60010iKDJ12#,RZJ12#,VZJ12#200209-200306

sub75395-35070

75879CRETAINER, QUARTER OPENING, RH

main75879-60020iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209

75885ATAPE, MOULDING, NO.6

main75885-60020iKDJ12#,RZJ12#,VZJ12#200209-200302

sub75885-60021

main75885-60021iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200302

75895FTAPE, MOULDING, NO.1

main75895-60050iKDJ12#,RZJ12#,VZJ12#200209-200302

sub75895-60051

main75895-60051iKDJ120200302-200707

75896DTAPE, MOULDING, NO.2

main75896-60030iKDJ120,121,RZJ120,VZJ120,121200209-200302

sub75896-60031

main75896-60031iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200302

75897BTAPE, MOULDING, NO.3

main75897-60050iKDJ120,121,RZJ120,VZJ120,121200209-200302

sub75897-60051

main75897-60051iKDJ120200302-200707

main75897-60060iKDJ125,RZJ125,VZJ125200209-200302

sub75897-60061

main75897-60061iKDJ125,RZJ125,TRJ125,VZJ125200302

75898CTAPE, MOULDING, NO.4

main75898-60030iKDJ120,121,RZJ120,VZJ120,121200209-200302

sub75898-60031

main75898-60031iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200302

75899ATAPE, MOULDING, NO.5

main75899-60040iKDJ120,121,RZJ120,VZJ120,121200209-200302

sub75899-60041

main75899-60041iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200302

76621DMUDGUARD, FRONT FENDER, RH

main76603-60110-F0iGRJ121,TRJ125;KDJ120,TRJ120..05S200211-200908

GRAY ME.,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6T2 ,8R4 ,8R6 ,8S6

main76603-60110-F0iGRJ121,TRJ125;KDJ120,TRJ120..05S200211-200908

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,4R4 ,587 ,6T2 ,8R4 ,8R6 ,8S6

main76603-60110-F0iVZJ120200209-200508

GRAY ME.,070 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6T2 ,8R4

main76603-60110-F0iVZJ120200209-200508

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,587 ,6T2 ,8R4

76622DMUDGUARD, FRONT FENDER, LH

main76604-60110-F0iVZJ120200209-200508

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,587 ,6T2 ,8R4

main76604-60110-F0iVZJ120200209-200508

GRAY ME.,070 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6T2 ,8R4

main76604-60110-F0iGRJ120,KDJ120,TRJ120..08S200211-200908

GRAY ME.,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6T2 ,8R4 ,8R6 ,8S6

main76604-60110-F0iGRJ120,KDJ120,TRJ120..08S200211-200908

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,4R4 ,587 ,6T2 ,8R4 ,8R6 ,8S6

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-60170-F0iVZJ120200209-200508

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,587 ,6T2 ,8R4

main76625-60170-F0iKDJ121,RZJ120,VZJ121200209-200508

GRAY ME.,070 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6T2 ,8R4

main76625-60170-F0iGRJ121;KDJ120,TRJ120..05S200211-200908

GRAY ME.,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6T2 ,8R4 ,8R6 ,8S6

main76625-60170-F0iGRJ121;KDJ120,TRJ120..05S200211-200908

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,4R4 ,587 ,6T2 ,8R4 ,8R6 ,8S6

main76625-60180-F0iKDJ125,RZJ125,VZJ125200209-200508

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,587 ,6T2 ,8R4

main76625-60180-F0iTRJ125200408-200908

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,4R4 ,587 ,6T2 ,8R4 ,8R6 ,8S6

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-60170-F0iKDJ121,RZJ120,VZJ121200209-200508

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,587 ,6T2 ,8R4

main76626-60170-F0iVZJ120200209-200508

GRAY ME.,070 ,1D4 ,1E9 ,202 ,3Q8 ,587 ,6T2 ,8R4

main76626-60170-F0iGRJ120,KDJ120,TRJ120..08S200211-200908

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,4R4 ,587 ,6T2 ,8R4 ,8R6 ,8S6

main76626-60170-F0iGRJ121;KDJ120,TRJ120..05S200211-200908

GRAY ME.,056 ,070 ,1D4 ,1E9 ,202 ,3Q8 ,4R4 ,587 ,6T2 ,8R4 ,8R6 ,8S6

main76626-60180-F0iTRJ125200408-200908

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,4R4 ,587 ,6T2 ,8R4 ,8R6 ,8S6

main76626-60180-F0iKDJ125,RZJ125,VZJ125200209-200508

GRAY ME.,070 ,1D4 ,1E9 ,3Q8 ,587 ,6T2 ,8R4

76924CRETAINER, SIDE MUDGUARD, NO.2

main76924-13020iGRJ12#,KDJ121,RZJ120,TRJ120,VZJ120,121200209-200707

7539260031RETAINER, OUTSIDE MOULDING

main75392-60031

7539360030RETAINER, OUTSIDE MOULDING, NO.2

main75393-60030

7539460030RETAINER, OUTSIDE MOULDING, NO.3

main75394-60030

7539735010CLIP, BACK DOOR MOULDING, NO.3

main75397-35010

7549260020RETAINER, OUTSIDE MOULDING, NO.5

main75492-60020

7549360020RETAINER, OUTSIDE MOULDING, NO.4

main75493-60020

7549535010CLIP, OUTSIDE MOULDING, NO.4

main75495-35010

7586160020MOULDING, QUARTER PANEL BACK, RH

main75861-60020

7586260020MOULDING, QUARTER PANEL BACK, LH

main75862-60020

7586660010MOULDING, REAR QUARTER PANEL, LH

main75866-60010

7586760010MOULDING, FRONT PANEL

main75867-60010

7586860010ORNAMENT, BACK DOOR OUTSIDE, RH

main75868-60010

7588160010SPACER, REAR COMBINATION RIM, INSIDE RH

main75881-60010

7588260010SPACER, REAR COMBINATION RIM, INSIDE LH

main75882-60010

7588360010

main75883-60010

7588460010

main75884-60010

9015960036

main90159-60036

9015960476

main90159-60476

9015960603

main90159-60603

9018906006

main90189-06006

9018906018

main90189-06018

9018906029

main90189-06029

9018906065

main90189-06065

9018906212

main90189-06212

9026904047

main90269-04047

9046707201

main90467-07201

9046709189

main90467-09189

9046710187

main90467-10187

91631J0612

main91631-J0612

80 parts on this diagram · 2 diagrams in section
