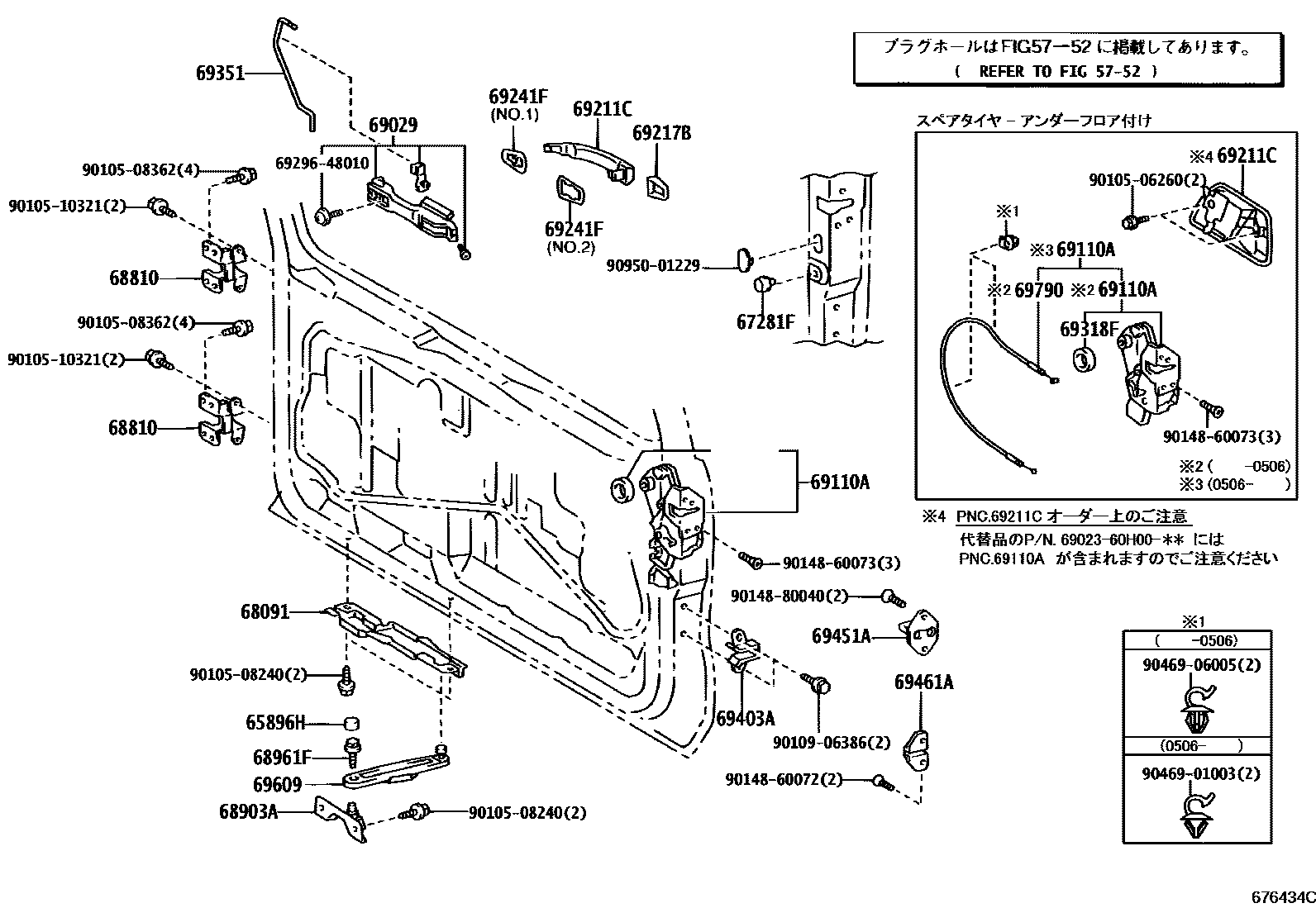

BACK DOOR LOCK & HINGE

5752

65896HCAP, COVER TOP SET BOLT, B

main65896-60020iKDJ120200209-200707

67281FSTOPPER, BACK DOOR, LOWER

main67282-46010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200605

main67282-60010iKDJ120200606-200707

68091RAIL SUB-ASSY, BACK DOOR STAY, RH

main68091-60010iKDJ120200209-200707

68810HINGE ASSY, BACK DOOR, UPPER

main68801-60050iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

sub68801-60051

68903ABRACKET SUB-ASSY, BACK DOOR STAY, RH

main68903-60010iKDJ120200209-200707

68961FBOLT, BACK DOOR STAY

main68961-60020iKDJ120200209-200707

69029FRAME SUB-ASSY, BACK DOOR OUTSIDE HANDLE

main69029-60010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

69110ALOCK ASSY, BACK DOOR W/MOTOR

main69110-60170iKDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200507

sub69110-60171

main69110-60171iGRJ12#,KDJ120,TRJ12#200508-200907

sub69110-60172

main69110-60190iKDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200506

sub69110-60191

main69110-60200iKDJ120,121,TRJ120,VZJ120,121200506-200507

sub69110-60201

main69110-60201iGRJ12#,KDJ120,TRJ120200508-200907

sub69110-60202

69211CHANDLE, BACK DOOR OUTSIDE

main69211-28070-A3iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

WHITE PEARL CS.,070

sub69211-28070

main69211-28070-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

SILVER ME.,1D4

sub69211-28070

main69211-28070-B4iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DK.GRAY M.M.,1E9

sub69211-28070

main69211-28070-C1iKDJ120,VZJ120..08S200209-200707

BLACK,202 ,3Q8 ,587 ,8R4

sub69211-28070

main69211-28070-C1iGRJ120,TRJ120..08S200408-200908

BLACK,202

sub69211-28070

main69211-28070-D3iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DARK RED MC.,3Q8

sub69211-28070

main69211-28070-E1iGRJ12#,KDJ120,TRJ12#200508-200908

BEIGE ME.,4R4

sub69211-28070

main69211-28070-F2iTRJ12#200209-200707

CHAMPAGNE M.M.,587

sub69211-28070

main69211-28070-G0iTRJ12#200209-200707

LT. GREEN M.M.,6T2

sub69211-28070

main69211-28070-J3iKDJ12#,RZJ12#,VZJ12#200209-200707

DARK BLUE M.M.,8R4

sub69211-28070

main69211-28070-J6iGRJ12#,KDJ120,TRJ12#200508-200608

LT.BLUE ME.,8R6

sub69211-28070

main69211-28070-R9iGRJ12#,KDJ120,TRJ12#200508-200908

DK.BLUE MC.,8S6

sub69211-28070

main69023-60010-A1iKDJ120,121,RZJ120,VZJ120,121200209-200307

sub69023-60011

main69023-60010-B0iKDJ120,121,RZJ120,VZJ120,121200209-200307

sub69023-60011

main69023-60010-B2iKDJ120,121,RZJ120,VZJ120,121200209-200307

sub69023-60011

main69023-60010-C0iKDJ120,121,RZJ120,VZJ120,121200209-200307

sub69023-60011

main69023-60010-D0iKDJ120,121,RZJ120,VZJ120,121200209-200307

sub69023-60011

main69023-60010-F0iKDJ120,121,RZJ120,VZJ120,121200209-200307

sub69023-60011

main69023-60010-G1iKDJ120,121,RZJ120,VZJ120,121200209-200307

sub69023-60011

main69023-60010-J0iKDJ120,121,RZJ120,VZJ120,121200209-200307

sub69023-60011

main69023-60011-A1iKDJ120,121,RZJ120,TRJ120,VZJ120,121200307-200505

sub69023-60H00

main69023-60011-B0iKDJ120,121,RZJ120,TRJ120,VZJ120,121200307-200505

sub69023-60H00

main69023-60011-B2iKDJ120,121,RZJ120,TRJ120,VZJ120,121200307-200505

sub69023-60H00

main69023-60011-C0iKDJ120,VZJ120..08S200307-200505

sub69023-60H00

main69023-60011-D0iKDJ120,121,RZJ120,TRJ120,VZJ120,121200307-200505

sub69023-60H00

main69023-60011-F0iKDJ120,121,RZJ120,TRJ120,VZJ120,121200307-200505

sub69023-60H00

main69023-60011-G1iKDJ120,121,RZJ120,TRJ120,VZJ120,121200307-200505

sub69023-60H00

main69023-60011-J0iKDJ120,121,RZJ120,TRJ120,VZJ120,121200307-200505

sub69023-60H00

main69023-60012iKDJ121,VZJ120,121200506-200508

main69023-60012-A0iGRJ120,KDJ120,TRJ120..08S200506-200908

main69023-60012-A1iGRJ12#,KDJ120,TRJ120200506-200908

main69023-60012-B0iGRJ12#,KDJ120,TRJ120200506-200908

main69023-60012-B2iGRJ12#,KDJ120,TRJ120200506-200908

main69023-60012-C0iGRJ120,KDJ120,TRJ120..08S200506-200908

main69023-60012-D0iGRJ12#,KDJ120,TRJ120200506-200908

main69023-60012-E1iGRJ12#,KDJ120,TRJ120200508-200908

main69023-60012-F0iKDJ120,121,TRJ120,VZJ120,121200506-200508

main69023-60012-G1iKDJ120,121,TRJ120,VZJ120,121200506-200508

main69023-60012-J0iKDJ120,121,TRJ120,VZJ120,121200506-200508

main69023-60012-J1iGRJ12#,KDJ120,TRJ120200508-200608

main69023-60012-J2iGRJ12#,KDJ120,TRJ120200508-200908

69217BCOVER, BACK DOOR OUTSIDE HANDLE

main69217-60020-A0iGRJ120,KDJ120,TRJ120..08S200211-200908

WHITE,056

sub69217-60020

main69217-60020-A1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

WHITE PEARL CS.,070

sub69217-60020

main69217-60020-B0iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

SILVER ME.,1D4

sub69217-60020

main69217-60020-B1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DK.GRAY M.M.,1E9

sub69217-60020

main69217-60020-C0iKDJ120,VZJ120..08S200209-200707

BLACK,202 ,3Q8 ,587 ,8R4

sub69217-60020

main69217-60020-C0iGRJ120,TRJ120..08S200408-200908

BLACK,202

sub69217-60020

main69217-60020-D1iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

DARK RED MC.,3Q8

sub69217-60020

main69217-60020-E1iGRJ12#,KDJ120,TRJ12#200508-200908

BEIGE ME.,4R4

sub69217-60020

main69217-60020-F0iKDJ12#,RZJ12#,VZJ12#200209-200707

CHAMPAGNE M.M.,587

sub69217-60020

main69217-60020-G1iKDJ12#,RZJ12#,VZJ12#200209-200707

LT. GREEN M.M.,6T2

sub69217-60020

main69217-60020-J2iTRJ12#200209-200707

DARK BLUE M.M.,8R4

sub69217-60020

main69217-60020-J5iGRJ12#,KDJ120,TRJ12#200508-200608

LT.BLUE ME.,8R6

sub69217-60020

main69217-60020-R5iGRJ12#,KDJ120,TRJ12#200508-200908

DK.BLUE MC.,8S6

sub69217-60020

69241FPAD, DOOR OUTSIDE HANDLE

main69241-28060iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

main69242-33030iGRJ12#,KDJ120,TRJ12#200705-200908

main69242-60030iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200704

69318FSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

69351ROD, BACK DOOR LOCK CONTROL, UPPER

main69378-60030iGRJ12#,KDJ121,125,RZJ12#,TRJ12#,VZJ12#200209-200707

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-60011iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

69451APLATE, DOOR LOCK STRIKER

main69410-60010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

69461ASTOPPER, BACK DOOR SIDE MALE

main69461-60010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

69609LINK SUB-ASSY, BACK DOOR, LOWER

main69609-60010iKDJ120200209-200707

69790CONTROL ASSY, BACK DOOR LOCK

main69790-60100iKDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200506

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9010506260

main90105-06260

9010508240

main90105-08240

9010508362

main90105-08362

9010510321

main90105-10321

9010906386

main90109-06386

9014860072

main90148-60072

9014860073

main90148-60073

9014880040

main90148-80040

9046901003

main90469-01003

9046906005

main90469-06005

9095001229

main90950-01229

31 parts on this diagram · 1 diagram in section
