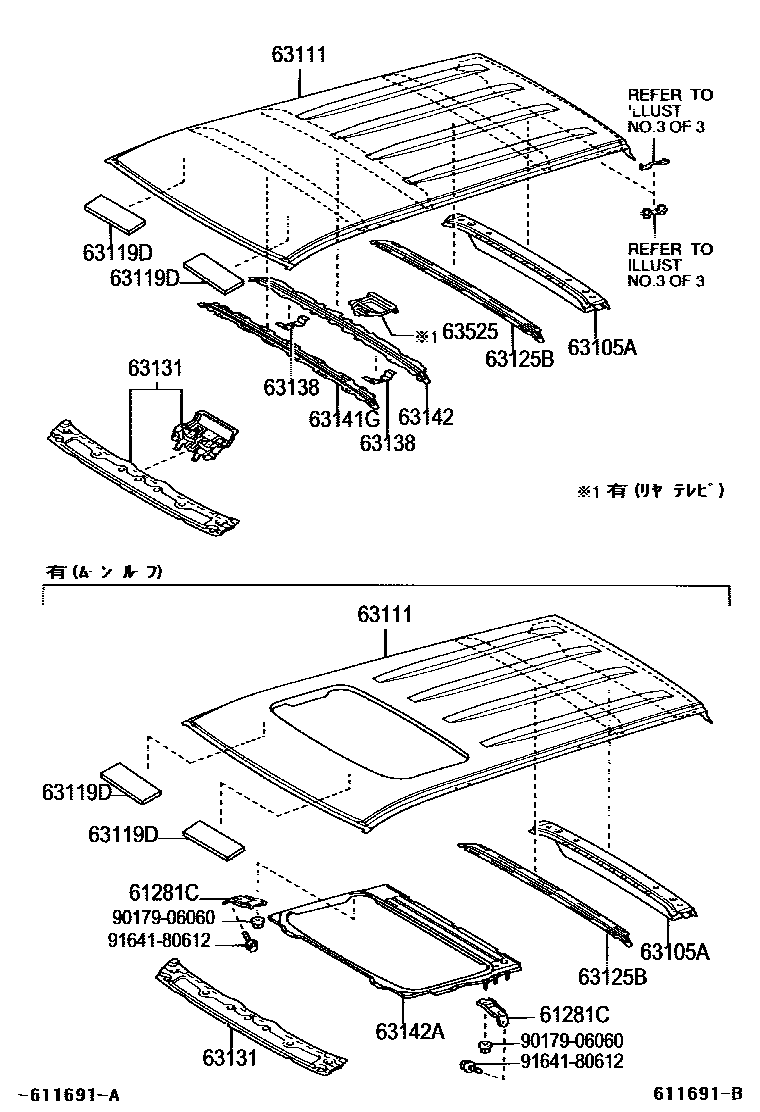

ROOF PANEL & BACK PANEL

0001 1�-� ���� 0002 1�-� �-� 0003 1�-� �-�

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60240iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121..08S200209-200908

main63105-60250iKDJ120,125,RZJ12#,TRJ12#,VZJ125..05S200209-200908

63111PANEL, ROOF

main63111-60480iKDJ120200209-200707

main63111-60530iKDJ125,RZJ125,TRJ125,VZJ125200209

63119DPAD, ROOF PANEL, NO.1

main63119-35010iKDJ120200209-200707

63125BREINFORCEMENT, ROOF PANEL, FRONT

main63125-60040iKDJ120200209-200707

main63125-60050iKDJ125,RZJ125,TRJ125,VZJ125200209

63131PANEL, WINDSHIELD HEADER, OUTER

main63102-60080iKDJ12#,RZJ12#,VZJ12#200209-200311

sub63102-60081

main63102-60081iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200311-200908

63138BRACKET, DOME LAMP, NO.2

main63138-12011iKDJ120200209-200707

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60080iKDJ120200209-200707

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-60040iKDJ120200209-200707

63142AREINFORCEMENT, ROOF PANEL, NO.2

63525BRACKET, TELEVISION RACK, NO.1

main63525-60010

9017906060

main90179-06060

9164180612

main91641-80612

13 parts on this diagram · 3 diagrams in section
