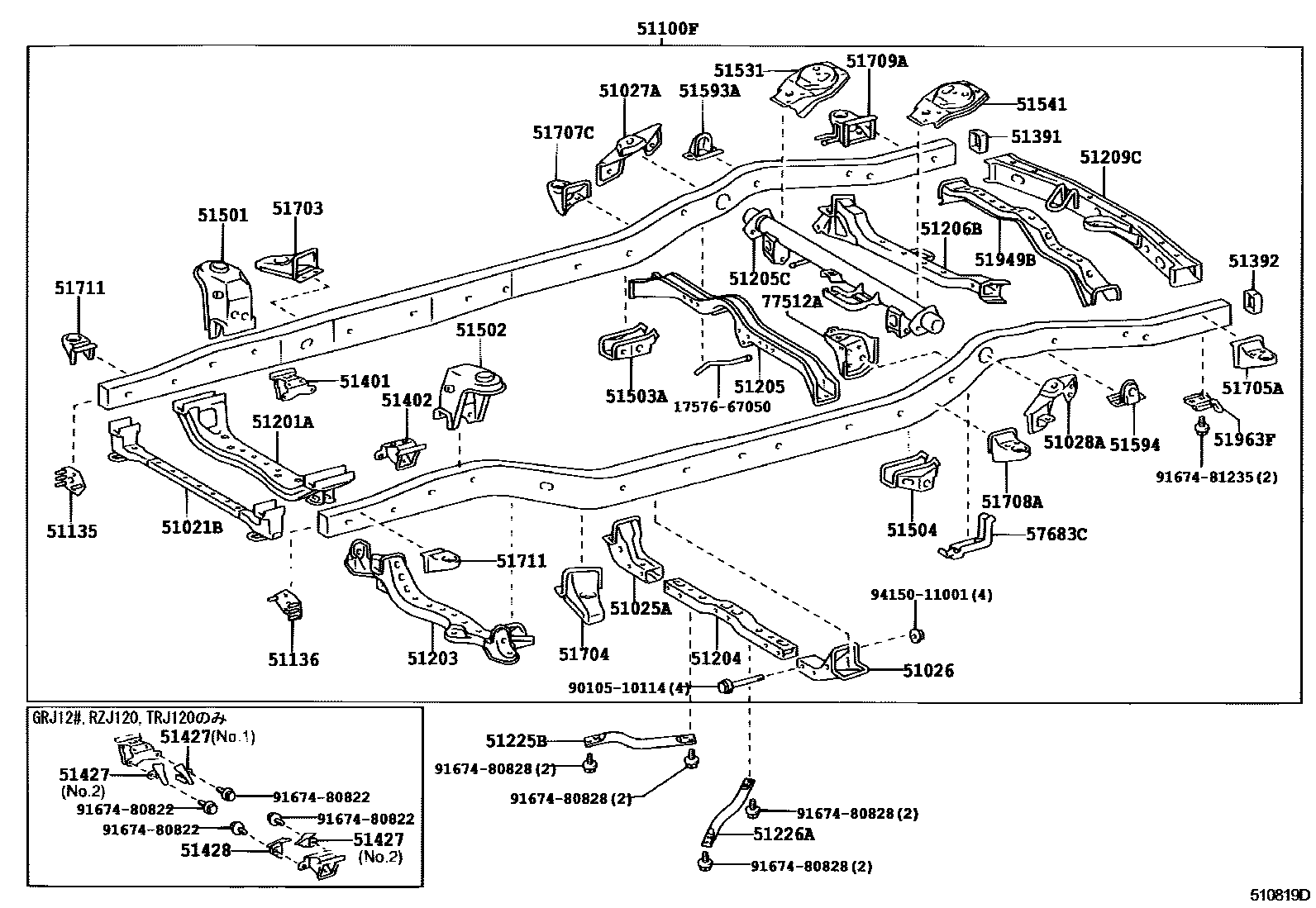

FRAME

0001 1 0002 1 0003 1 0004 1

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-35070iKDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200507

sub51021-35071

main51021-35071iGRJ12#,KDJ120,TRJ12#200508-200908

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-35030iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

sub51025-60030

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-35030iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

sub51026-60030

51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH

main51027-35020iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

main51028-35020iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51100FFRAME SUB-ASSY

main51001-3M430iRZJ120,TRJ120200209-200908

sub51001-3M431

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53885-60030

sub53886-60030

main51001-3M440iVZJ120,121200209-200508

sub51001-3M441

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53886-60030

main51001-3M450iGRJ12#200508-200908

sub51001-3M451

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53886-60030

main51001-3M480iKDJ120,121200211-200707

sub51001-3M481

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53886-60030

main51001-6B400iRZJ120,TRJ120200209-200908

sub51001-6B401

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53885-60030

sub53886-60030

main51001-6B440iVZJ120,121200209-200508

sub51001-6B441

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53886-60030

main51001-6B460iGRJ12#200508-200908

sub51001-6B461

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53886-60030

main51001-6B490iKDJ120,121200211-200707

sub51001-6B491

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53886-60030

main51001-6B540iRZJ125,TRJ125200209-200908

sub51001-6B541

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53885-60030

sub53886-60030

main51001-6B550iVZJ125200209-200508

sub51001-6B551

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53886-60030

main51001-6B570iKDJ125200211-200508

sub51001-6B571

sub48811-60370

sub48815-60310

sub48824-60190

sub48829-60120

sub53886-60030

51135PLATE, FRAME SIDE RAIL, RH

main51135-35060iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51136PLATE, FRAME SIDE RAIL, LH

main51136-35070iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-35340iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-35470iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-35370iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

sub51203-60270

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-35830iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200908

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-35280iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200908

sub51205-35281

main51205-60190iKDJ125,RZJ125,TRJ125,VZJ125200209-200908

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-35060iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200908

main51206-35070iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

sub51206-60060

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-35210iKDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200502

sub51209-35211

main51209-35211iGRJ12#,KDJ120,121,TRJ120,VZJ120,121200503-200908

main51209-35220iKDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200502

sub51209-35221

main51209-35221iGRJ12#,KDJ12#,TRJ12#,VZJ12#200503-200908

sub51209-35222

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-35040iGRJ12#,VZJ12#200209

main51225-35050iKDJ120200209-200707

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-35060iGRJ12#,VZJ12#200209

main51226-35070iKDJ120200209-200707

51391GUSSET, FRAME REAR CROSSMEMBER, RH

main51391-35090iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51392GUSSET, FRAME REAR CROSSMEMBER, LH

main51392-35080iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-35390iGRJ12#,RZJ12#,TRJ12#200209-200908

main51401-35400iVZJ12#200209-200508

main51401-35420iKDJ12#200211-200707

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-35340iGRJ12#,RZJ12#,TRJ12#200209-200908

main51402-35350iVZJ12#200209-200508

main51402-35370iKDJ12#200211-200707

51427REINFORCEMENT, ENGINE FRONT MOUNTING, RH

main51427-35120iGRJ12#,RZJ12#,TRJ12#200209

sub12312-31010

main51427-35130iKDJ12#200211-200707

sub12312-30010

main51427-35140iGRJ12#,RZJ12#,TRJ12#200209

sub12311-31220

51428REINFORCE, ENGINE MOUNTING, REAR

main51428-35090iGRJ12#,RZJ12#,TRJ12#200209

sub12315-31200

main51428-35100iKDJ12#200211-200707

sub12316-30010

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-35140iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-35140iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-35030iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200511

sub51503-35031

main51503-35031iGRJ12#,KDJ120,TRJ120200512-200908

sub5150C-60030

main51503-60010iKDJ125,RZJ125,TRJ125,VZJ125200209-200511

sub51503-60011

main51503-60011iTRJ125200512-200908

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-35020iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200511

sub51504-35021

main51504-35021iGRJ12#,KDJ120,TRJ120200512-200908

sub5150D-60020

main51504-60010iKDJ125,RZJ125,TRJ125,VZJ125200209-200511

sub51504-60011

main51504-60011iTRJ125200512-200908

51531BRACKET, REAR SPRING SUPPORT, RH

main51531-35030iKDJ120,TRJ12#200209-200509

sub51531-35031

main51531-35031iGRJ12#,KDJ120,TRJ12#200509-200908

51541BRACKET, REAR SPRING SUPPORT, LH

main51541-35030iKDJ120,TRJ12#200209-200509

sub51541-35031

main51541-35031iGRJ12#,KDJ120,TRJ12#200509-200908

51593ABRACKET, REAR SPRING BUMPER, RH

main51593-35030iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51594BRACKET, REAR SPRING BUMPER, LH

main51594-35030iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-35180iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-35160iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3

main51706-35060iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-35090iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-35090iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING

main51709-35040iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51711BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH

main51711-35190iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

51949BCROSSMEMBER, SPARE WHEEL CARRIER

main51949-35010iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200908

51963FHOOK, TRANSPORT

main51963-35110iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209-200908

sub51095-60030

57683CBRACKET, FUEL TANK MOUNTING

main57683-35030iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200908

sub57683-35031

77512ABRACKET, FUEL TANK, REAR

main77512-35120iGRJ12#,KDJ120,121,RZJ120,TRJ120,VZJ120,121200209-200908

sub77512-35121

1757667050BRACKET, MUFFLER CLAMP

main17576-67050

9010510114

main90105-10114

9167480822

main91674-80822

9167480828

main91674-80828

9167481235

main91674-81235

9415011001

main94150-11001

48 parts on this diagram · 4 diagrams in section
