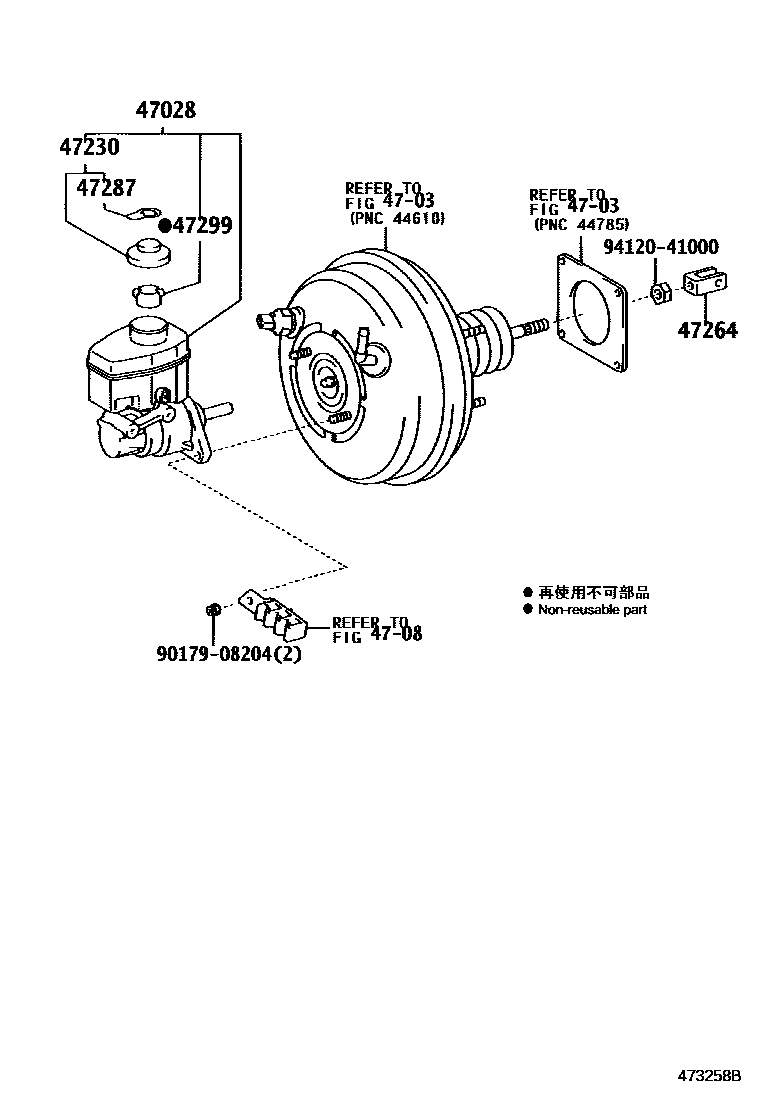

BRAKE MASTER CYLINDER

0001 1 0002 1��(ABS & VSC & ACTIVE TRC) 0004 1��(ABS & VSC & ACTIVE TRC) 0006 1��(ABS & VSC & ACTIVE TRC)

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-60030iKDJ120200209-200707

4703

4708

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iKDJ120200209-200707

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iKDJ120200209-200707

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iKDJ120200209-200707

9017908204

main90179-08204

9412041000

main94120-41000

9 parts on this diagram · 4 diagrams in section
