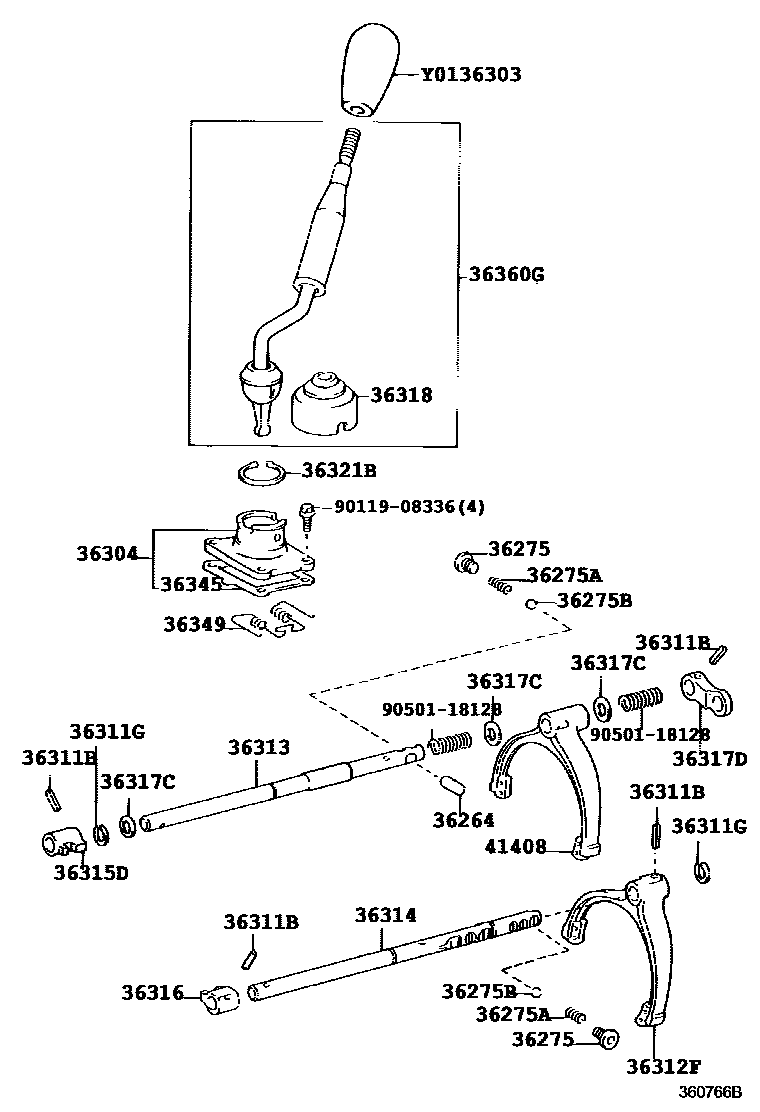

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1��(ABS & VSC & ACTIVE TRC) 0004 1��(ABS & VSC & ACTIVE TRC)

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020iGRJ12#,KDJ121,125,RZJ12#,TRJ12#,VZJ12#200209-200707

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014iGRJ12#,KDJ121,125,RZJ12#,TRJ12#,VZJ12#200209-200408

main90341-12014iKDJ120200209-200707

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116iKDJ120,125,VZJ120..RX,TX200209-200408

main90501-16116iGRJ121,KDJ121,125,VZJ121,125..RZ,TZ200209-200707

36275BBALL, SHIFT DETENT

main90360-10003iGRJ121,KDJ121,125,VZJ121,125..RZ,TZ200209

main90360-10003iKDJ120,125,VZJ120..RX,TX200209-200408

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-60290-C0iGRJ120,KDJ120,TRJ120..08S200608-200908

main36303-60290-C0iGRJ120,TRJ120,VZJ120..08S200408-200608

main36303-60290-C0iGRJ120,KDJ120,TRJ120..08S200608-200908

main36303-60290-C0iGRJ121,KDJ121,125,VZJ121,125..RZ,TZ200209-200908

BLACK,TRIM0#,1#

main36303-60290-C0iGRJ121,KDJ121,125,VZJ121,125..RZ,TZ200209-200908

main36303-60300-C0iGRJ120,KDJ120,125,RZJ12#,TRJ12#,VZJ120..RX,TX200209-200908

BLACK,TRIM0#,1#

sub36303-60300

main36303-60310-C0iKDJ120,125,VZJ120..RX,TX200209-200408

main36303-60310-C0iGRJ121,KDJ121,125,VZJ121,125..RZ,TZ200209-200908

main36303-60320-C0iKDJ120,125,VZJ120..RX,TX200209-200408

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-60040iKDJ12#,RZJ12#,TRJ12#200209-200908

main36304-60100iGRJ12#,VZJ12#200209-200908

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001iKDJ121,125,RZJ12#,TRJ12#200209-200707

main90254-05001iVZJ120200209-200508

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iKDJ120200209-200707

main90520-13002iKDJ120,125,VZJ120..RX,TX200209-200408

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-60190iKDJ120200209-200707

36313SHAFT, TRANSFER FRONT DRIVE SHIFT

main36313-60140iGRJ12#,VZJ12#200209

main36313-60150iKDJ120200209-200707

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60090iVZJ120200209-200408

main36314-60100iKDJ121,125..RZ,TZ200211-200508

main36314-60120iGRJ12#,VZJ12#200209

main36314-60130iKDJ120200209-200707

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36315-60030iKDJ120200209-200707

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-35040iKDJ120,125..RX,TX200211-200508

main36316-60010iKDJ121,125,RZJ12#,TRJ12#200209-200707

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-35020iKDJ120200209-200707

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-60020iKDJ120200209-200707

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iGRJ12#,KDJ12#,RZJ12#,TRJ12#,VZJ12#200209

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35040iKDJ12#,RZJ12#,TRJ12#200209

36349SPRING, TRANSFER SELECT RETURN

main36349-60010iGRJ12#,VZJ12#200209-200908

main36349-60020iKDJ12#,RZJ12#,TRJ12#200209-200908

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-60770iGRJ12#,KDJ12#,VZJ12#200209

main36360-60790iRZJ12#,TRJ12#200209

main36360-6A040iKDJ120,125,VZJ120..RX,TX200209-200408

41408FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK

main41408-60021iKDJ120,125,VZJ120..RX,TX200209-200408

main41408-60030iKDJ120200209-200707

9011908336

main90119-08336

9050118128

main90501-18128

23 parts on this diagram · 4 diagrams in section
