TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

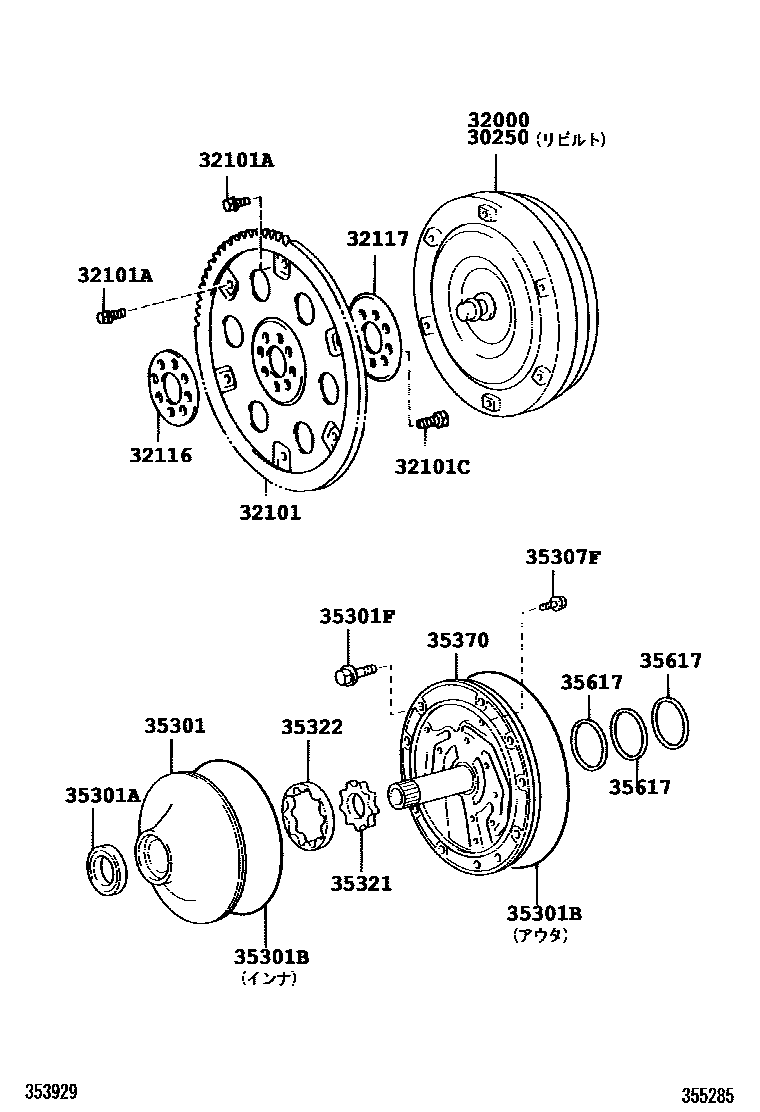

Parts diagram
30250CONVERTER ASSY, TORQUE, REBUILT
main30250-26080i200408-200908
sub30250-60320
main30250-60190i200209-200508
main30250-60220i200211-200707
main30250-71020i200508-200908
32000CONVERTER ASSY, TORQUE
main32000-26080i200209-200908
sub32000-60320
main32000-60190i200209-200508
main32000-60220i200211-200707
main32000-71020i200508-200908
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-26010i200209
main32101-35010i200209-200508
main32101-60060i200508
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90105-10413i200211-200707
main90105-10414i200211-200502
main90105-10546i200503-200707
main90119-09026i200209
main90119-09027i200209
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i200209-200508
main90105-10276i200209
main90105-10276i200806
main90105-10543i200508
main90105-13010i200211-200707
main90105-A0099i200806
32116SPACER, DRIVE PLATE, FRONT
main32116-26010i200209
main32116-32020i200209-200508
main32116-60050i200508
32117SPACER, DRIVE PLATE, REAR
main32117-26010i200209
main32117-32020i200209-200508
main32117-60050i200211-200707
main32117-60060i200508
35301BODY SUB-ASSY, FRONT OIL PUMP
main35301-35010i200209-200508
main35301-50020i200211-200908
main35301-60030i200508-200908
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38029i200209-200210
sub90311-38020
main90311-38083i200508-200908
main90311-38087i200210-200908
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99033i200209-200908
main90301-99139i200508-200908
main90301-99148i200508-200908
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08091i200209-200908
main90105-08451i200610-200908
main91511-K0840i200508-200610
35307FBOLT (FOR STATOR SHAFT)
main90148-60079i200508-200908
35321GEAR, FRONT OIL PUMP DRIVE
main35321-12020i200209-200508
main35321-12030i200209-200508
main35321-12040i200209-200508
main35321-12050i200209-200508
main35321-12060i200209-200508
main35321-30030i200211-200908
main35321-30040i200211-200908
main35321-30050i200211-200908
main35321-30060i200211-200908
main35321-30070i200211-200908
main35321-50010i200508-200908
main35321-50020i200508-200908
main35321-50030i200508-200908
main35321-50040i200508-200908
main35321-50050i200508-200908
main35321-50060i200508-200908
main35321-50070i200508-200908
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-12010i200209-200508
main35322-12020i200209-200508
main35322-12030i200209-200508
main35322-12040i200209-200508
main35322-12050i200209-200508
main35322-30020i200211-200908
main35322-30030i200211-200908
main35322-30040i200211-200908
main35322-30050i200211-200908
main35322-30060i200211-200908
main35322-50010i200508-200908
main35322-50020i200508-200908
main35322-50030i200508-200908
main35322-50040i200508-200908
main35322-50050i200508-200908
main35322-50060i200508-200908
main35322-50070i200508-200908
35370SHAFT ASSY, STATOR
main35370-30031i200209-200508
main35370-30060i200211-200908
main35370-50030i200508-200908
35617RING, CLUTCH DRUM OIL SEAL
main35617-30020i200209-200908
main35617-50030i200709-200908
main35617-60020i200508-200709

16 parts on this diagram · 4 diagrams in section
